High Frequency Transformer Laser Peeling Machine /copper wire stripping machine for EF EE transformers
High Frequency Transformer Laser Peeling Machine /copper wire stripping machine for EF EE transformers
High Frequency Transformer Laser Peeling Machine /copper wire stripping machine for EF EE transformers
High Frequency Transformer Laser Peeling Machine /copper wire stripping machine for EF EE transformers
High Frequency Transformer Laser Peeling Machine /copper wire stripping machine for EF EE transformers
High Frequency Transformer Laser Peeling Machine /copper wire stripping machine for EF EE transformers
Specifications
Brand Name :
Leadboom
Model Number :
LB-CS
Certification :
CE FDA
Place of Origin :
China
MOQ :
1set
Price :
USD8800-26000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
7-10 work days
Packaging Details :
Standard export wooden box
Material :
Wire or Cable
Model :
LB-CS60
Color :
Blue
Stripping Speed :
≤7000mm/s
Cooling system :
Water Cooling
Dimension :
1200*620*1500mm
Description

High Frequency Transformer Laser Peeling Machine / Laser Wire Stripping Machine for EF EE transformers

Product Overview

LB-CS Laser Stripping(peeling) Machine is professional designed for stripping three-layer insulated wires in transformer industries, with good results, fast speed, stable performance, to meet the needs for long time production.

Technical Features

1. The core components adopted USA imported RF metal laser source, with long service life, the cavity always can be used.

2. Stripping with high precision, PIN feet stripping can be finished in one time within working area, no damage on conductors.

3. Stripping with fast speed, it only takes 0.2s for each Pin, can be equipped with automatic production line.

4. Immersing tin with fast speed after stripping, it can prevent materials damages from long time immersing tin with high temperature..

5. High electro-optical conversion efficiency, the whole power consumption is less then 800W, without consumable costs,low carbon and environmental protection.

6. Controlled by computer, professional stripping control software that stripping shape, position,size, power, speed can be set freely, also can operate with multiple drawings.

7. The equipment can be widely used in different materials, also can strip on and electronic wires.

8. Professional low noise and strong smoke exhausting device is optional.

Technical Parameters

Model LB-CS60 LB-CS100
Laser Power 0~60w 0~100w
Laser wavelength 10640nm 10640nm
Pulse frequency ≤50kHZ ≤50kHZ
Stripping scope 175×175mm/210×210mm 210×210mm/300×300mm
Speed ≤7000mm/s ≤7000mm/s
minimum line width 0.06mm 0.06mm
Repeated precision ±0.003mm ±0.003mm
Cooling system water-cooled
Power supply AC220V/50HZ AC220V/50HZ
power consumption ≤2.0KW ≤3.0KW
Dimension 1200mm×620mm×1500mm

1400mm×650mm×1700mm

Product application

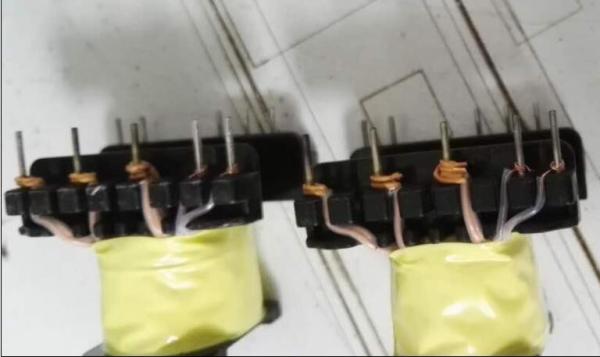

Three-layer insulating wires, wire, Electronic wires, Filters, Chokes, Bobbins, Switching transfomers in transformer industries.
