Fully Automatic Wire Coil Winding Machine 2-8 Cable Tie Twist 940×500×500 Mm
Fully Automatic Wire Coil Winding Machine 2-8 Cable Tie Twist 940×500×500 Mm
Specifications
Brand Name :
RKENS
Model Number :
RS-45
Place of Origin :
china
MOQ :
one set
Price :
negotiable
Packaging Details :
Carton box or wooden box
Delivery Time :
5-7 days
Payment Terms :
TT
Supply Ability :
300sets/month
Name :
Automatic Cable Counting Cutting Winding And Binding Machine
Usage :
Count, Cut, Wind And bind cables
Power supply :
220V/110V
Speed :
1-4 cycle/s
Wind Diameter :
200mm, 250mm, 300mm, can be customized
Tie width :
Max 4mm
Description

Automatic Cable Counting Cutting Winding And Binding Machine

Intro:

The is an automatic machine for cable winding and binding. Also it can count and cut cables to required length, then wind and bind it automatically. Works for long cables winding and binding, such as 5 meters, 10meters, 30 meters. It is programmable, the winding circles, cable length, tie length can be set as per needs.

Suitable:

This cable winding binding machine can work for AC power cord, DC power cord, USB cable, video cable,high-definition cable.
The tie should be plastic tie with iron wire inside. Max 4MM width
Wind diameter can be customized, such as 200mm, 250mm, 300mm
Max binding diameter: 45MM

Parameter:

Model RS-45D RS-45
Function Count,sort,wind

Count,sort,wind,

bind
Winding range Customized inner core Customized inner core
Suitable wire 1-8mm 1-8mm
Power supply

AC220/110V

50/60HZ

AC220/110V

50/60HZ
Winding load weight 1.5KG 1.5KG
Binding diameter No 18-45mm
Size 700x750x360mm 1100x440x430mm
Weight 80KG 90KG

Features:

1. Can count, cut, wind and bind cables. It can wind cables in good order.
2. Programmable, can set winding circles, cable length, tie length and other parameters easily.
3. We can customize the round winding disk and binding mouth as per winding diameter and binding diameter.
4. Full autoamtic machine, fast count and wind cables.
5. Easy to use, high efficiency.

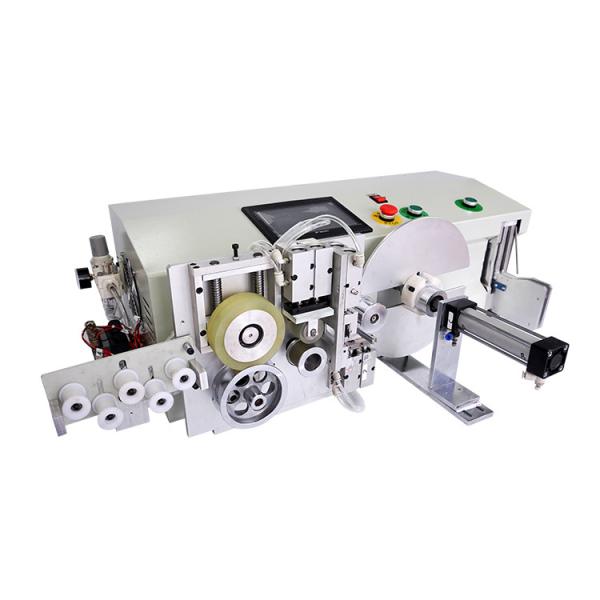

Pictures of Automatic Cable Counting Cutting Winding And Binding Machine

Fully Automatic Wire Coil Winding Machine 2-8 Cable Tie Twist 940×500×500 Mm
Fully Automatic Wire Coil Winding Machine 2-8 Cable Tie Twist 940×500×500 Mm
