V Scored PCB Depaneling Machine 220V Pcb Separator Machine 400mm Cutting Path
V Scored PCB Depaneling Machine 220V Pcb Separator Machine 400mm Cutting Path
Specifications
Brand Name :
RKENS
Model Number :
YS-805A
Place of Origin :
china
Name :
V-Scored PCB Separator , Circuit Board PCB Depanel Machine
Usage :
PCB Depanel
PCB length :
Within 400MM. Can be customized for longer pcbs
Power Supply :
220V/110V
MOQ :
one set
Price :
negotiable
Packaging Details :
Carton box or wooden box
Delivery Time :
5-7 days
Payment Terms :
TT
Supply Ability :
300sets/month
Description

V-Scored PCB Separator , Circuit Board PCB Depanel Machine

Intro:

PCB depanel machine works for v-scored pcb separating. There is one lower linear blade and one uppder circular blade, put v-cut on the lower linear blade, and upper circular blade to separate PCBs. Fast speed and accurate cut without furr. No damge to PCB.

Optional feeding belt and safety light.

Suitable:

The PCB depaneling machine is suitable for V-cut pcbs within 400MM length.

Our PCB depanel machine models:

YS-805A for V-cut pcb within 400MM length

YS-805B for V-cut pcb within 600MM length

YS-805C for V-cut pcb within 900mm length

RS-720 for V-cut pcb with unlimited length

Parameter

Model YS-805A
Model Blade Motion Upper Circular Blade Moving Automatically
Cutting path 400mm
cutting thickness 0.5mm-3.2mm
cutting point 0-100-200-300-400mm
Cutting speed 300mm/sec or 500mm/sec
Upper circular blade diameter 125mm,cutting point angle 26-28'
Lower blade 430mm long,max cutting length 400mm,cutter point angle 26-28'
Drive mode Micro stepping motor + precise linear guaidway
Voltage 220v/110v,50/60hz,250w
Warranty

Three years for the pc board

One year for unit machine
Weight 60kg
Size 700*550*460mm

Features:

1.Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2.Effectively reduce stress and prevent solder point chap from PCB cutting.
3.PCB cutting speed can be adjusted by the rotary knob
4.PCB cutting stroke can be set free and setting value can be showed in LCD
5.Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out
6.Optional PCB conveyor belt to remove finished PCB cut

PCB depaneling machine will be packed by wooden case

Picture of V-Scored PCB Separator , Circuit Board PCB Depanel Machine

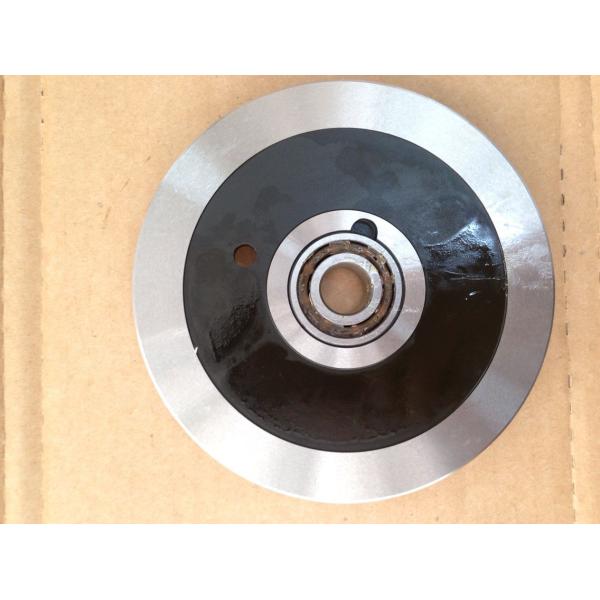

PCB depanel machine cutting blade

V Scored PCB Depaneling Machine 220V Pcb Separator Machine 400mm Cutting Path

V Scored PCB Depaneling Machine 220V Pcb Separator Machine 400mm Cutting Path
