RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length
RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length
RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length
RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length
Specifications
Brand Name :
RKENS
Model Number :
RS-901D
Place of Origin :
china
Delivery Time :
5-7 days
Packaging Details :
Carton box or wooden box
MOQ :
one set
Price :
negotiable
Payment Terms :
TT
Supply Ability :
300sets/month
Name :
RS-901D Automatic Electrolytic Capacitor Radial Lead Cutting Forming Machine
Usage :
Cut/trim radial capacitor lead
Type :
Automatic Machine with feeder bowl
Suitable for :
10-16MM electrolytic capacitor
Shortest length :
3.0MM
Efficiency :
4000-8000PCS/H
Description

RS-901D Automatic Electrolytic Capacitor Radial Lead Cutting Forming Machine

Intro:

RS-901D is special customized machine for 10-16MM body diameter E-caps. Body height should be within 25MM. For bigger size, we can modify the machine a little. This radial lead cutting machine can automatic feed and trim capacitor leads to shortest 3.0MM. For different length, operator just need to rotate the shaft to adjust the cut length. With trolly, customer can move the machine easily.

Usage:

  • Cut Electrolytic Capacitor lead to same length. See picture below
  • E-Capacitor body diameter should be within 10-16MM
  • E-Capacitor body height should be within 25MM
  • Feeder bowl can be customized according to customers's components and size.

Electrolytic capacitor lead Cutting Machine Usage:

RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length

Lead Cutting Machine Specification:

Model RS-901D
Voltage AC 220V/110V 50hz 60Hz
Size 1050 x 1100 x 650mm
Weight 165KG
Efficiency 6000-8000 PCS/H
Package Wooden case

Features:

1. Machine is for cutting radial components lead foot ,such as bulk capacitor, inductor,LED and etc.

2. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;

3. Its cutting way is very special. Made of steel materials imported from Japan, its cutters are durable and easy to adjust.
4. It works accurately with a minimum of 3mm. (If you want the machine more accurate, we can customize it for you.)
5. Electric-driven as well as pneumatic-driven, it feeds stably and quickly.
6. The lead cutting machine and the feeding tray can work either jointly or individually.
7.The trolley makes machine move easily

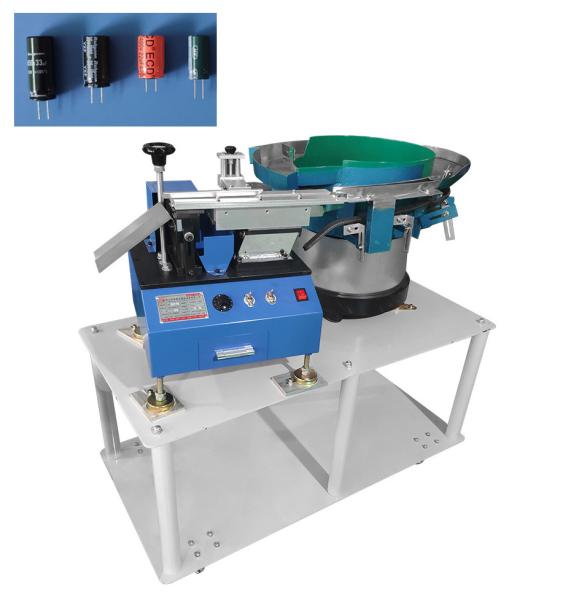

Radial Lead cutting samples

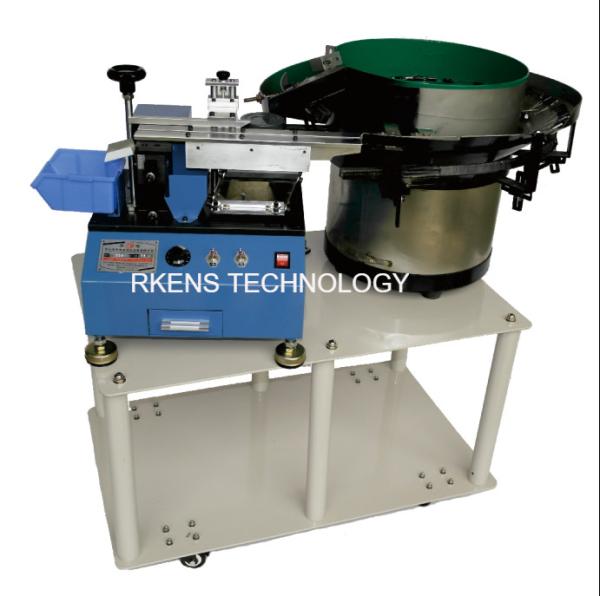

Machine picture display

Special Feeding Methord For Big Capacitor

RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length

Pressing Parts to avoild different leg length cutting

RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length

Knife Holder- Fix static blade

RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length

Radial Lead Cutting Samples

RS-901D Automatic 10-16mm Electrolytic Capacitor Cutting Machine 3.0MM Shortest Length

Welcome to contact for our automatic electrolytic capacitor lead trimming machine.
