LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection
LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection
Specifications
Brand Name :
RKENS
Model Number :
RS-909
Place of Origin :
china
Name :
LED Lead Cutting Forming Machine With Polarity Detection Feature
Suitable :
Cutting and Forming LED lead
Available LED :
3MM or 5MM LED
Function :
Cutting, Bending, Kinking,etc
MOQ :
one set
Price :
negotiable
Packaging Details :
Carton box or wooden box
Delivery Time :
5-7 days
Payment Terms :
TT
Supply Ability :
300sets/month
Description

RS-909 LED Lead Cutting Forming Machine With Polarity Detection Feature

Intro:

RS-909 is a customized machine for 3MM and 5MM LED lead cutting and forming. One machine is only for one type of LED and one type forming shape. We can customize forming tool according to different forming shape. This machine can automatically feed and form LEDs. The speed can reach 3300-3600pcs/hour.

It can detect polarity in two ways:

  • 1. Feeder bowl itself can detect LED leg length and feed them correctly, for examples, all long legs in front.
  • 2. There is a sensor which can detect polarity and check if LED comes in correct polarity. Only right LED will move to the forming tool.

Suitable:

  • Cut LED lead to different length, Bend LED lead to 180 ° or 90 °, kink, etc
  • Suitable for: Φ 3 and Φ5 LED
  • Can detect +/- (positive and negative) pole

Specification:

Voltage
220V/110V AC60HZ/50HZ (or specify)
Application
LED lead Cutting and Forming
Effectivity
3300 to 3600 pcs per hour
Feature
Auto feeding , auto distinguish on positive and negative pole
Forming Angles
Multi angles, such as 90 degree ,180 degree etc
Remark
one machine only use for 1 size LED
Blade Life
6 months (up to specific use state)
Warranty
One year

Forming samples

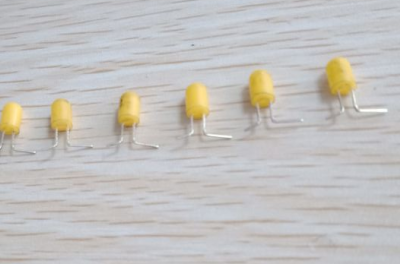

Bending LED lead to 90 degrees

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

Cutting LED leads to different length

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

LED lead kinking

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

Bending LED to 90 degrees in two direction

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

LED lead forming machine pictures

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

Can detect polary and feed LED correctly

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

Second place to detect LED pority

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

If polarity is not correct, LED will fall down

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

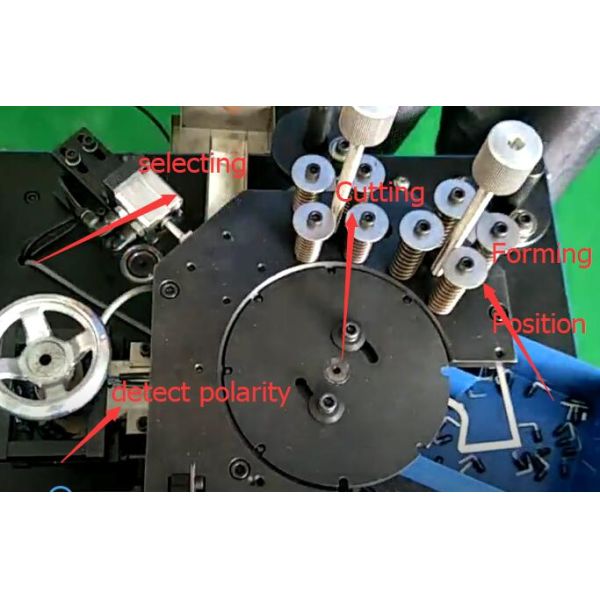

Machine Can detect polarity, select correct LED, cut legs and form LED lead

LED Radial Lead Forming Machine Resistor Lead Bender With Polarity Detection

Welcome to contact for more information about LED lead forming machine
