Desktop Electric Auto Screwdriver Machine Programmable LCD Touch Panel
Desktop Electric Auto Screwdriver Machine Programmable LCD Touch Panel
Desktop Electric Auto Screwdriver Machine Programmable LCD Touch Panel
Desktop Electric Auto Screwdriver Machine Programmable LCD Touch Panel
Specifications
Brand Name :
RKENS
Model Number :
YS-L301
Certification :
CE
Place of Origin :
china
Name :
Desktop Screw Driving And Feeding Robot Machine , Feed And Tighten Screws
Working platform :
300(X)x300(Y)x100(Z), Can be customized
Power Supply :
220V/110V 50HZ/60HZ
Language :
English
Usage :
Feed And Tighten Screws
Air pressure :
2-3KGF/C ㎡
MOQ :
one set
Price :
negotiable
Packaging Details :
Carton box or wooden box
Delivery Time :
5-7 days
Payment Terms :
TT
Supply Ability :
300sets/month
Description

Desktop Screw Driving And Feeding Robot Machine , Feed And Tighten Screws

Intro:

Screw driving and feeding machine is a fully automatic desktop robot. Screw Tightening Robot includes an electric screwdriver and automatic screw feeder unit. Just prepare your workpiece/jigs and you are ready to begin production. It can automatic feed screws and tighten screws.

  • Engligh langauge
  • Programmable LCD touch panel
  • 220V/100V power supply
  • Customized working platform

Suitable:

The screw feeding and tightening machine is used in various operations such as, tightening of screws in various products and various typer of screw.. The screw can be M2-M6 screws, L≥1.2 D (D = screw head diameter, L = length of screw thread) conforms to the condition screw are available this desktop blowing type automatic locking screw machine.

Parameter:

Model YS-L301
Route Scale (can be customized)

X:300mm

Y:300mm

Z:100mm
Move Speed

X:500 mm /sec

Y:500 mm /sec

Z:800 mm /sec
Voltage 220V 50Hz
Power 300W
Air Source ≥8Kg
Outer Size W*H*L 550*770*620mm
Weight 70Kg
Data Input Mode Teaching or File Input
Human- Computer Interface 5.7 inch touch screen and special key

Features:

1, Full-automatic screw driver mainly consists of automatic feeding system,X-Y-Z mobile platform,controlling test system and screw screw lock system.

2, The screw driver moves to the set coordinates, the screw system blows screws to bit head, Z axis presses down and lock the screw into products.

3, Screw system automatically feeds another screw while Z axis lifts up,thus complete whole product screw lock process.

4, When replacing different product,only need to change jig and adjust to corresponding working system.

5, Automatic feeding system adopts inductive control to feed automatically, thus avoid screw repetition and block.

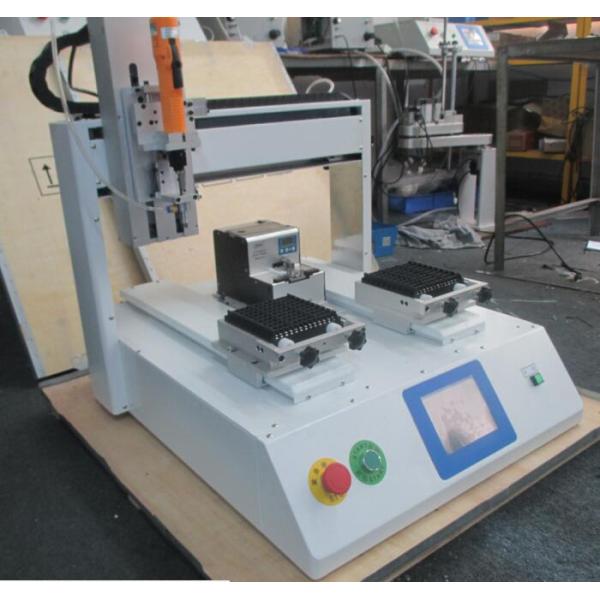

Pictures of Desktop Screw Driving And Feeding Robot Machine , Feed And Tighten Screws

Desktop Electric Auto Screwdriver Machine Programmable LCD Touch Panel
