Small Wire Cutting And Stripping Machine For Stripping Multi - Conductor Cable
Small Wire Cutting And Stripping Machine For Stripping Multi - Conductor Cable
Specifications
Brand Name :
RKENS
Model Number :
RS-3F
Place of Origin :
china
Name :
Pneumatic Wire Stripping Machine For Stripping Multi-Conductor Cable Inner Electric Wire
Usage :
Strip inner insulation for multi-core conductor cable
Wire size :
Within 2.5 sqmm (Max 3MM OD)
Strip length :
Max 20MM
MOQ :
one set
Price :
negotiable
Packaging Details :
Carton box or wooden box
Delivery Time :
5-7 days
Payment Terms :
TT
Supply Ability :
300sets/month
Description

Pneumatic Wire Stripping Machine For Stripping Multi-Conductor Cable Inner Electric Wire

Intro:

RS-3F is a pneumatic type wire stripping machine. The machine is suitable for stripping inner insulation for muti-conductor cables, such as computer cable, power cable, telephone cable,flat ribbon cable,etc. Operator can strip several wires one time. Strip length is easily adjustable.

Suitable:

  • For electric wire within 2.5mm sqmm(AWG14). The wire diameter should be within 3MM.
  • Strip length: Max 20MM
  • Cutting blade can cut the wire
  • Pneumatic type wire stripping machine, easy operation
  • Available wires: Suitable for kinds of special wires, such as inner insulation of multi-core cables, ribbon cables, etc

Parameter:

Model RS-3F
Type Pneumatic Wire Stripping Machine
Size 260x150x270MM
Weight 9.5KG
Air pressure 5-7kgs
Available wire Within 2.5 sqmm
Strip length Max 20mm

Feature:

1. Pneumatic wire stripping machine for electric wire, or strip inner insulation for multi-core cables

2. Small in size, portable, can be moved easily.

3. Strip length is easily adjustable by adding or removing gasket

4. Foot switch to control the strip operation

5. Cutting blade can cut wires neatly after stripping

Wire stripping samples

Small Wire Cutting And Stripping Machine For Stripping Multi - Conductor Cable

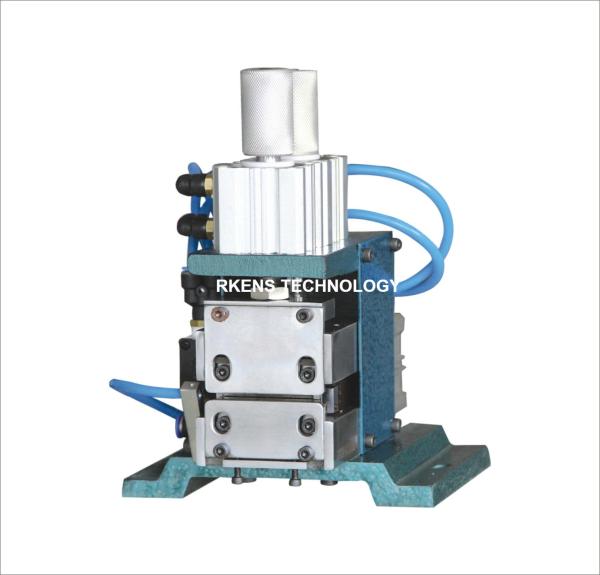

Picture of Pneumatic Wire Stripping Machine

Small Wire Cutting And Stripping Machine For Stripping Multi - Conductor Cable

Welcome to contact us for more information Pneumatic Wire Stripping Machine For Stripping Multi-Conductor Cable Inner Electric Wire
