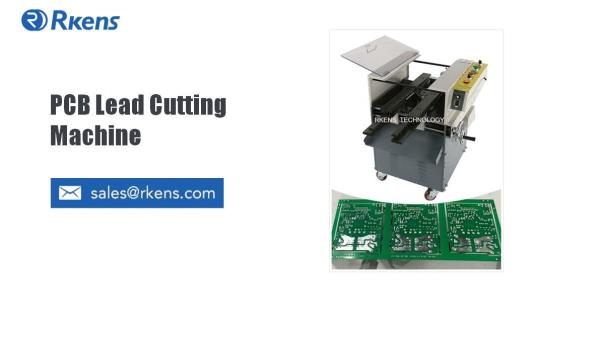

Fast Speed PCB Soldered Components Lead Cutting Trimming Machine With Rotary Knife
Fast Speed PCB Soldered Components Lead Cutting Trimming Machine With Rotary Knife
Specifications
Brand Name :
RKENS
Model Number :
RS-911A
Place of Origin :
china
MOQ :
one set
Price :
negotiable
Payment Terms :
TT
Supply Ability :
300sets/month
Delivery Time :
5-7 days
Packaging Details :
Carton box or wooden box
Name :
PCB Soldered Components Lead Cutting Trimming Machine
Usage :
Trim components leads on pcb
Type :
Automatic
Power Supply :
380V
Packing Weight :
157KG Packed by wooden case
Packing Size :
77x96x107CM
Description

Fast Speed PCB Soldered Components Lead Cutting Trimming Machine With Rotary Knife

Intro:

PCB lead trimmer can cut leads shortest to 1.5mm. It can cut soldered pcb leads easily and fast. With spring claw feeding, The PCB board side should have at least 2MM distance from components.

Blade Type: Round

Blade Size: 200MM and 250MM OD

Power Supply:380V

Suitable:

To use the PCB lead trimming cutting machine, your pcb should meet below requirement.

1. The pcb size should be within 250MM width

2. The PCB board side should have at least 2MM distance from components.

3. The shortest length machine can cut is up to 1.5MM. However if there is components on back side, lead length should be higher than components. For example, there is 3MM height components on bottom side, so after cutting, the lead length should be higher than 3MM. You can not cut lead length lower than 3.0MM.

Specification:

Name PCB Soldered Components Lead Cutting Trimming Machine
Model RS-911A
Power Supply 380V AC50HZ/60HZ
Shortest cut length 1.5MM Cut length is adjustable
Available PCB size Max 400x250MM
Blade type 200MM Dia, And 250MM Dia for option
Efficiency

4500 RPM

Feature:

1. The eagle claw shrapnel clamp can nip PC boards tightly and push them forward automatically and stably.
2. The track board-delivery speed can be adjusted according to pins to increase the service life of the cutter.
3. As the principal axis rotates quickly, the machine works accurately and efficiently.
4. The crest pinprick ball and the bakelite press plank can reduce the error of lead-cutting of PC boards transformed during the tin soldering.
5. With a photoelectric switch, it is very safe.

Fast Speed PCB Soldered Components Lead Cutting Trimming Machine With Rotary Knife
