Automatic Nylon Tie Tying Cable Machine With Handheld Tying Gun
Automatic Nylon Tie Tying Cable Machine With Handheld Tying Gun
Automatic Nylon Tie Tying Cable Machine With Handheld Tying Gun
Automatic Nylon Tie Tying Cable Machine With Handheld Tying Gun
Specifications
Brand Name :
RKENS
Model Number :
RS-700
Place of Origin :
China
Name :
Cable Tying Machine
Power supply :
220V/110V 50HZ/60HZ
Description

Automatic Nylon Tie Tying Cable Machine With Handheld Tying Gun

ntro:
This auto tying machine is controlled by PLC system. With touch screen to set parameters, and can auto feeding ties with vibraion bowl feeder. It has handheld tying gun. Can auto feed ties , cut ties. Fast feeding and tying. Save labor. We also have table type nylon cable tying machine.
Parameters:
Model: RS-700
Cable tie length 80/100/150 mm (can be customized)
Tension force 2.5 - 5.0 M.n
Tying Diameter 0.3 - 30 mm
Tying speed 0.5 s/time
Compressed air connection 0.55 - 0.65 MPa
Power supply 110, 220 V (50 - 60 Hz)
Dimension 650 * 650 * 720 mm
Weight 130 kg
Features:
1.The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips
2.Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;
3.0.7 seconds to complete all actions including feeding, tape, tightening, cutting, polishing wastes, also including auxiliary time, the whole cycle a total of about 1.3 seconds.A machine can replace 7-8 workers. A year can save wage costs over 20 million;
4.Waste collected automatically in a waste box via a dedicated recovery system (optional);
5.Hand held tip lightweight ,compact design grip, easy to hold, long-term use will not feel tired;
6.Tying the intensity or tension can be adjusted by the knob;
7.Host body own PLC control system, touch screen Chinese /English display, simple operation;
8.In automatic production line can be conjunction with robot to achieve fully automatic cable tie,Also it can be fixed to the table using as the desktop cable tie machine.

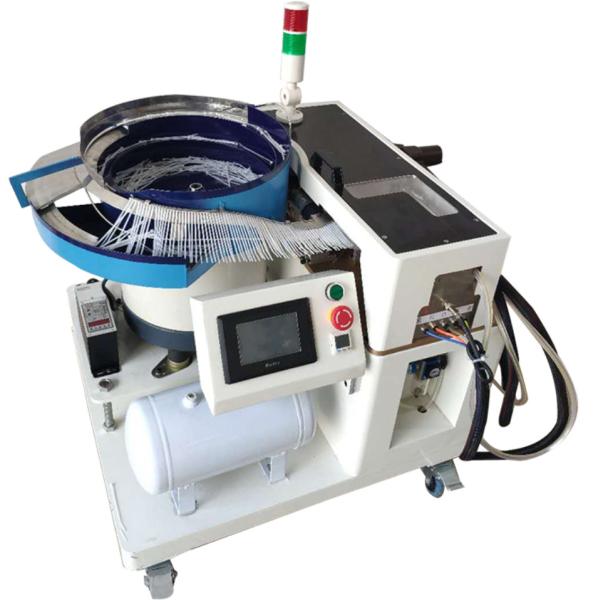

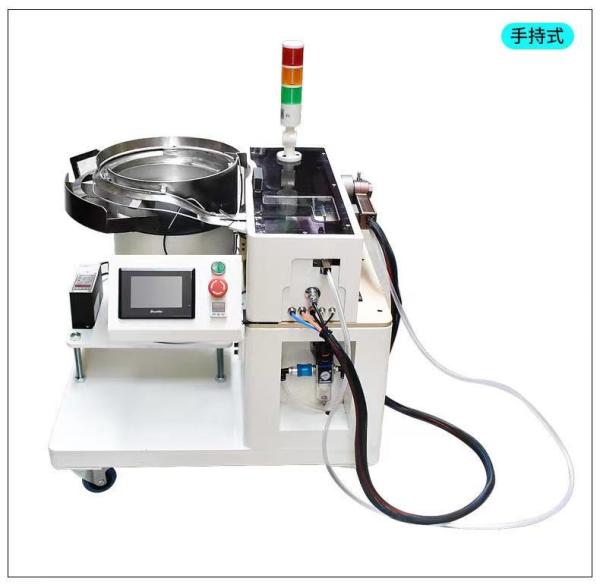

Cable Tying Machine picture
Automatic Nylon Tie Tying Cable Machine With Handheld Tying Gun
Automatic Nylon Tie Tying Cable Machine With Handheld Tying Gun
