1.0mm*1.0mm QR Code PCB Laser Marking Machine 800KG
1.0mm*1.0mm QR Code PCB Laser Marking Machine 800KG
1.0mm*1.0mm QR Code PCB Laser Marking Machine 800KG
1.0mm*1.0mm QR Code PCB Laser Marking Machine 800KG
1.0mm*1.0mm QR Code PCB Laser Marking Machine 800KG
1.0mm*1.0mm QR Code PCB Laser Marking Machine 800KG
Specifications
Brand Name :
UA
Model Number :
G510
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 units per month
Delivery Time :
15 days
Packaging Details :
Vacuum package for sea transportation
PCB size :
Min 50mm*50mm Max 510mm*460mm
PCB Thickness :
0.5mm-10mm
Laser Type :
CO2/Fiber/Green/UV
Marking Speed :
6000mm/s
Machine size :
1050 x 1470 x 1450 mm
Machine weight :
800 kg
Power Supply :
220V/50Hz 2500W
File format supported :
DXF、PLT、EXCE、TXT
Description

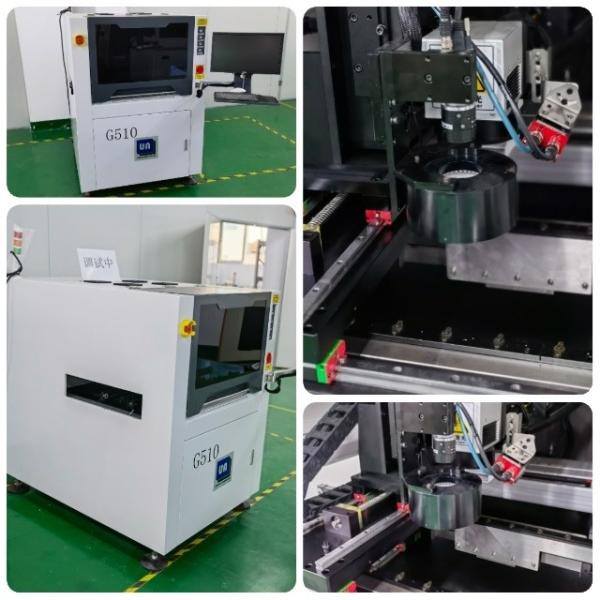

PCB Laser Marking Machine G510

Functional features

Product introduction of fully automatic PCB laser printer
PCB automatic QR code laser marking equipment is mainly used in PCB surface automatically from carved QR code, can be in white oil, green oil, black oil, such as all kinds of printing ink and copper surface engraving qr code automatically, can be the raw material procurement, production process and technology, product batch, the information such as the manufacturer, production date, product to automatically generate two-dimensional, automatically by the laser engraving on the PCB surface, realize the traceability of the product and management.

Paramters
1 Model G510 G650 G800
2 PCB size Min 50mm*50mm Max 510mm*460mm Min 50mm*50mm Max 650mm*650mm Min 50mm*50mm Max 800mm*800mm
3 PCB Thickness 0.5mm-10mm
4 Laser Type CO2/Fiber/Green/UV
5 Marking Speed 6000mm/s
6 Repeat Positioning Accuracy +/-0.03mm
7 Applicable Product White ink, green ink, blue ink, black ink
8 Power Supply 220V/50Hz 2500W 220V/50Hz 3000W 220V/50Hz 3500W
9 One-Dimensional Code CODE39,CODE25,CODE93,CODE128,EAN-13,ISBN
10 Two-Dimensional Code Datamatrix,QR Code,micro QR Code,PDF417,Code 49,Code 16K
11 Code size Min:1.0mm*1.0mm
12 Character Type True Type,JSF,SHX,DMF
13 Character Height 0.1 - 0.4mm
14 File format supported DXF,PLT,EXCE,TXT
15 Automatic positioning function Support automatic photography
16 Automatic code reading function Automatically read the QR code and save the data, and automatically record and alarm when the data cannot be read
17 Intelligent production function It can be customized to connect with ERP/MES/SAP and other systems, and automatically acquire information such as work order number, product batch number, material code name and specification, and automatically code
18 The machine size 1050x1470x1450mm 1550x2130x1700mm 1650x2200x1700mm
19 The machine weight 800KG 1400KG 1600KG
20 Operating Environment 5-40°C,35%-80%RH
21 Air Required 0.5-0.6Mpa
22 Transport Direction LEFT TO RIGHT RIGHT TO LEFT
23 PCB Clamping Able to clamp automatically and customize various clamping
and fixture as needed
Options
1 Loader and Unloader
2 Panel turnover machine
3 Dust extraction system
4 Laser code up and down simultaneously
5 Barcode scanner
6 MAS System or MES System

Product advantage

1. Adopt imported laser, stable performance.
2. Adopt imported high speed vibration mirror, with high machining accuracy,

fast marking speed and stable performance.
3. Humanization of software interface, easy to learn and powerful editing function.
4. It can automatically obtain the information of the work order number, product batch number,

material code, product name and other information and automatically type the code.
5. It can read the qr code automatically and save the data, automatically record and alarm when it cannot be read.
6. Compared with ordinary jet printing methods, there is no consumable material, no pollution, no maintenance.

Application field
