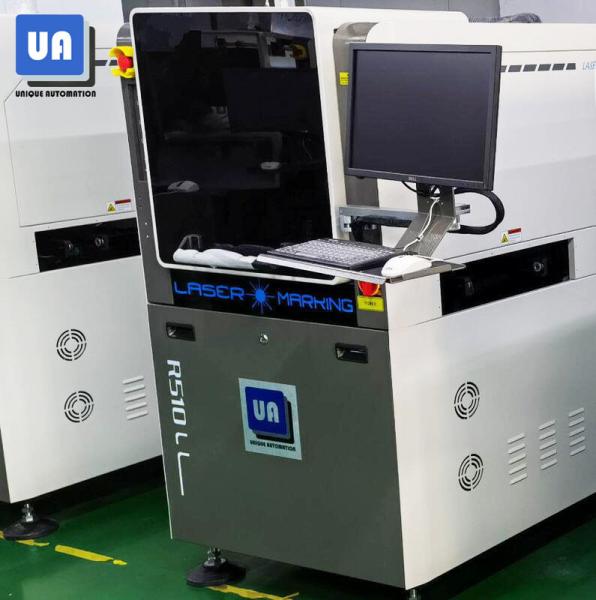

CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
CO2 50mm*50mm PCB Laser Etching Machine 6000mm/S Coaxial Visual R510
Specifications
Brand Name :
UA
Model Number :
R510
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 units per month
Delivery Time :
15 days
Packaging Details :
Vacuum package for sea transportation
PCB size :
Min 50mm*50mm Max 500mm*460mm
PCB Thickness :
0.6mm-10mm
Laser Type :
CO2/Fiber/Green/UV
Marking Speed :
5800mm/s
Machine size :
1050 x 1480 x 1490 mm
Machine weight :
890 kg
Power Supply :
200-220V/50Hz 2600W
File format supported :
TXT、DXF、PLT、EXCE、
Description

PCB Automatic Laser Marking Machine PCB Laser Marker Coaxial Visual R510

Paramters
1 Model R510 R650 R800
2 PCB size Min 50mm*50mm Max 510mm*460mm Min 50mm*50mm Max 650mm*650mm Min 50mm*50mm Max 800mm*800mm
3 PCB Thickness 0.5mm-10mm
4 Laser Type CO2/Fiber/Green/UV
5 Marking Speed 6000mm/s
6 Repeat Positioning Accuracy +/-0.03mm
7 Applicable Product White ink, green ink, blue ink, black ink
8 Power Supply 220V/50Hz 2500W 220V/50Hz 3000W 220V/50Hz 3500W
9 One-Dimensional Code CODE39,CODE25,CODE93,CODE128,EAN-13,ISBN
10 Two-Dimensional Code Datamatrix,QR Code,micro QR Code,PDF417,Code 49,Code 16K
11 Code size Min:1.0mm*1.0mm
12 Character Type True Type,JSF,SHX,DMF
13 Character Height 0.1 - 0.4mm
14 File format supported DXF,PLT,EXCE,TXT
15 Automatic positioning function Support automatic photography
16 Automatic code reading function Automatically read the QR code and save the data, and automatically record and alarm when the data cannot be read
17 Intelligent production function It can be customized to connect with ERP/MES/SAP and other systems, and automatically acquire information such as work order number, product batch number, material code name and specification, and automatically code
18 The machine size 1050x1470x1450mm 1550x2130x1700mm 1650x2200x1700mm
19 The machine weight 800KG 1400KG 1600KG
20 Operating Environment 5-40°C,35%-80%RH
21 Air Required 0.5-0.6Mpa
22 Transport Direction LEFT TO RIGHT RIGHT TO LEFT
23 PCB Clamping Able to clamp automatically and customize various clamping
and fixture as needed
Options
1 Loader and Unloader
2 Panel turnover machine
3 Dust extraction system
4 Laser code up and down simultaneously
5 Barcode scanner
6 MAS System or MES System

Option Internal PCB turnover system

Option Special double optical paths design

Option Three-sections rail conveyor

Option Up&down dual mode laser device
