Specifications
Brand Name :
UA
Model Number :
RF-H800Ⅰ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
USD
Delivery Time :
5-30 days
Packaging Details :
vacuum packing for sea transportation
Machine Dimension :
5150*1490*1510 mm
Heating Zone Length :
2940mm
Control :
PC+PLC
PCB Width :
50-400 mm
Conveyor Speed :
20-1500 mm/min
Running Power (kw) :
8.5 KW
Description

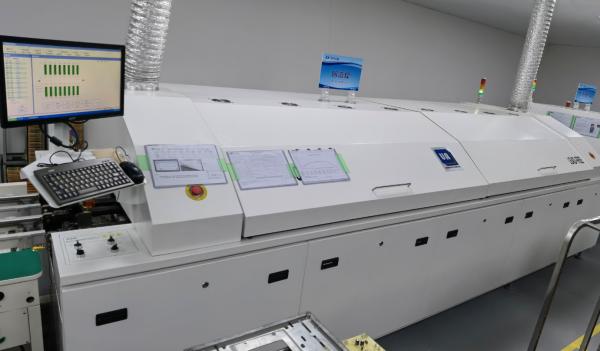

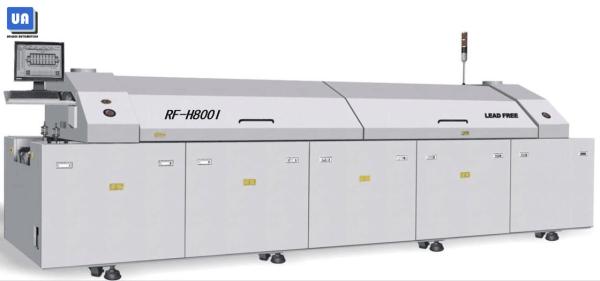

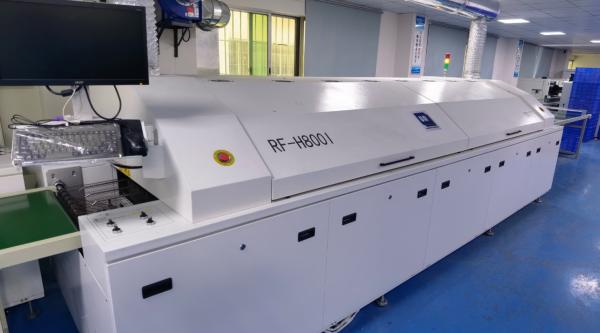

8 Zones Lead Free Reflow Oven Advanced SMT Reflow Oven

Features

1. Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB.

The whole top oven can open completely easy to clean oven inside.

2. Even temperature and high heat compensation efficiency,especially suitable for soldering

of BGA CSP components.

3. Automatically monitoring and displaying the working condition of the oven the parameter of the

oven can be modified at any moment

4.The patent wind wheel design can ensure wind speed windspeed can be adjusted by

frequency conversion.

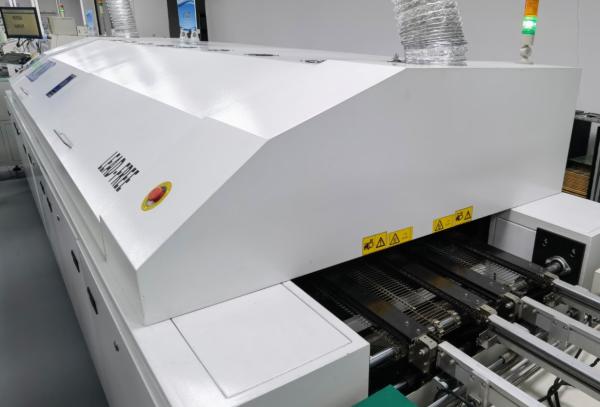

5. The guide rail is made of special aluminum alloy with high rigidity accuracy and intensity,

with auto chain lubricating system

6. Quick warm up, it takes less than 20 minutes to heat fromthe normal temperature to the working temperature

7. The upper cover of the oven is raised by electric handspike, safe and credible

8. Powerful programming software’s controlling system, it can detect the online temperature of PCB

and can analysis save and print the profiles

Specifications

RF-H700Ⅰ RF-H800Ⅰ RF-H1010Ⅰ
Machine Dimension (mm) 4800*1490*1510 5150*1490*1510 5850*1490*1510
Weight (kg) Approx. 1900 Approx. 2100 Approx. 2500
Heating zone length (mm) 2582 2932 3632
Running / starting power (kw) 7.5 / 30 8.5 / 33 11 / 37
Control PLC+PC
Temp range Room temperature-３２０℃
Temp accuracy ±１℃
Temp deviation ±2℃
PCB width (mm) 50-400 (or customized)
Cooling type Forced-air cooling
Cooling zone length (mm) 600
Conveyor type Chain and mesh belt
Conveyor speed (mm/min) 20----1500
Mesh belt width (mm) 460 (or customized)
Parts height On board 35 mm / Under board 20 mm
Power supply 3P/AC 380V OR 3P/AC 220V
Options available

N2

450/500 max PCB width

Central support for big PCB

Extra cooling zone

Our Service

With the aim of “Quality First, Customer Priority”, We try our best to service customers

and as soon as possible meet their requirements. Provide them best quality equipment

with lower cost. Customer not only is our god, but also is our friend.

1. We provide customer the top technical support.

2. We can help u to deal with all the trouble about SMT.

3. We will show the best professional tech service to u.

4. We have 11 years’ experience in this line.

5. We are committed to offer u the best solution.
