2250mm Heating Zone Reflow Oven Machine 380V 50HZ 5 Zones RF-500Ⅰ
2250mm Heating Zone Reflow Oven Machine 380V 50HZ 5 Zones RF-500Ⅰ
2250mm Heating Zone Reflow Oven Machine 380V 50HZ 5 Zones RF-500Ⅰ
2250mm Heating Zone Reflow Oven Machine 380V 50HZ 5 Zones RF-500Ⅰ
Specifications
Brand Name :
UA
Model Number :
RF-500Ⅰ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
USD
Delivery Time :
5-30 days
Packaging Details :
vacuum packing for sea transportation
Machine Dimension :
4150*1300*1450 mm
Conveyor Speed :
20-1500 mm/min
Parts Height :
Up 35 mm / Down 20 mm
Running Power (kw) :
9
Control Ways :
PLC + PC (Computer ）
PCB Width （mm) :
50 - 400 mm
Temperature Range :
-320℃
Heating Zone Length :
2260 mm
Description

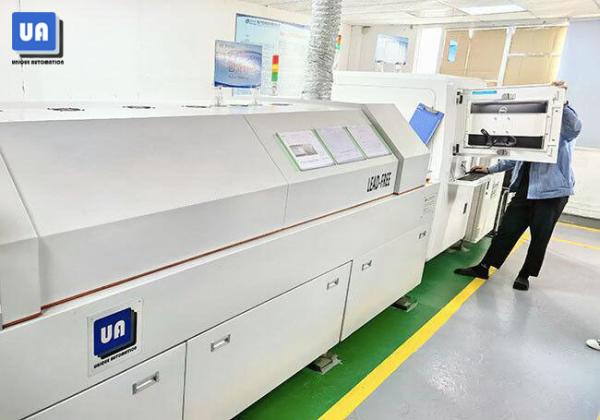

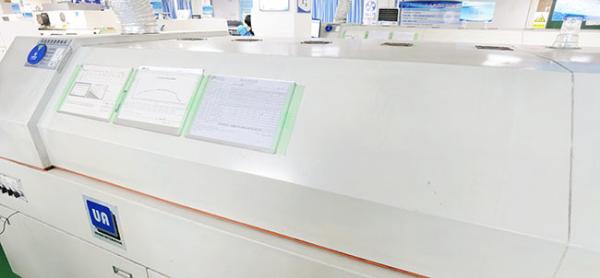

5 Zones Lead Free SMT Reflow Oven RF-500Ⅰ


Features
1. Even temperature and high heat compensation efficiency,
especially suitable for soldering of BGA CSP components.
2. All temperature zone applies coercive independent cycles PID controls and up & down heating style,
which make the temperature of theoven accurate with a large heat capacity
3. Quick warm up, it takes less than 20 minutes to heat fromthe normal temperature to the working temperature
4. Powerful programming software’s controlling system, it can detect the online temperature
of PCB and can analysis save and print the profiles
5. The patent wind wheel design can ensure wind speed windspeed can be adjusted by frequency conversion
6. The upper cover of the oven is raised by electric handspike, safe and credible
7. The guide rail is made of special aluminum alloy with high rigidity accuracy and intensity,
with auto chain lubricating system
8. SMEMA compatible

Specifications

ModelRF-500I
No. of Heating ZonesTop 5 & Bottom 5
Temperature Control Precision± 1C
Temperature Deviation on PCB± 1.5C
No. of Cooling Zones1
Length of Heating Zones2250 MM
Components ClearanceTop / Bottom Clearance of PCB is 25mm
Nozzle PlateStainless Steel Plate
Cooling MethodAir Oven : Forced Air;
Nitrogen Oven : Water Chiller
Conveyor Height900± 20 MM
Max. Width of PCB50 ~ 400 MM
Conveyor DirectionOption
PCB Conveyor MethodMesh and Rails
Mesh Width450 MM
Convryor Speed20-2000MM/min
Dimension ( L*W*H )4150*1300*1450
Power Supply380V 50HZ / 220V 60HZ
Startup PowerApprox. 24KW
Temp. Setting Range
Rome Temperature ~320C
Normal Operation PowerAbout 3KW
Weight1350KG


Package and Shippment

Package : internal vacuum packing and outer wooden packing.

Shippment :

1. By air. International Express just like Federal Express, DHL, UPS, TNT, etc.

2. By sea. Suitable for the transportation of large items, carrying lots of goods and cheap.

3. By truck. Fast transportation and low cost.

4. Other as u like.
