Specifications
Brand Name :
Topleader
Model Number :
KPT
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$8000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Mobile Cable Powered Towing Trolley Self-Propelled Railway Steel Trailer For Transferring
Power supply :
Towing canle powered
Material :
steel
Load capacity :
1-300T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

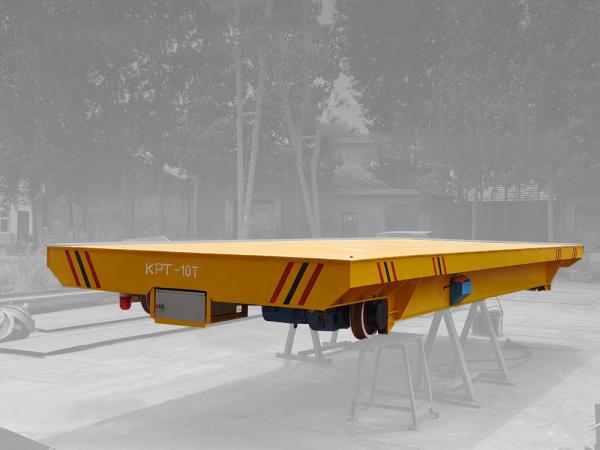

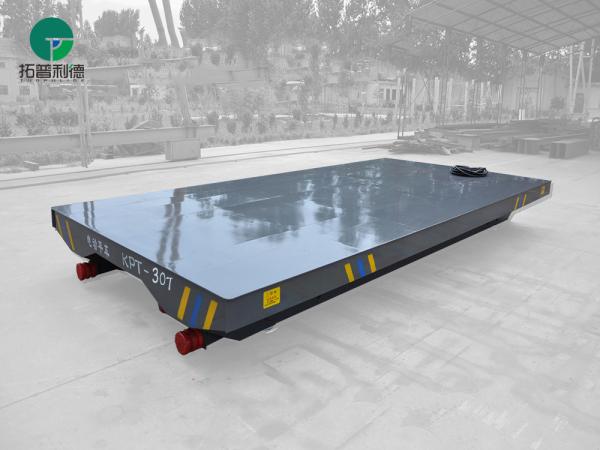

Mobile cable powered towing trolley Self-propelled railway steel trailer

Brief Introduction - Self-propelled railway steel trailer for transferring

The KPT series towing trolley Self-propelled railway steel trailer are powered by the dragged cable. The operation system is low voltage 36V power. The hydraulic can be installed on steel plate handling cart. This series Mobile cable powered towing trolley Self-propelled railway steel trailer for transferring are suitable to be used in the bad environment, such as, high temperature , explosion condition and so on.
With its simple structure and low price, this series is more often used to transfer materials for a short distance from one workshop to another. The Self-propelled railway steel trailer for transferring 's using time is not limited and it has no strict requirement on the rail’s construction.
Mobile Cable Powered Towing Trolley Self-Propelled Railway Steel Trailer For Transferring

Advantages - Mobile cable powered towing trolley

  • High temperature and explosion proof;
  • The Self-propelled railway steel trailer for transferring With simple structure and low price;
  • The hydraulic can be installed on steel plate handling cart;
  • The Mobile cable powered towing trolley for transferring 's using time is not limited;
  • The Self-propelled railway steel trailer has no strict requirement on the rail’s construction;
  • Steel plate handling cart Running on the straight railways or on the ‘S’ and arc-shaped railways.

Mobile Cable Powered Towing Trolley Self-Propelled Railway Steel Trailer For Transferring

Working principle - Mobile cable powered towing trolley for transferring

This series Mobile cable powered towing trolley is suitable for the short running distance( ≤20m ), high using frequency and low height.Transfer platform carrier is commonly applied in steel plant, cement factory, aluminum factory, plastic pipes factory, etc from producing line to store or from one workshop to another.

Mobile Cable Powered Towing Trolley Self-Propelled Railway Steel Trailer For Transferring

Application - Mobile cable powered Self-propelled railway steel trailer

The Mobile cable powered towing trolley is applied to transfer steel ladles or steel scrap ladle in steel factory and meturallgy plant. Generally the load capacity is large, can reach to 150 tons. It is commonly applied in steel plant, mechallurgy industry, aluminum factory, plastic pipes factory, etc.

Mobile Cable Powered Towing Trolley Self-Propelled Railway Steel Trailer For Transferring

Parameters - Mobile cable powered towing trolley for transferring

Model
 KPT-2T KPT-10T KPT-20T KPT-30T KPT-50T KPT-63T KPT-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 25 25 20 20 20 20 18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100


Packing & Delivery - Self-propelled railway steel trailer for transferring

The Mobile cable powered towing trolley Self-propelled railway steel trailer for transferring will be packed by the tarp, the parts will be packed by polywood case.
