Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Specifications
Brand Name :
Topleader
Model Number :
KPJ
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Mold Transport Flat Rail Trolley will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant
Power supply :
Cable reel powered
Material :
steel
Load capacity :
1-300T
Running speed :
20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant

Introduce - Mold Transport Flat Rail Trolley

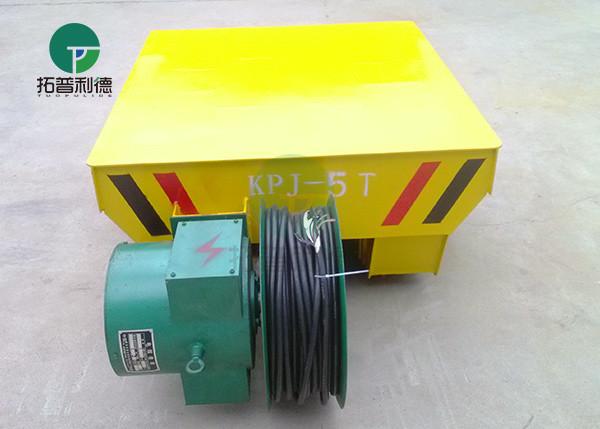

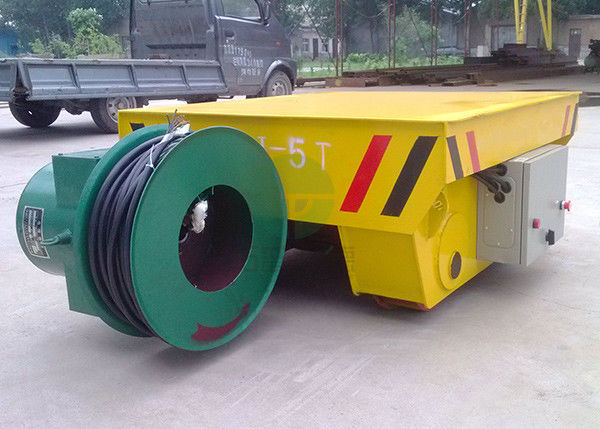

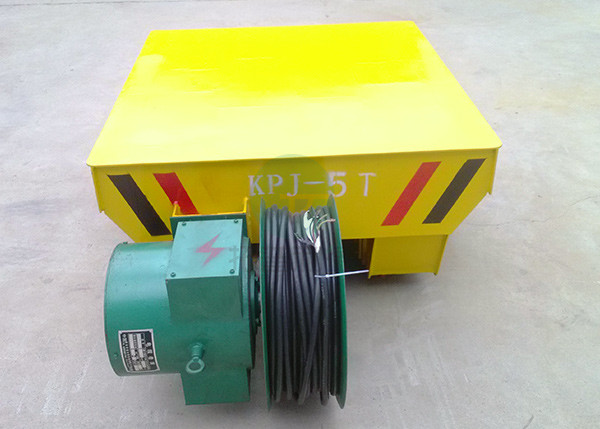

KPJ series Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant with electric cable reel, the cable reel for the hysteresis coupled to ensure the cable easy to pull by force even worse. Cable Reels 380V power supply to the flat rail trolley YZ lifting motor to provide power metallurgy, electric drag cars running. Flat rail trolley to run automatically when the cable reel cable roll up or release, by the power cord length of tube effect. Normal maximum operating distance of less than 200m. The flat car to adapt to harsh conditions of lifting metallurgy, flat car simple and reliable, affordable, convenient rail construction.

Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant

Advantages of Mold Transport Flat Rail Trolley

  • Excellent gear reducer and motor with high quality, assemblied together perfectly

  • Safe devices are installed in the mold transport flat rail trolley

  • Remote control can be equipped together to operate the flat rail trolley well

  • Customization can be supported for the motorized transfer trailer

  • The kind of motorized transfer trailer is with large capacity and high quality

  • The kind of flat rail trolley can be applied in various occasions as high temperature, easy explosion, ponding, dust, scrap iron...

  • The hydraulic lifting device can be equipped as per customers' demand

  • The V frame can be installed for rounded material as per your need

  • The flat rail trolley is with high using frequency and low cost

  • long lifetime, no limited time.

  • The running distance of this kinds flat rail trolley is no limited

  • The mold transport flat rail trolley is no strict requirement for the rails

  • Custom v- or u shape

  • Small impact to the gear reducer

  • No restriction of the running distance

  • Can running on s-shape rail, arc-shape rails

  • Has no limit on working distance

  • Anti-explosion, anti-high temperature

  • Stable start, big starting power, long lifetime

Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant

Product Details - Mold Transport Flat Rail Trolley

Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant

Parameter of Mold Transport Flat Rail Trolley

Model

KPJ-2T

KPJ-10T

KPJ-20T

KPJ-30T

KPJ-50T

KPJ-63T

KPJ-150T

Rated load (T)

2

10

20

30

50

63

150

Table size

length(L)

2000

3600

4000

4500

5500

5600

10000

Width(W)

1500

2000

2200

2200

2500

2500

3000

Height(H)

450

500

550

600

650

700

1200

Wheel Base (mm)

1200

2600

2800

3200

4200

4300

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Running speed (min)

0-25

0-25

0-20

0-20

0-20

0-20

0-18

Motor Power (Kw)

1

1.6

2.2

3.5

5

6.3

15

Battery Capacity(Ah)

180

160

180

250

330

400

600

Battery Voltage(V)

24

48

48

48

48

48

72

Running Time When Full Load

4.32

4.8

4

3.5

3.3

3

2.9

Running Distance for one Charge(Km)

6.5

7.2

4.8

4.2

4

3.6

3.2

Max Wheel Load (KN)

14.4

42.6

77.7

110.4

174

221.4

265.2

Reference Weight (t)

2.8

4.2

5.9

6.8

8

10.8

26.8

Recommended Rail Model

P15

P18

P24

P38

P43

P50

QU100

Heavy Duty Cable Drum Power Motorized Transfer Trailers Mold Transport Flat Rail Trolley Transformer Plant

Application - Mold Transport Flat Rail Trolley

The flat rail trolley is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
