Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600sets per year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The whole hot ladle railway vehicle will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
Load capacity :
1-300ton
Power supply :
Storage battery
Running speed :
0-20m/min
Whether has holes :
Yes
Application :
Factory ,warehouse and working line
Color :
customized
OEM :
Accepted
Description

Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle


Working principle of hot ladle railway vehicle

This hot ladle railway vehicle is powered by the conductor rail. 380v AC power is step down 36v safe voltage through transformer and separately connect with rails. Then electricity is passed to the cart by wheels . Hydraulic lifting device is installed to facilitate load and unload.

Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle


Description of hot ladle railway vehicle

The steel or aluminum metal slag pot truck use heat insulating material, it can resist the high -temperature. In order to ensure safety and working frequency, the ladle transfer car usually prepared two motors, When one is damaged, the other one can be used to continue the work.

This kind of metal slag pot truck can solve problems with high temperature steel ladle, liquid iron ladle transferring in metallurgy industry.

The metal slag pot truck is specially designed to transfer the high-temperature ladle. This kind of cart has strict requirements on safety and anti-high temperature, so the material, driving system and electrical parts of the cart should be specially designed.



Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle

Storage battery Battery charger Electric control box
Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle

Sound & light alarm Remote control Casting wheel

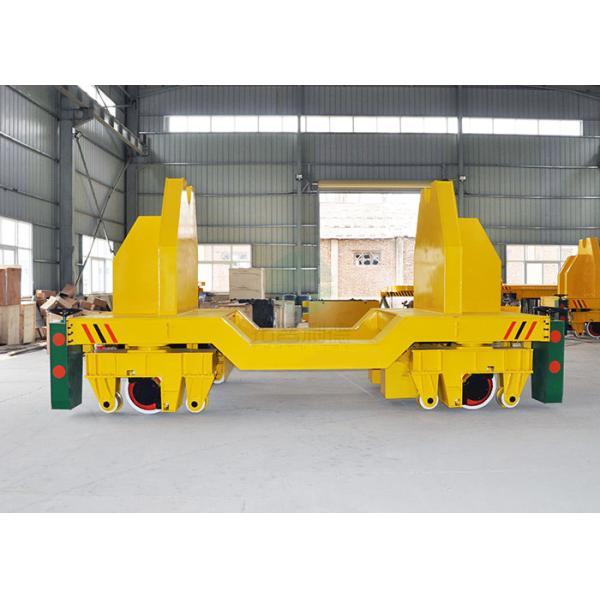

Photos of hot ladle railway vehicle

Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle

Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle


Application of hot ladle railway vehicle

The battery-powered transfer cart is suitable for various industries, steel mill, steel structure, steel pipe, steel billets, steel ladle and coil, etc, transfer steel produce from one location to another.

Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle

Technical parameters of hot ladle railway vehicle

Model KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Other kind of hot ladle railway vehicle

Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle

Manufacturing of hot ladle railway vehicle


Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle

Delivery of hot ladle railway vehicle


Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle


Customer visit in our factory from world wide


Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle

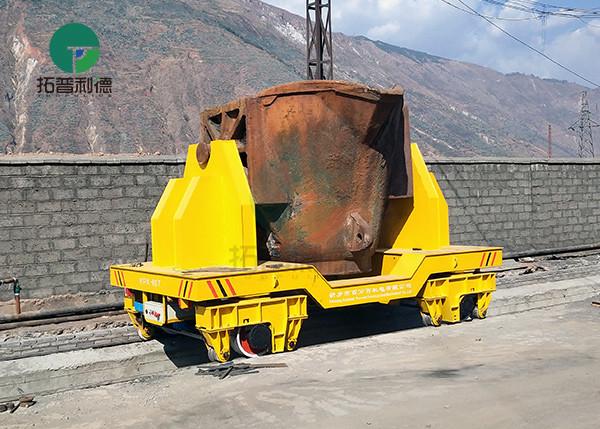

hot ladle railway vehicle applied at site in customers' factory



Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle


After-sale service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Our team

Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle

Our factory

Workhouse Transport Copper Molten Ladle Transfer Hot Ladle Railway Vehicle
