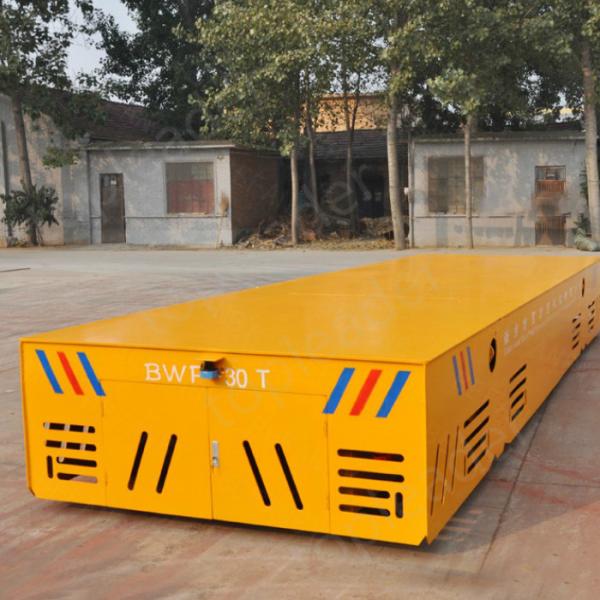

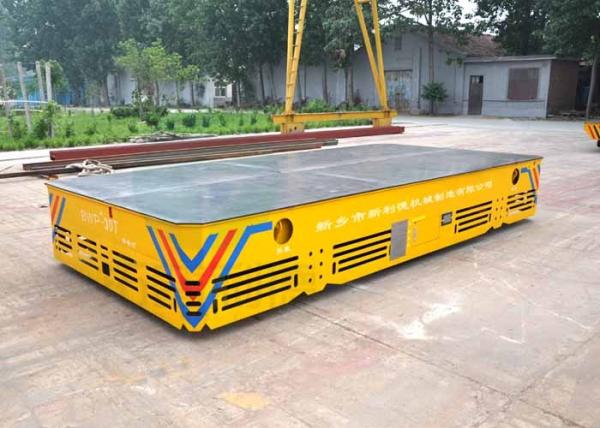

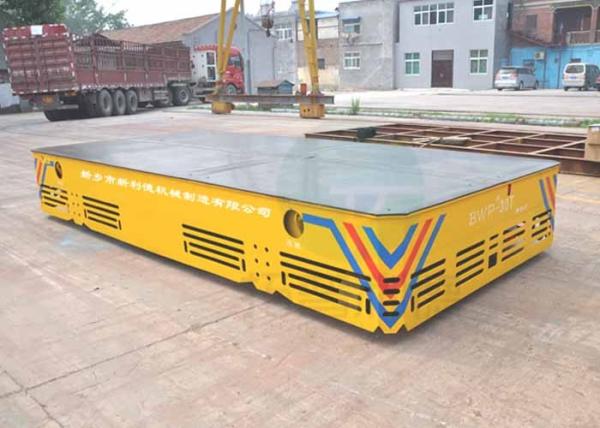

Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor
Specifications
Brand Name :
Topleader
Model Number :
BWP-75T
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$15000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after your prepayment
Packaging Details :
The whole motorized trackless transfer car will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Battery operated motorized trackless transfer car on cement floor
Power supply :
Storage battery
Material :
steel
Load capacity :
1-100T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Battery operated steerable motorized trackless transfer car on cement floor


Working principle of battery operated steerable motorized trackless transfer car


The steerable transfer car is powered by storage battery. The battery is installed in the trackless platform and we also equip intelligent charger for it. The trackless battery platform is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.

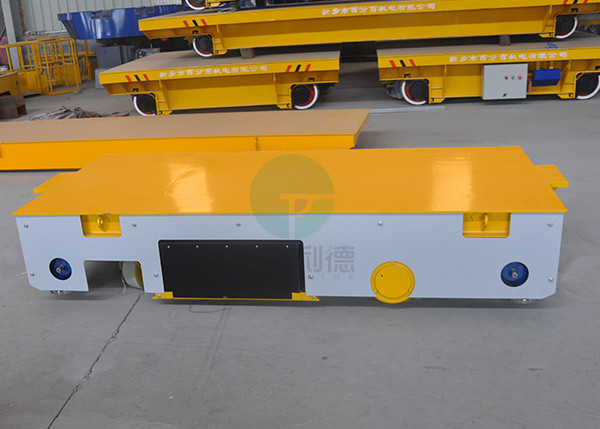

Battery operated steerable motorized trackless transfer car on cement floor



Description of battery operated transfer car


The whole steerable transfer car is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.

The driving wheel and load wheel of trackless car is high strength PU wheel. It is wear-resistance, and has low maintain cost.

The functions of the trackless battery platform including 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons.

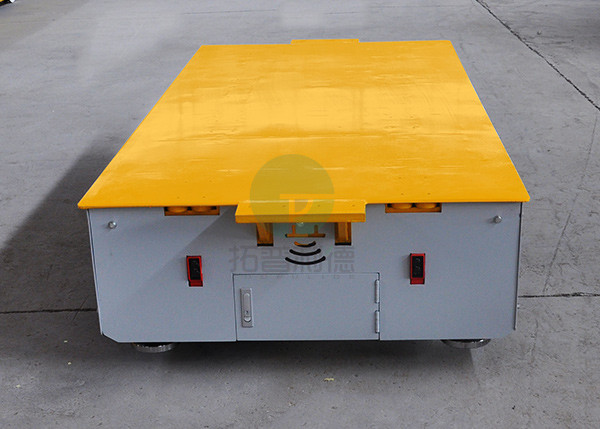

Battery operated steerable motorized trackless transfer car on cement floor Battery operated steerable motorized trackless transfer car on cement floor Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor Battery operated steerable motorized trackless transfer car on cement floor Battery operated steerable motorized trackless transfer car on cement floor



Application of trackless transfer car


This kind of trackless battery platform is commonly applied in factory or warehouse to transfer heavy materials, such as steel workpiecs, machine parts, etc.


Battery operated steerable motorized trackless transfer car on cement floor Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor Battery operated steerable motorized trackless transfer car on cement floor


Technical parameters of trackless transfer car

Model

BWP-70T

Rated Load(t)

70t

Impacted rated load(t)

95

structure of frame

steel plates welded beam structure

Thickness of the steel plate

16

Cart weight(t)

10.5

Wheel load(t)

12

Ground requirement

steel plate floor

Table size(mm)

6000x2300

Height of the whole cart(mm)

700

Space from the ground(mm)

50

Wheels distance

1800

Axles distance

5200

Turning radius(mm)

5200

Turning type

turning while driving without stop

Control method for turning

control button

Turning structure

mechanical

Wheel diameter

Ф500/6

Wheel quality

polyurethane wheels

Running speed(m/min)

0-12

Brake principle

electric magnetic force

Operation method

with wire or no wire

Charger motor's installation

installed on cart

Function of charger motor

automatic charging

Warning equipment

sound and light lamp

Advantage of battery operated transfer car

The motor adopts DC traction motor, the protection grade: IP44. Compact structure, large overload capacity, long service life. Excellent load performance, good low-speed performance, big starting torque, small starting current. It is suitable for frequent start and saves electricity. The motor runs with high efficiency in the range of all speeds. The motor adopts imported high-speed bearing retaining oil, and it is of free maintenance, high reliability and long service life.

Battery operated steerable motorized trackless transfer car on cement floor


Manufacturing of trackless transfer car


Battery operated steerable motorized trackless transfer car on cement floor


Delivery of trackless transfer car



Battery operated steerable motorized trackless transfer car on cement floor


Customer visit in our factory from world wide


Battery operated steerable motorized trackless transfer car on cement floor
Battery operated steerable motorized trackless transfer car on cement floor



After-sale service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Our team

Battery operated steerable motorized trackless transfer car on cement floor

Our factory

Battery operated steerable motorized trackless transfer car on cement floor
