Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Specifications
Brand Name :
Topleader
Model Number :
KPJ
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley
Power supply :
Cable reel powered
Material :
steel
Load capacity :
1-300T
Running speed :
20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

Motorized transfer trolley introduce:

KPJ Series motorized transfer trolley flat car with electric cable reel, the cable reel for the hysteresis coupled to ensure the cable easy to pull by force even worse. Cable Reels 380V power supply to the flat car YZ lifting motor to provide power metallurgy, electric drag cars running flat. Electric flat car to run automatically when the cable reel cable roll up or release, by the power cord length of tube effect. Normal maximum operating distance of less than 200m. The flat car to adapt to harsh conditions of lifting metallurgy, flat car simple and reliable, affordable, convenient rail construction.

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

Advantage of motorized transfer trolley:

Compared with other series ,the using time is not limited ;it has no strict requirement for the construction of the railway .The load capacity is not limited and can be used frequently. If the running distance is more than 50m, a cable arranger needs to be installed to arrange the cables.The running distance of KPJ series can reach to 200m.

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

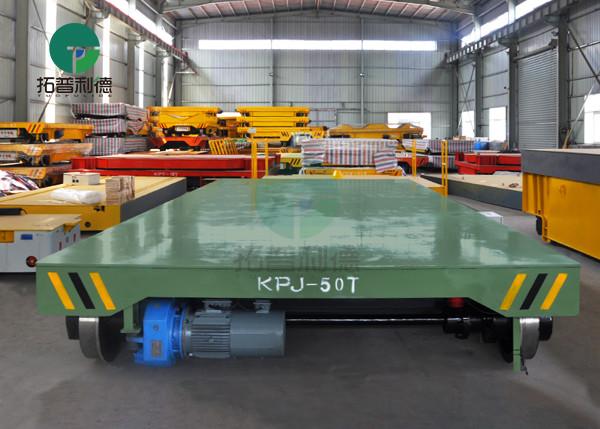

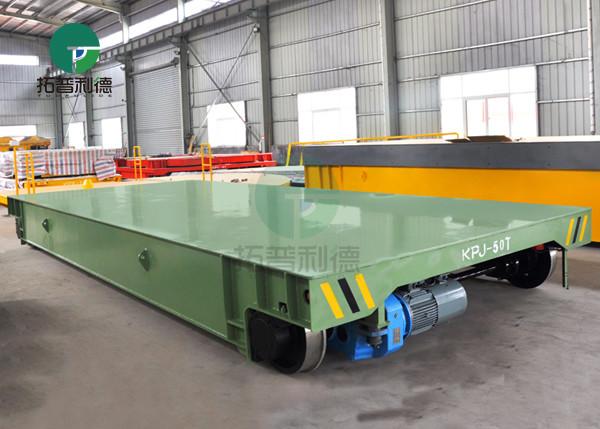

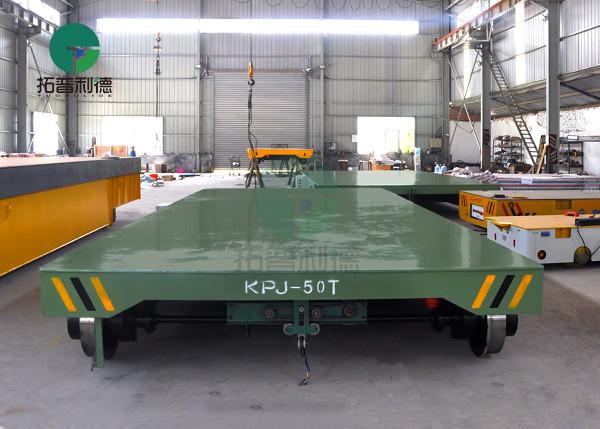

Material transfer trolley details :

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

Parameter of material transfer trolley:

Model KPJ-2T KPJ-10T KPJ-20T KPJ-30T KPJ-50T KPJ-63T KPJ-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

Motorized transfer trolley application:

The rail transfer cart is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

Customer visit :

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

Our customer feedback:

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

Processing flow :

Storage Warehouse Cable Drum Power Motorized Material Transfer Trolley

Our after-sale service:

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
