30t battery powered ladle transfer trolley for hot metal handling in steel plant
30t battery powered ladle transfer trolley for hot metal handling in steel plant
30t battery powered ladle transfer trolley for hot metal handling in steel plant
30t battery powered ladle transfer trolley for hot metal handling in steel plant
Specifications
Brand Name :
Topleader
Model Number :
KPT
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole ladle transfer trolley will be packed by the tarp, the parts will be packed by polywood case.
Power supply :
Mobile cable powered
Material :
steel
Load capacity :
1-300T
Running speed :
20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Product name :
30t battery powered ladle transfer trolley for hot metal handling in steel plant
Description

30t battery powered ladle transfer trolley for hot metal handling in steel plant

Introduction of ladle transfer trolley

KPT series' rail flat cart is powered by dragged cable, the kind of rail flat cart, its main character is that its power supply----dragged cable.From it you can see that it is suitable short distance due to the limitation of the cable. So if you would like to a short distance transportation, it is a good option for you. Up to now, the largest capacity can reach to 300T. About us, we utilize advanced technique and superior team to insist on improving it.Our enterprise always keep the quaility concept---- Attentily manucfacturing, keep on improving and elabrately serving to make our customers satisfied.

30t battery powered ladle transfer trolley for hot metal handling in steel plant30t battery powered ladle transfer trolley for hot metal handling in steel plant

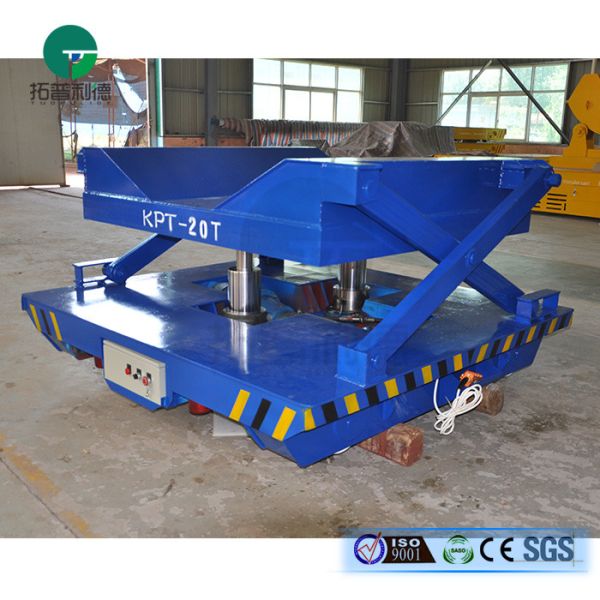

Ladle transfer trolley details

30t battery powered ladle transfer trolley for hot metal handling in steel plant

Parameter of ladle transfer trolley

ModelKPT-2tKPT-20tKPT-50tKPT-100tKPT-150t
Rated Load(t)22050100150
Table Size(mm)Length(L)200040005500650010000
Width(W)15002200250028003000
Heigth(H)4505506508501200
Wheel Base(mm)12002800420049007000
Rail Inner Gauge(mm)12001435143520002000
Wheel Diameter(mm)Φ270Φ350Φ500Φ600Φ600
Wheel Quantity44448
Ground Clearance(mm)5050507575
Running Speed(min)2520202018
Motor Power(kw)0.82.55.51115
Max Wheel Load(KN)14.477.7174343.8265.2
Reference Weight(t)2.35.57.613.926
Recommended Rail ModelP15P24P43QU100QU100

Application of ladle transfer trolley

The motorized transport trailer is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).

30t battery powered ladle transfer trolley for hot metal handling in steel plant

Working principle
KPJ series ladle transport car is powered by AC 380V through the device of cable reel which is installed at the bottom of the cart. The cable can be let out and collected with the cart's moving.

Customer visit of ladle transfer trolley

30t battery powered ladle transfer trolley for hot metal handling in steel plant

Processing of ladle transfer trolley

30t battery powered ladle transfer trolley for hot metal handling in steel plant

Our after-sale service

  • Our commitment: The load bearing safety factor of the transfer trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.


tags:container transport trailer,container transfer trailer
