Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Die Handling Transfer Cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Foundry Motorized by Battery Propelled Automatic Die Handling Transfer Cart For Sale
Power supply :
Battery powered
Material :
steel
Load capacity :
1-300T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Foundry Motorized by Battery Propelled Automatic Die Handling Transfer Cart For Sale

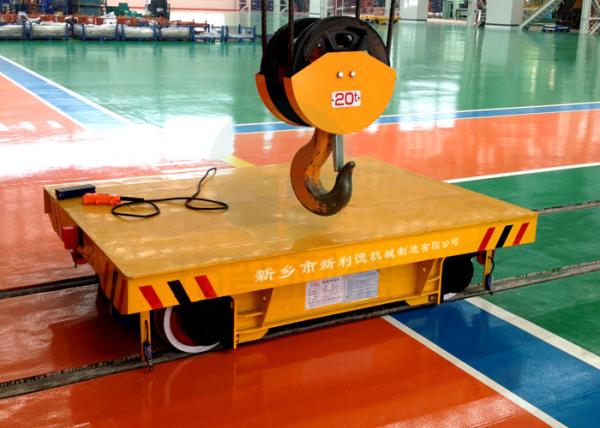

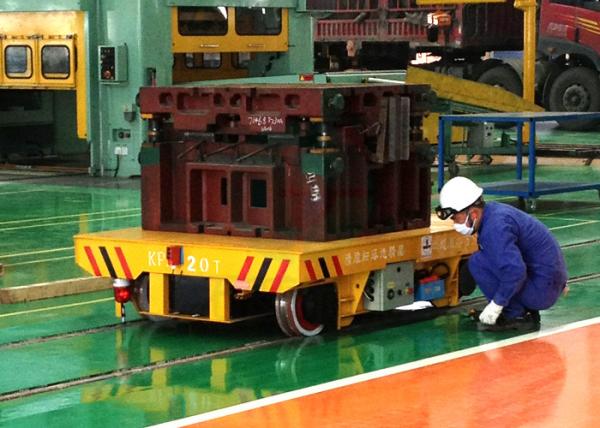

Product Introduction - Die Handling Transfer Cart

The Battery Propelled Automatic Die Handling Transfer Cart is mainly used for mold transfer shifting in industrial production workshops and for mold change. The size and rated lifting capacity of the die handling transfer cart can be designed and manufactured according to the needs of users. The control mode wireless remote control device is optional and can also be automatically controlled. The speed of the die handling transfer cart can be selected by the inverter to control the speed. It can be equipped with an alarm device and an infrared sensor according to the actual working conditions to realize automatic parking of 2 meters for people to ensure the safety of the workshop.

The die handling transfer cart is a kind of track flat cart with the battery as the power source. It can be free from remote control when it is free from the constraints of cables. It is more convenient and safe to use and is suitable for long-distance rail transportation systems.

Foundry Motorized by Battery Propelled Automatic Die Handling Transfer Cart For Sale

Product Details - Die Handling Transfer Cart

Foundry Motorized by Battery Propelled Automatic Die Handling Transfer Cart For Sale

Parameter - Die Handling Transfer Cart

Model

KPX-10T

KPX-30T

KPX-50T

KPX-63T

KPX-150T

Rated load (T)

10

30

50

63

150

Table size

length(L)

3600

4500

5500

5600

10000

Width(W)

2000

2200

2500

2500

3000

Height(H)

500

600

650

700

1200

Wheel Base (mm)

2600

3200

4200

4300

7000

Rail Inner Gauge (mm)

1435

1435

1435

1435

2000

Wheel Diameter(mm)

Φ300

Φ400

Φ500

Φ600

Φ600

Wheel Quantity

4

4

4

4

8

Ground Clearance (mm)

50

50

50

75

75

Running speed (min)

0-25

0-20

0-20

0-20

0-18

Motor Power (Kw)

1.6

3.5

5

6.3

15

Battery Capacity(Ah)

160

250

330

400

600

Battery Voltage(V)

48

48

48

48

72

Running Time When Full Load

4.8

3.5

3.3

3

2.9

Running Distance for one Charge(Km)

7.2

4.2

4

3.6

3.2
