10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley

Specifications

Brand Name :

Topleader

Model Number :

KPJ-10T die transfer trolley

Certification :

CE,ISO9000

Place of Origin :

China

MOQ :

1 set

Price :

$3000-$5000

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

600 sets/year

Delivery Time :

30-40 days after your prepayment

Packaging Details :

The whole die transfer trolley will be packed by the tarp, the parts will be packed by polywood case.

Product name :

10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley

Power supply :

Cable drum

Material :

steel

Load capacity :

1-300T

Running speed :

0-20m/min

Application :

Factory ,warehouse and working line

Warranty :

1 year

Color :

customized

OEM :

Accepted

Description

10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley

Name: 10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley
Brand: Topleader
Price: 3000 USD

10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley 10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley 10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley 10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley

Working Principle of die transfer trolley

The cable drum supply the electricity to the rail mounted die transfer trolley. One end of the electric cable is connected to the electric source, the other end is connected to the reel of the die for supplying electric to die transfer trolleys. The cable drum rolls the electric cable up and develops it automatically when the transfer bed works come and go.

Structure of die transfer trolley

The frame of cable drum powered hydraulic rail vehicle is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system.

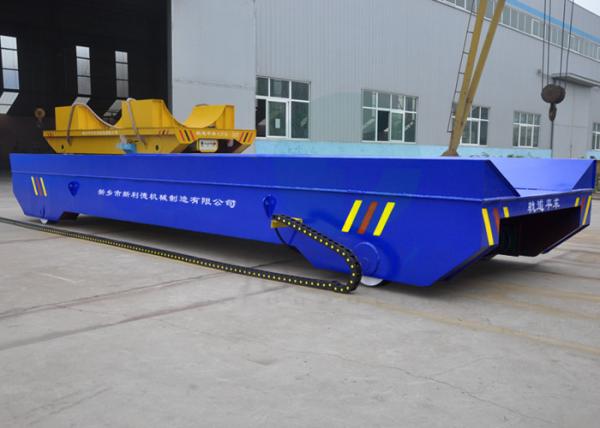

10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley

Photos of die transfer trolley

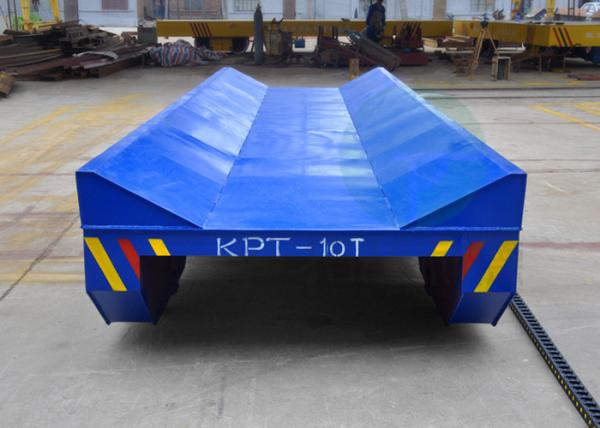

10t Customized Cable Drum Power Electrical Rail Mounted Die Transfer Trolley

Advantages of die transfer trolley

The die transfer trolley can applied to transfer cargoes in more plants or transfer cargoes from one place to another, such as paper coils transportation. It also can be used to fixed working route automatically without operator.

Application of die transfer trolley

The cable drum power die transfer trolley has advantages of simple structure, low cost, no limit on working time. It is suitable to high using frequency working condition without crossing rails, but the running distance is no more than 200m.

Technical parameters of die transfer trolley

Model		KPT-2T	KPT-10T	KPT-20T	KPT-30T	KPT-50T	KPT-63T	KPT-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	1435	2000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Wheel Quantity		4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	75	75
Running speed (min)		0-25	0-25	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
Reference Weight (t)		2.8	4.2	5.9	6.8	8	10.8	26.8
Recommended Rail Model		P15	P18	P24	P38	P43	P50	QU100
