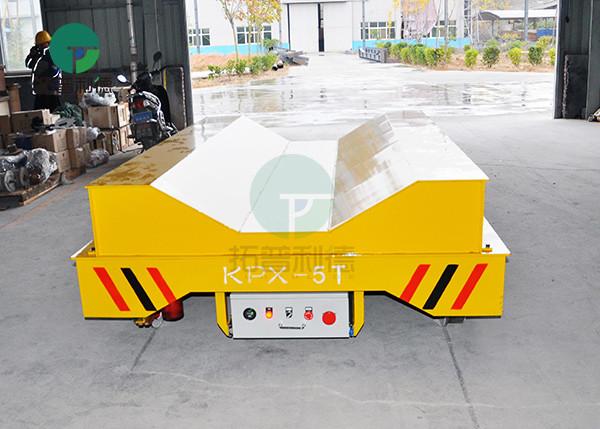

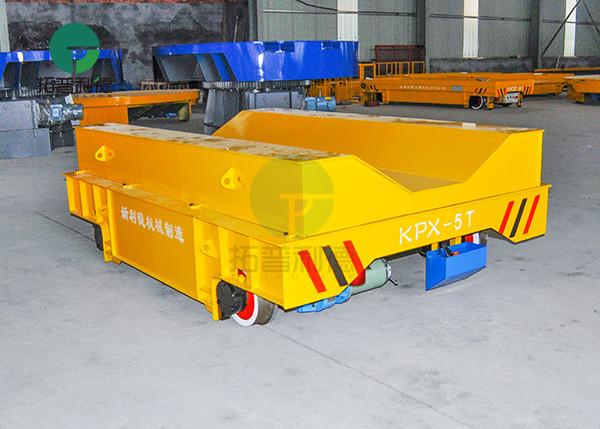

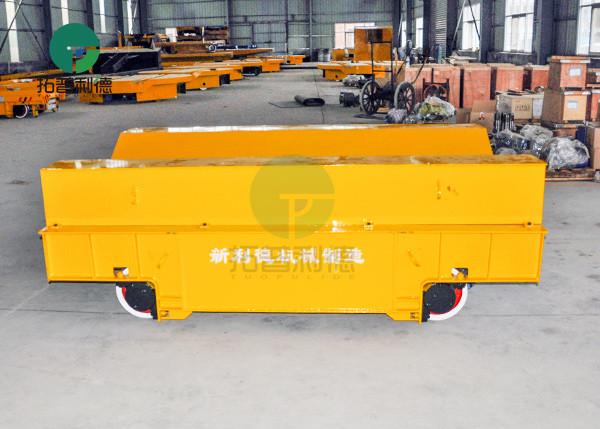

Metal Ore Factory Handling Transport Copper Coil Railway Vehicle

Working principle of copper coil railway vehicle

KPX copper coil vehicle are battery powered. The batteries are installed in the carts. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the carts, for example, start, stop, go forward and backward, adjust the speed and so on.

Description of copper coil vehicle

The DC motor has the advantages of stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on. Compared with the KPJ and KPD flat carts, the KPX series copper coil vehicle are more safe and flexible. The running distance is not limited. It has no strict requirement for the construction of the railway. KPX series copper coil vehicle are suitable to be used in the long distance transportation and low using frequency. The batteries need maintenance once a regular time. The lifetime of the batteries is about 3-5 years.

For the s and arc-shaped rail transfer wagon, the wheels are specially designed so that it is able to run on s and arc-shaped rails. This transfer wagon is electrically powered by battery. The battery can work 4-5 hours with full load.

Storage battery Battery charger Electric control box

Sound & light alarm Remote control Casting wheel

Application of copper coil vehicle

The battery-powered transfer cart is suitable for various industries, steel mill, steel structure, steel pipe, steel billets, steel ladle and coil, etc, transfer steel produce from one location to another.

Technical parameters of production line rail transfer cart

Application of copper coil vehicle

Manufacturing of copper coil vehicle

Delivery of copper coil vehicle

What Product Handling Applications Use Transfer Carts?

1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
