Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000
Place of Origin :
Xinxiang,China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The whole copper coil steerable vehiclewill be packed by the tarp, the parts will be packed by polywood case.
Product name :
Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley
Load capacity :
1-500ton
Power supply :
Storage battery
Size :
customized
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
OEM :
accepted
Key Words :
Copper Coil Steerable Vehicle
Description

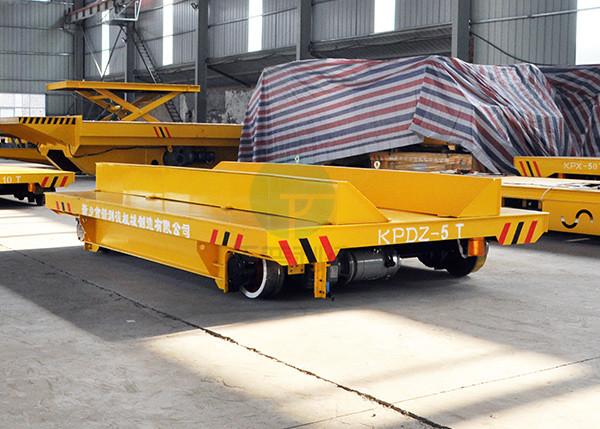

Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley

Working Principle of Copper Coil Steerable Vehicle

KPX Series Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley is battery powered. The batteries are installed in the steerable vehicle. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the electric steerable transfer vehicle, for example, start, stop, go forward and backward, adjust the speed and so on.. The batteries need maintenance once a regular time. The lifetime of the batteries is about 3 - 5 years. The using time after once charge is limited.

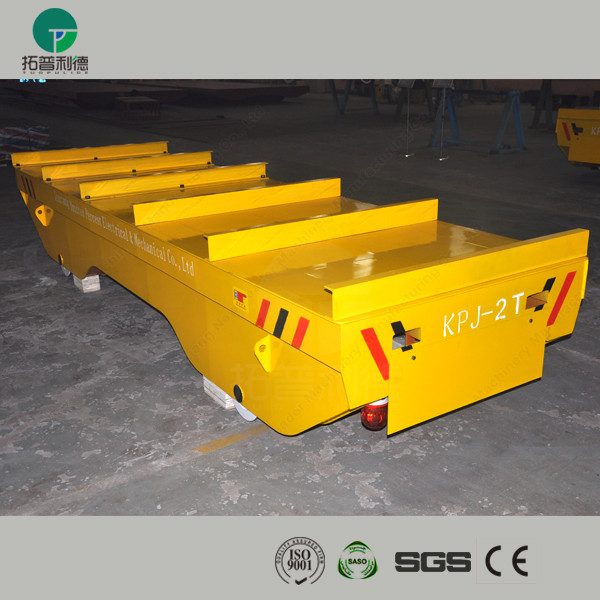

Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley

Main Parts of Copper Coil Steerable Vehicle

Electric Power Control System:It is mainly composed of control switch, voltage converter, warning lamp and conductive transmission device. Its main function is to provide the voltage needed for the operation of copper coil steerable vehicle and ensure its safety.

Driven Control System:It is mainly composed of motor, reducer, roller belt, brake device and brake controller. Its main function is to drive the electric transfer vehicle to slide on the track.

Cart Frame:The frame material is steel structure, the outer surface is 50MM thick high strength steel plate, and the frame is welded.

Others:It include wheel frame, shaft coupling, transmission worm gear, pressure testing tool, or alarm lamp, stop device, explosion-proof device, hydraulic lifting platform device, etc.

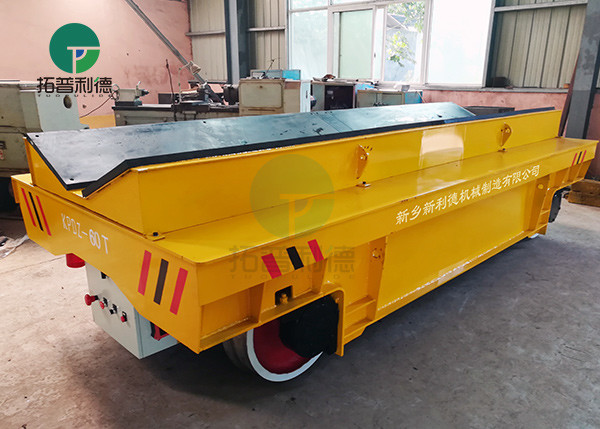

Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley

Application of Copper Coil Steerable Vehicle

This kind of coil steerable vehicle is commonly applied in factory or warehouse to transfer plastic pipes, coils or steel coils.
In order to security, the V-frame is added on the platform of the coil steerable vehicle is protect the coils falling down during transportation.

  • Carry loads along assembly lines;

  • transfer material from one work station to the next;

  • store and transport an entire shift worth of production.

  • They can even be used as a stable yet moveable machine base.

  • Can run between two perpendicular tracks or L-shape track or S-shape track or curved track.


Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley

Technical Parameters of Copper Coil Steerable Vehicle

Model

KPX-2T

KPX-10T

KPX-20T

KPX-30T

KPX-50T

KPX-63T

KPX-150T

Rated load (T)

2

10

20

30

50

63

150

Table size

length(L)

2000

3600

4000

4500

5500

5600

10000

Width(W)

1500

2000

2200

2200

2500

2500

3000

Height(H)

450

500

550

600

650

700

1200

Wheel Base (mm)

1200

2600

2800

3200

4200

4300

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Running speed (m/min)

0-25

0-25

0-20

0-20

0-20

0-20

0-18

Motor Power (Kw)

1

1.6

2.2

3.5

5

6.3

15

Running Time When Full Load(Hours)

4.32

4.8

4

3.5

3.3

3

2.9

Running Distance for one Charge(Km)

6.5

7.2

4.8

4.2

4

3.6

3.2

Max Wheel Load (KN)

14.4

42.6

77.7

110.4

174

221.4

265.2

Reference Weight (t)

2.8

4.2

5.9

6.8

8

10.8

26.8

Recommended Rail Model

P15

P18

P24

P38

P43

P50

QU100


Manufacturing of Copper Coil Steerable Vehicle


Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley

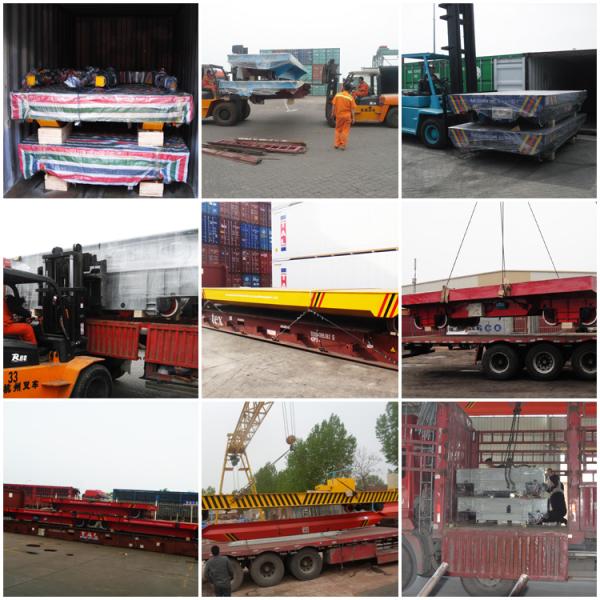

Delivery of Copper Coil Steerable Vehicle

Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley

Customer Visit in Our Factory

Pipe Industry Aluminum Die Transport Copper Coil Steerable Vehicle Load Transfer Trolley
