Specifications
Brand Name :
Topleader
Model Number :
KPX-30T
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The whole coil transfer carts will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials
Power supply :
Storage battery
Size :
Customized
Load capacity :
1-500T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

Working principle of metal industry coil transfer carts


KPX transfer cart is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive transfer cart working.

Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

Main parts of the hydraulic lifting coil transfer carts


Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

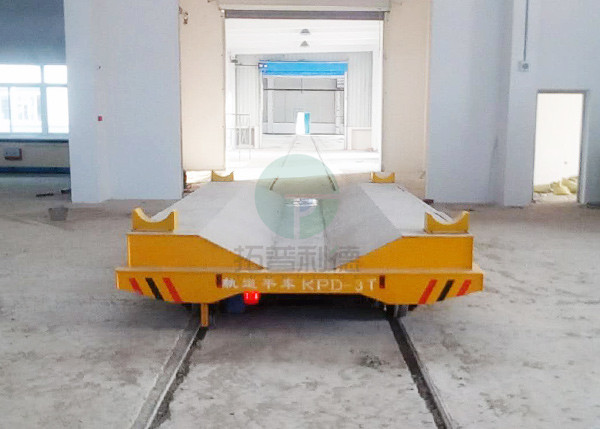

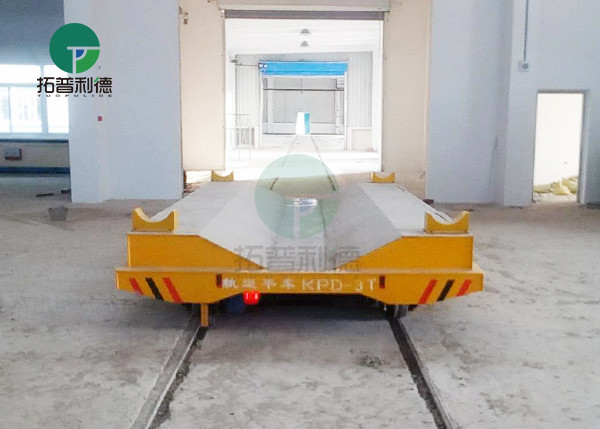

Application of metal industry coil transfer carts

This kind of plastic coils handling transfer cart is commonly applied in factory or warehouse to transfer plastic pipes, coils or steel coils.
In order to security, the V-frame is added on the platform of the transfer cart is protect the coils falling down during transportation.

  • Carry loads along assembly lines;

  • transfer material from one work station to the next;

  • store and transport an entire shift worth of production.

  • They can even be used as a stable yet moveable machine base.

  • Can run between two perpendicular tracks or L-shape track or S-shape track or curved track.


Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

Technical Parameters of coil transfer carts

Model KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (m/min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Running Time When Full Load(Hours) 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100


Manufacturing of coil transfer carts for steel pipes


Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

Delivery of coil transfer carts



Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

Customer visit in our factory from world wide



Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials
Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

Coil transfer carts applied at site in customers' factory



Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

After-sale service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Hydraulic lifting metal industry apply coil transfer carts for steel pipes or cylinder materials

About Us
Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and handling equipment. Our products cover rail transfer car, steerable transfer car, trackless flat cart, bay to bay rail transfer cart, rail wheel, industrial winch, steel rail and rail accessories etc.
