Specifications
Brand Name :
New leader
Model Number :
JM slow speed
Certification :
ISO, CE, SGS, SASO
Place of Origin :
China
MOQ :
1 set
Price :
USD 500-5000/Set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
10 work days
Packaging Details :
The winch put into the high quality wooden case
Place of origin :
Henan
Brand name :
New leader
Model type :
JK, JM
Loading :
0.5-35-ton
Slng type :
steel wire rope
Working speed :
as your needs
Color :
as your needs
Rope capacity :
as your needs
Application :
crane,boat, marine, construction
Electrical band :
Siemens
Control type :
Electrical box
Description

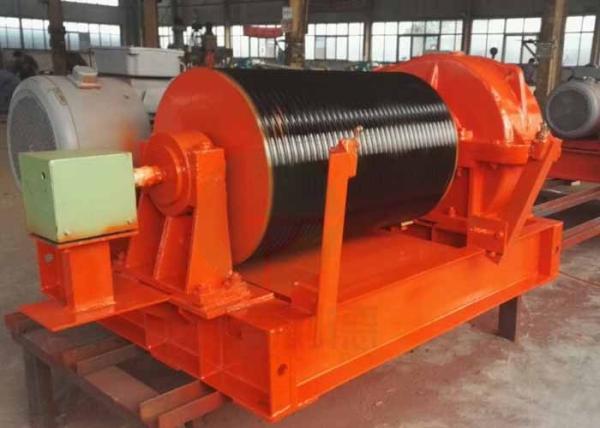

JM model slow speed construction material lifting electric winch 6 ton
JM model slow speed construction material lifting electric winch 6 ton

Brief introduction for electric winch
Winch is driven by human or electric power, winding ropes to complete the traction device for work, which can be vertical, horizontal or inclined pulling heavy objects. Divided into manual and electric winch.
Electric winch is powered by electric, and it composed by electric motor, coupling, brake, gear box,drum and frame.
Electric winch has the JK fast speed and JM slow speed two types, it is also has the single drum and doule drum.
JM model slow speed construction material lifting electric winch 6 ton
Application for electric winch
wire rope pulling steel electric winch is uaually lifitng or pulling middle duty and heavy duty material or cargo.
It is mainly used for material lifting and towing heavy weights for construction building, underground mining, road and bridge construction, factory,mines engineer,harbor,etc.

About this jm model slow speed construction material lifting electric winch 6 ton, it is usually lifitng or pulling middle or heavy duty material or cargo in construction site, shipyard, crane and shipyard.

JM model slow speed construction material lifting electric winch 6 ton

Parameter list of the JM electric winch

Model
JM2
JM3
JM5
JM8
JM10

Line pull capacity (kg)
2000
3000
5000
8000
10000

Wire rope average speed (m/min)
12
10
10
10
9

Wire rope(mm):
12.5
15.5
21.5
26
30

Reduction box
Type
JZQ350
JZQ350
JZQ400
JZQ500
JZQ650

Transmission ratio
23.34
31.5
23.34
31.5
40.17

Drum (mm)
Diameter()
273
325
406
500
550

Length
480
520
645
900
1000

Capacity(m)
150
180
250
300
450

motor
Type
YZ160M2-6
YZ160M2-6
YZ160L-6
YZR225M-8
YZR250M1-8

Power(kW)
7.5
7.5
11
22
30

Rotate speed(r/min)
948
948
953
720
720

Hydraulic Brake
YWZ-200/25
YWZ-200/25
YWZ-300/45
YWZ-300/45
YWZ-300

Equipment Dimension (cm)
142 x96 x62
154 x107 x70
185 x135 x90
205x275x105
220x190x110

Weight(kg)
630
680
1400
3000
4000
JM model slow speed construction material lifting electric winch 6 ton


Advantages of the JK slow speed electric winch

1,It has slow speed ;
2,It usually for middle and heavy duty material;
3,Max rope length reah to 1500m;
4,Widely used in factory,mining or double beam cranes;
5,Compact structure and reasonable design;
6,Top quality with competitive price.

JM model slow speed construction material lifting electric winch 6 ton

Components of the Electric winch

JM model slow speed construction material lifting electric winch 6 ton
Package and delivery


JM model slow speed construction material lifting electric winch 6 ton


About us
Xinxiang New Leader machinery manufacturing Co., Ltd is founded in 2015, which is devoted to sell screening equipment, lifting equipment, conveyor equipment, and handling equipment. Our products cover linear vibrating screen, rotatory vibration screen, hoist, winch, rail transfer car, steerable transfer car, conveyor and related accessories, wheel, motor, reducer etc.
