Specifications
Brand Name :
Topleader
Model Number :
KPX-30T ladle transfer bogie
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The Liquid Steel Ladle Transfer Bogie will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale
Power supply :
Storage battery
Size :
Customized
Load capacity :
1-500T
Running speed :
0-30m/min(adjust)
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
Customized
OEM :
Accepted
Description

Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale


Working Principle of liquid steel ladle transfer bogie


This series Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale is powered by battery. The battery supply power to the DC motor, which is installed inside of transfer bogie body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive transfer bogie working.

Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale

Description of ladle transfer bogie

The ladle transfer bogie use heat insulating material, it can resist the high -temperature. In order to ensure safety and working frequency, the ladle transfer bogie usually prepared two motors, When one is damaged, the other one can be used to continue the work.
This kind of ladle transfer bogie can solve problems with high temperature steel ladle, liquid iron ladle transferring in metallurgy industry.
Ladle transfer bogie is specially designed to transfer the high-temperature ladle. This kind of transfer bogie has strict requirements on safety and anti-high temperature, so the material, driving system and electrical parts of the bogie should be specially designed.


Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale
Storage Battery Battery Charger
Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale
Electric Control Box Sound & Light Alarm

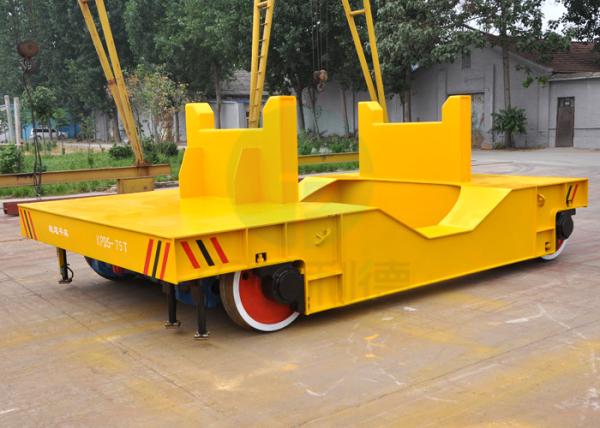

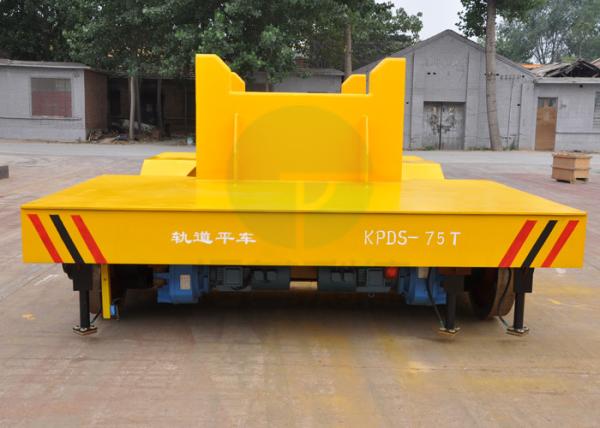

Photos of ladle transfer bogie

Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale


Application of ladle transfer bogie

The steel ladle transfer bogie is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.
In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design.


Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale

Technical parameters of ladle transfer bogie

Model

KPX-20T

KPX-30T

KPX-50T

KPX-63T

KPX-150T

Rated load (T)

20

30

50

63

150

Table size

length(L)

4000

4500

5500

5600

10000

Width(W)

2200

2200

2500

2500

3000

Height(H)

550

600

650

700

1200

Wheel Base (mm)

2800

3200

4200

4300

7000

Rail Inner Gauge (mm)

1435

1435

1435

1435

2000

Wheel Quantity

4

4

4

4

8

Ground Clearance (mm)

50

50

50

75

75

Running speed (min)

0-20

0-20

0-20

0-20

0-18

Motor Power (Kw)

2.2

3.5

5

6.3

15

Running Distance for one Charge(Km)

4.8

4.2

4

3.6

3.2

Max Wheel Load (KN)

77.7

110.4

174

221.4

265.2

Reference Weight (t)

5.9

6.8

8

10.8

26.8

Recommended Rail Model

P24

P38

P43

P50

QU100
