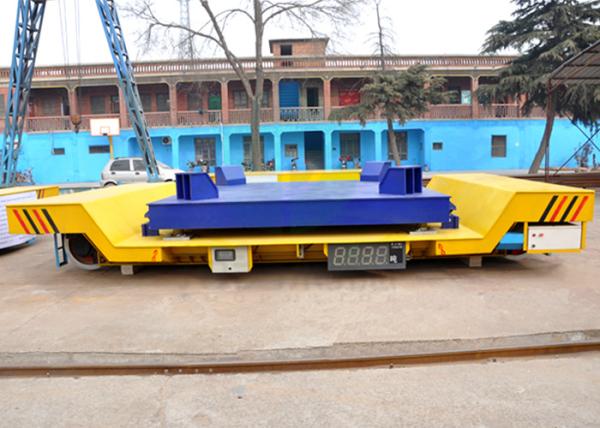

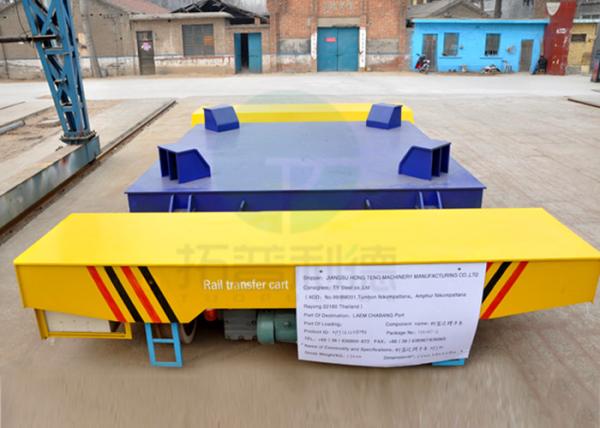

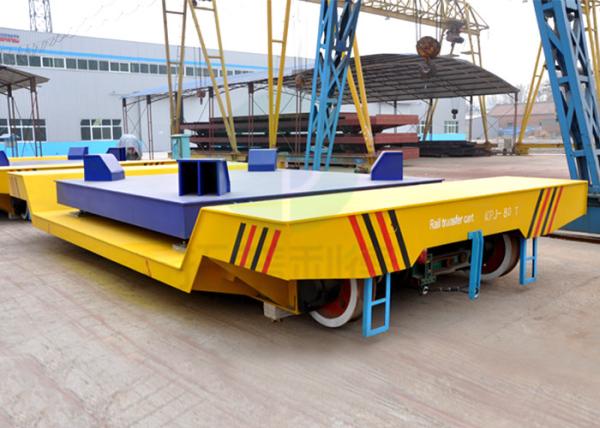

High temperature electric driven steel ladle transfer car on curved rail
High temperature electric driven steel ladle transfer car on curved rail
High temperature electric driven steel ladle transfer car on curved rail
High temperature electric driven steel ladle transfer car on curved rail
High temperature electric driven steel ladle transfer car on curved rail
High temperature electric driven steel ladle transfer car on curved rail
High temperature electric driven steel ladle transfer car on curved rail
High temperature electric driven steel ladle transfer car on curved rail
Specifications
Brand Name :
Topleader
Model Number :
KPX-30T ladle transfer car
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The whole steel ladle transfer car will be packed by the tarp, the parts will be packed by polywood case.
Product name :
high temperature electric driven steel ladle transfer car on curved rail
Power supply :
Storage battery
Material :
steel
Load capacity :
1-300T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

High temperature electric driven steel ladle transfer car on curved rail


Working principle of ladle transfer car


The steel ladle transfer car on curved rail is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive rail ladle car working.

High temperature electric driven steel ladle transfer car on curved rail



Description of ladle transfer car

The ladle transfer car on curved rail use heat insulating material, it can resist the high - temperature. In order to ensure safety and working frequency, the ladle transfer car usually prepared two motors, When one is damaged, the other one can be used to continue the work.

This kind of ladle transfer car can solve problems with high temperature steel ladle, liquid iron ladle transferring in metallurgy industry.

Curved rail ladle transfer car is specially designed to transfer the high-temperature ladle. This kind of cart has strict requirements on safety and anti-high temperature, so the material, driving system and electrical parts of the cart should be specially designed.

High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail
Storage battery Battery Charger
High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail
Electric Control Box Sound & Light Alarm




Photos of ladle transfer car

High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail

High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail


Application of ladle transfer car

The curved rail ladle transfer car is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.

In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design.


High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail

Technical parameters of curved rail ladle transfer car

Model KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Other kind of ladle transfer car

High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail

Manufacturing of curved rail ladle transfer car


High temperature electric driven steel ladle transfer car on curved rail

Delivery of curved rail ladle transfer car


High temperature electric driven steel ladle transfer car on curved rail


Customer visit in our factory from world wide



High temperature electric driven steel ladle transfer car on curved rail
High temperature electric driven steel ladle transfer car on curved rail

Rail transfer cart applied at site in customers' factory



High temperature electric driven steel ladle transfer car on curved rail

After-sale service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Our team

High temperature electric driven steel ladle transfer car on curved rail

Our factory

High temperature electric driven steel ladle transfer car on curved rail
