Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE, ISO9001
Place of Origin :
Xinxiang,CHINA
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole V-deck railway truck will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck
Load capacity :
1-500TON
Key Words :
V-deck railway truck
Running speed :
0-20m/min
Material :
steel
Application :
Factory ,warehouse and working line
Warranty :
1 YEAR
OEM :
Accepted
Description

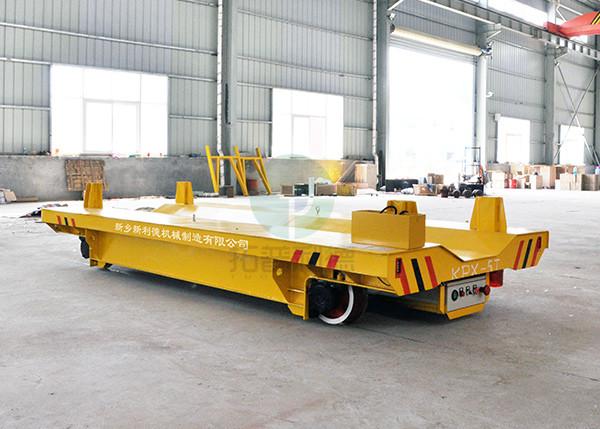

Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck

Brief Introduction --- V-deck railway truck

About the V-deck railway truck, it is powered by battery. This kinds coils transfer self propelled trailer is designed for coils material handling, it equiped V or E frame on the transfer platform to avoid the materials roll down from the trailer.

It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck

Product Details--- V-deck railway truck

Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck

Storage Battery

Battery Charger

Electric Control Box
Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck

Sound & Light Alarm

Remote Control

Casting Wheel

Product Funcation --- V-deck railway truck

1. Load-Bearing Transport

Load-bearing transport is the most basic and important function of self propelled trailer

2. Turning

This series of self propelled trailer have the function of running on S-shaped, C-shaped, curved rails, etc.

3. Lift

The hydraulic lift system can be installed on the self propelled trailer to achieve lifting and other functions

4. Side Flip

The self propelled trailer can realize self-discharging by the hydraulic device

5. Safety Devices

Safety devices can be installed on the transfer trailer, for example, proximity switches, dead man stop, alarm systems, buffers to achieve the corresponding safety functions.

6. Others

Our company can research and develop the corresponding non-standard transfer trailer to achieve the required functions according to the customers’ requirements.

Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck

Advantages --- V-deck railway truck

The self propelled trailer can run on the vertical rails, ”L”rails, “S”rails, arc-shaped rails...

The trailer can be applied in many occasions, such as easy explosion, high temperature, ferry...

DC motor, stable start, starting torque, small impact to gear reducer, low voltage, long lifetime...

This kinds of self propelled trailer is battery powered, so only charged fully, can it run freely without limited distance.

Professional team from Xinxiang New Leader Machinery Manufacturing Co., Ltd, the proper solution can be provided once getting for your inquiry.

The self propelled trailers are customized as per your true demand.

Machinery Factory Wire Coil Motorized Transfer V-deck Railway Truck

Parameter List --- V-deck railway truck

Model

KPX-2T

KPX-5T

KPX-10T

KPX-20T

KPX-30T

KPX-50T

KPX-100T

KPX-150T

Rated load (T)

2

5

10

20

30

50

100

150

Table size(mm)

length

2000

3500

3600

4000

4500

5500

6500

10000

Width

1500

2000

2000

2200

2200

2500

2800

3000

Height

450

500

500

550

600

650

900

1200

Wheel Base (mm)

1200

2500

2600

2800

3200

4200

4900

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

2000

Wheel Diameter(mm)

Φ280

Φ300

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity(Nos)

4

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

50

75

75

Motor Power (Kw)

1

1.2

1.6

2.2

3.5

5

10

15

Battery Capacity (Ah)

180

180

160

180

250

330

440

600

Battery Voltage (V)

24

36

48

48

48

48

72

72

Running speed (m/min)

0-30

0-30

0-25

0-25

0-25

0-20

0-20

0-18

Running Time When Full Load(Hours)

4.32

5.4

4.8

4

3.5

3.3

3.2

3.2

Running Distance for One Charge(Km)

6.5

8.1

7.2

4.8

4.2

4

3.8

3.2

Max Wheel Load (KN)

14.4

25.8

42.6

77.7

110.4

174

343.8

265.2

Reference Weight (t)

2.8

3.6

4.2

5.9

6.8

8

14.5

26.8

Recommended Rail Model

P15

P18

P18

P24

P38

P43

QU100

QU100

Application --- V-deck railway truck

The battery transfer cart for factory material handling, for example, industries, (steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer work piece into the painting room Sand blasting room) Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc
