Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Specifications
Brand Name :
Topleader
Model Number :
mold transfer car
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
1SET
Price :
US$8000-11000 Per unit
Supply Ability :
500 sets/year
Delivery Time :
15-20days
Packaging Details :
the whole on-rail mold transfer car is packaged by tarp, the accessories is packed by wooden case.
Load capacity :
1-300t customized
Application :
foundry plant, mold lplant
Wheel material :
cast steel 55
Table size :
customized
Rail gauge :
standard gauge1435mm, can be customized
Cart frame material :
Q235A
Rail type :
P24,P38.P43, or 50, 60 square bar
Power :
battery
Product Name :
Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
Key Words :
on-rail mold transfer car
Description

Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling

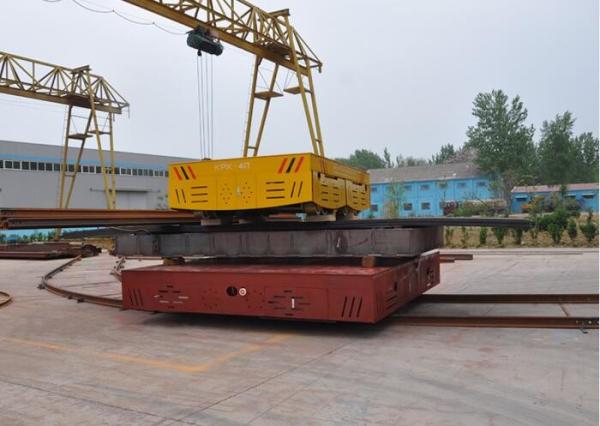

Brief Introduction - On-Rail Mold Transfer Car

Mold transfer car is used for handling mold/die/mould from the production line to finish area.

It runs on the rails and have heavy load capacity. It's powered by battery.

Mold transfer car operating by remote controller to let it start, stop, go forward,backward and adjust the speed.The running distance is not limited, the running time when full load is about 4 hours. Safety device: warning light,photoelectric switch,limit switch, buffer, etc.

Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling

Features - On-Rail Mold Transfer Car

Material transfer

Custom paint color

Option for remote control

4-wheel powered

Long warranty time

Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling

Advantages - On-Rail Mold Transfer Car

Safe and reliable

No runnning distance limitation

Convenient opeation

Friendly environment

Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling

Parameters - On-Rail Mold Transfer Car

Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling

Model

KPX-2t

KPX-5t

KPX-10t

KPX-16t

KPX-20t

KPX-25t

KPX-30t

KPX-40t

KPX-50t

KPX-63t

KPX-80t

KPX-100t

KPX-150t

Table Size(mm)

Length( L)

2000

3500

3600

4000

4000

4500

4500

5000

5500

5600

6000

6500

10000

Width( W)

1500

2000

2000

2000

2200

2200

2200

2500

2500

2500

2600

2800

3000

Heigth( H)

450

500

500

550

550

600

600

650

650

700

800

900

1200

Rail Inner Gauge(mm)

1200

1435

1435

1435

1435

1435

1435

1435

1435

1435

1800

2000

2000

Wheel Quantity

4

4

4

4

4

4

4

4

4

4

4

4

8

Ground Clearance(mm)

50

50

50

50

50

50

50

50

50

75

75

75

75

Running Speed(mm)

0-25

0-25

0-25

0-20

0-20

0-20

0-20

0-20

0-20

0-20

0-20

0-20

0-18

Motor Power(Kw)

1

1.2

1.6

2

2.2

3

3.5

4

5

6.3

8

10

15

Battery Capacity(Ah)

180

180

160

180

180

250

250

300

330

400

400

440

600

Battery Voltage(V)

24

36

48

48

48

48

48

48

48

48

72

72

72

Running Distance for One Charge(Km)

6.5

8.1

7.2

5.1

4.8

4.8

4.2

4.3

4

3.6

4.3

3.8

3.2

Max Wheel Load(KN)

14.4

25.8

42.6

64.5

77.7

94.5

110.4

142.8

174

221.4

278.4

343.8

265.2

Reference Weight(t)

2.8

3.6

4.2

5.5

5.9

6.5

6.8

7.6

8

10.8

12.8

14.6

26.8

Recommended Rail Model

P15

P18

P18

P24

P24

P38

P38

P43

P43

P50

P50

QU100

QU100

Notes.1.Load capacity, table size and rail gauge can be customized. 2.Options: a.Remote radio control (imported or made in China);b. Automatic stop when detecting obstacle or person, limit switches (to limit travel);c.Battery type ( Free of maintenance Battery, lithium battery, explosion-proof battery, and anti- high temperature battery; d motor (DC motor with brush and DC motor brushless ; e. Electrical parts (imported or made in China)

Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling

Application - On-Rail Mold Transfer Car

Our on rail mold transfer car can be widely applied in many fields, such as steel industries (steel coil, hot metal ladle, dies, molds, steel pipes, steel pates, steel bars and other steel parts transport), ship industries, petroleum industries, painting industries, precast concrete factories, quarry plants, transformer plants, turbine plants, paper making plants, coking plants, boiler plants, power station, textile plants, cement factories, machinery factories, construction sites, production line, workshop, warehouse and other fields for materials, workpieces, machines transport from one bay to another.

Foundry Plant Electric Powered On-Rail Mold Transfer Car For Mould Die Handling
