Electric wire rope double drum winch applied in South Africa shipyard
Electric wire rope double drum winch applied in South Africa shipyard
Electric wire rope double drum winch applied in South Africa shipyard
Electric wire rope double drum winch applied in South Africa shipyard
Specifications
Brand Name :
topleader
Model Number :
JM-10
Certification :
CE,ISO,SGS
Place of Origin :
Xinxiang, China
MOQ :
1set
Price :
US$1000
Packaging Details :
The winch is packed by wooden case
Itme name :
Electric wire rope double drum winch applied in South Africa shipyard
Pulling capacity( kn) :
100
Rated speed :
8m/min
Rope capacity :
170
Rope dia :
9
Power :
electric
Description

Electric wire rope double drum winch applied in South Africa shipyard

Brief of double drum winch

Double drum winch is used for shipyard for pulling the ship from water to bank.This series winch is mainly used for the drawing and lifting of longtravel distance of all kinds of large and super large concrete and steel structure and cable.

Electric wire rope double drum winch applied in South Africa shipyard

Features of double drum winch

The characteristic is that the speed of lifting rope is constant and the lifting is smoothly operating.

Application of double drum winch

It is applicable to various bridge, port and dock engineering and construction of large-scale bridge and large factory, power engineering equipment installation.

Technical parameter of double drum winch

Model Rated Load Rated Speed Roped Capacity Rope Diameter Electric Type Electric Power Overall Dimension Total Weight
KN m/min m kw mm kg
JM10 100 10 4800 30 YZR225M-6 30 1980*2650*850 6000
JM16 160 11 4000 34.5 YZR250M2-6 45 3350*1920*1320 9500
JM20 200 11 3600 39 YZR280S-6 55 3500*1960*1320 10000
JM32 320 10 3200 52 YZR280M-6 75 4330*2350*1760 16000

Double drum winch safety device

a. Double Limit Switch

b. Current Overload Protection Function

c. High Quality Polyurethane Materials Buffer

d. Emergency Stop System

e. Weight Overload Protection Device

f. Voltage Lower Protection Function

g. Lifting Mechanism: Explosive-proof electrical hoist

Sketch of double drum winch

Electric wire rope double drum winch applied in South Africa shipyard

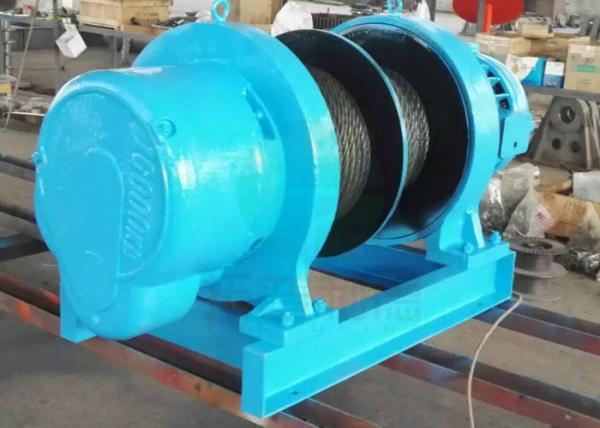

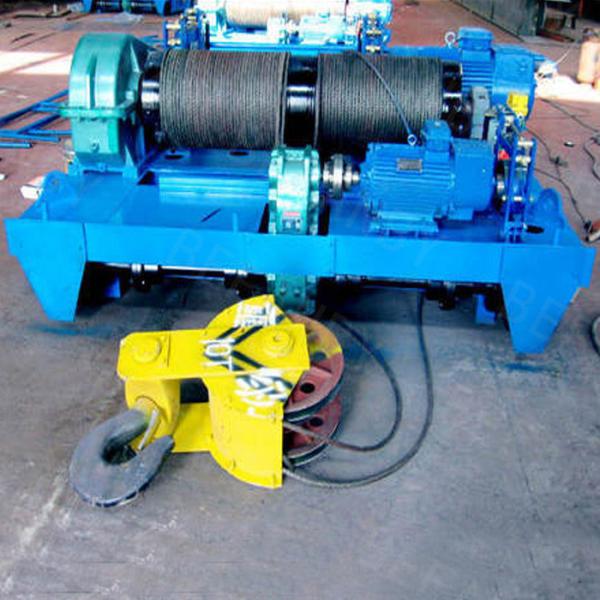

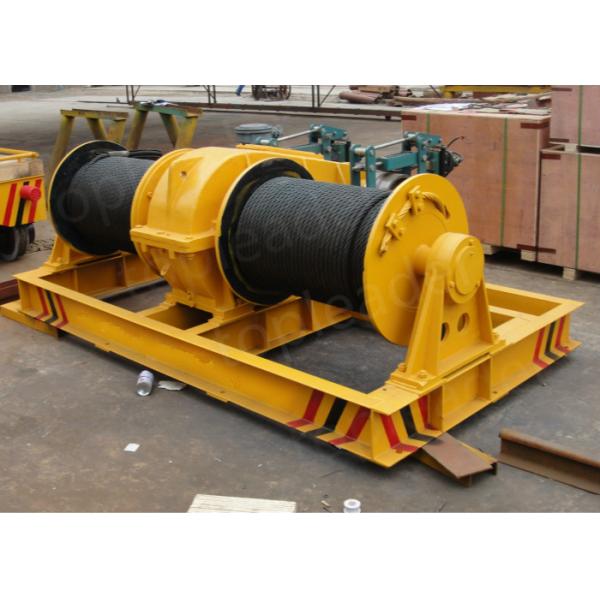

Product photo

Electric wire rope double drum winch applied in South Africa shipyard

Package and shipping

Electric wire rope double drum winch applied in South Africa shipyard

Relative product

Electric wire rope double drum winch applied in South Africa shipyard

Our company

Xinxiang New Leader machinery manufacturing Co., Ltd is founded in 2015, which is devoted to sell screening equipment, lifting equipment, conveyor equipment, and handling equipment. Our products cover linear vibrating screen, rotatory vibration screen, hoist, winch, rail transfer car, steerable transfer car, conveyor and related accessories, wheel, motor, reducer etc.

Electric wire rope double drum winch applied in South Africa shipyard

For winches, there include electric winch, hydraulic, hand winch, construction winch etc.
