5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
Specifications
Brand Name :
topleader
Model Number :
BWP-5T
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
US$20000/set
Supply Ability :
300 SET/MONTH
Delivery Time :
30 DAYS OR SO
Packaging Details :
The whole motorized transfer trolley is packed by tarp, the parts are packed by the wooden case.
Item :
5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
Material :
Q235B
Load capacity :
5000kg
Table size :
4*2, can be customized
Speed :
0-20m/min
Motor :
2*1w
Application :
steel plant
Delivery time :
45 days
Cargo transported :
steel element
Description

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor

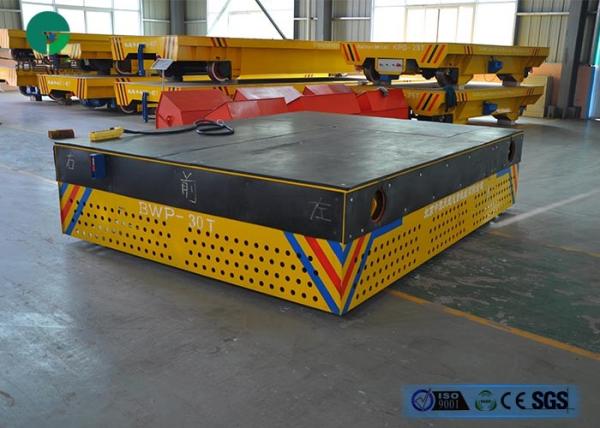

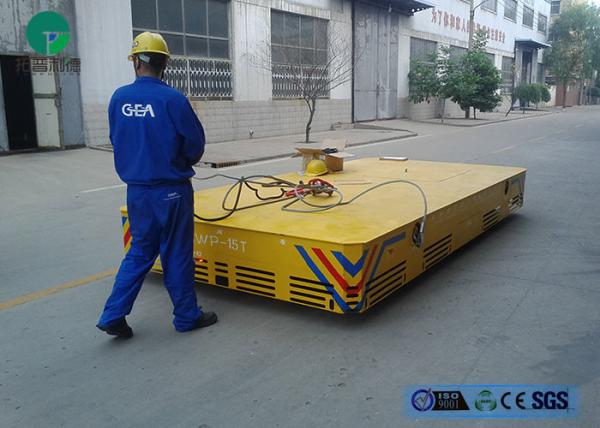

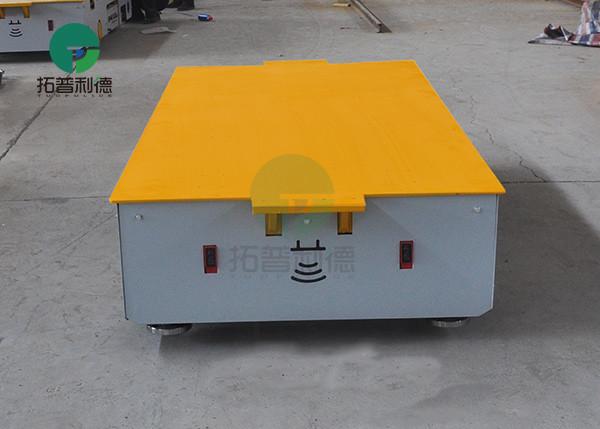

Brief of motorized transfer trolley on cement floor

The motorized transfer trolley on cement floor is a kind of trackless motorized transfer trolley. It is powered by storage battery. The battery is installed in the motorized transfer trolley and we also equip intelligent charger for it. The transfer trolley is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor

Composed parts of motorized transfer trolley on cement floor

Trolley frame, DC motor, speed reducer, electric control box, storage battery, intelligent charger, driving device, fixed wheels, swivel wheels, braking device, controller, remote-controller, speed controller, lighting alarm and sound alarm, operation device and safe detecting device.

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor

Application of motorized transfer trolley on cement floor

Motorized transfer trolley is widely used in automobile production, shipbuilding industry, steel and iron transfer and large-size machine equipment transfer and assembly.

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor

Advantages of motorized transfer trolley on cement floor

It can realize double way moving and 360 degree turning.

No damage to the ground surface painting.

No track constraint.

No railway construction limit and maintenance trouble.

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor

Parameter of motorized transfer trolley on cement floor

Model BWP-5T
Rated Load(t) 5t
Impacted rated load(t) 10
structure of frame steel plates welded beam structure
Thickness of the steel plate 8
Cart weight(t) 3
Wheel load(t) 30
Ground requirement cement ground
Table size(mm) 3600x2000
Height of the whole cart(mm) 530
Space from the ground(mm) 50
Wheels distance 1500
Axles distance 3100
Turning radius(mm) 3100
Turning type turning while driving without stop
Control method for turning control button
Turning structure mechanical
Wheel diameter Ф300/4
Wheel quality polyurethane wheels
Running speed(m/min) 0-15
Brake principle electric magnetic force
Operation method with wire or no wire
Charger motor's installation installed on cart
Function of charger motor automatic charging
Warning equipment sound and light


Package and shipping

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor

Client visit our factory

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor 5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor 5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor 5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor

tags:mold transport trailer,mold trailer

5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor 5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor 5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor 5t Steel Mill Workshop Material Handling Motorized Transfer Trolley On Cement Floor
