Specifications
Brand Name :
topleader
Model Number :
JM-3T
Certification :
CE,SGS
Place of Origin :
Xinxiang, Henan
MOQ :
1SET
Price :
US$1500
Delivery Time :
15 days or so
Packaging Details :
Standard exporting package
Item :
Single drum slow speed wire rope electric winch manufacturer
Pulling capacity :
3t
Driven type :
AC type
Speed :
8m/min
Type :
electric
Modle :
JB-3T
Control type :
electrical box
Color :
customized
Description

Single drum slow speed wire rope electric winch manufacturer

Electric winch brief:

There are two type in this series, small pull capacity and large pull capacity.Large pull capacity mostly are applicable to port building, traction of shipyard, steel structure transport and assemble, disassemble, pulling machines.Small pull capacity mostly are applicable for construction, lifting, disassembly, traction, assembly in construction company, mine, factory and so on.

Small pulling capacity standard configuration

3ton with 180m wire rope,

motor power 7.5kw,

speed: 10m/min,

wire rope dia: 16mm

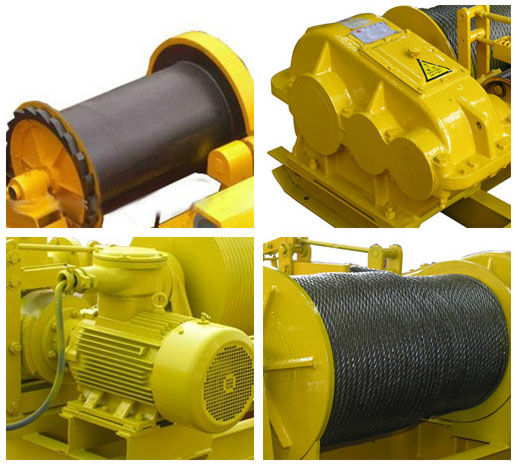

Electric winch parts

Single drum slow speed wire rope electric winch manufacturer in China

Parameter of electric winch


Model
JM2
JM3
JM5
JM8
JM10

Line pull capacity (kg)
2000
3000
5000
8000
10000

Wire rope average speed (m/min)
12
10
10
10
9

Wire rope(mm):
12.5
15.5
21.5
26
30

Reduction box
Type
JZQ350
JZQ350
JZQ400
JZQ500
JZQ650

Transmission ratio
23.34
31.5
23.34
31.5
40.17

Drum (mm)
Diameter()
273
325
406
500
550

Length
480
520
645
900
1000

Capacity(m)
150
180
250
300
450

motor
Type
YZ160M2-6
YZ160M2-6
YZ160L-6
YZR225M-8
YZR250M1-8

Power(kW)
7.5
7.5
11
22
30

Rotate speed(r/min)
948
948
953
720
720

Hydraulic Brake
YWZ-200/25
YWZ-200/25
YWZ-300/45
YWZ-300/45
YWZ-300

Equipment Dimension (cm)
142 x96 x62
154 x107 x70
185 x135 x90
205x275x105
220x190x110

Weight(kg)
630
680
1400
3000
4000

Sketch drawing of electric winch

Single drum slow speed wire rope electric winch manufacturer in China

Electric winch adavantages

1,It has slow speed ;
2,It usually for middle and heavy duty material;
3,Max rope length reach to 1500m;
4,Widely used in factory,mining or double beam cranes;
5,Compact structure and reasonable design;
6,Top quality with competitive price.

Package and delivery

The electric winch usual package is wooden case and then is covered by tarp.

Single drum slow speed wire rope electric winch manufacturer in China

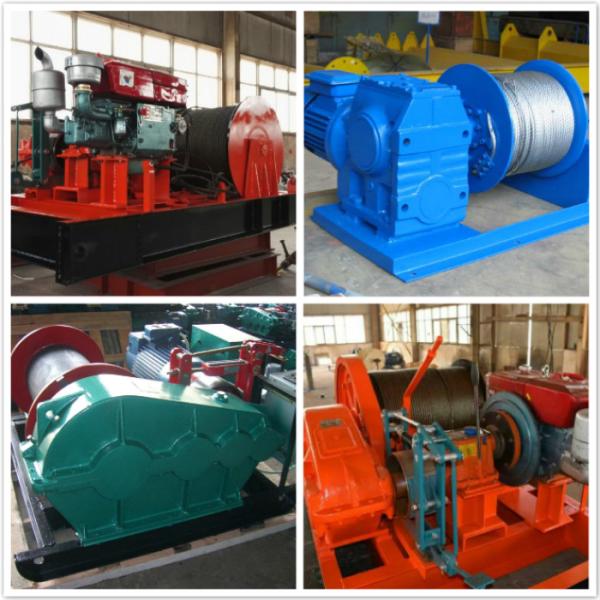

Other type electric winch

Single drum slow speed wire rope electric winch manufacturer in China

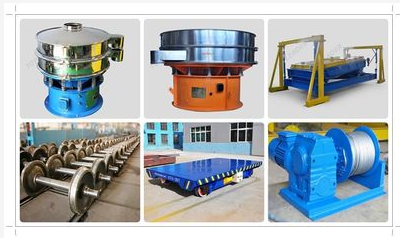

About us

Xinxiang New Leader machinery manufacturing Co., Ltd is founded in 2015, which is devoted to sell screening equipment, lifting equipment, conveyor equipment, and handling equipment. Our products cover linear vibrating screen, rotatory vibration screen, hoist, winch, rail transfer car, steerable transfer car, conveyor and related accessories, wheel, motor, reducer etc.
