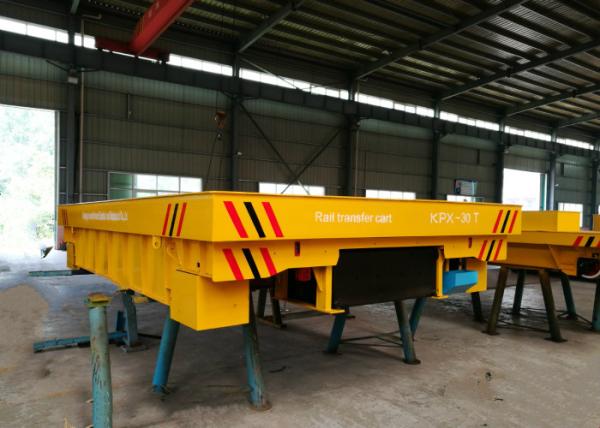

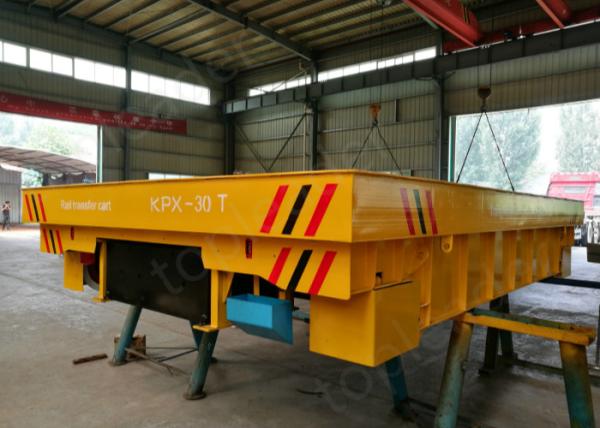

Sand mold handling rail transfer wagon applied in the foundry plant
Sand mold handling rail transfer wagon applied in the foundry plant
Sand mold handling rail transfer wagon applied in the foundry plant
Sand mold handling rail transfer wagon applied in the foundry plant
Specifications
Brand Name :
Topleader
Model Number :
mold transfer car
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
1SET
Price :
US$8000-11000 Per unit
Supply Ability :
500 sets/year
Delivery Time :
35-40days
Packaging Details :
the whole cart is packaged by tarp, the accessories is packed by wooden case.
Load capacity :
1-300t customized
Application :
foundry plant, mold lplant
Wheel material :
cast steel 55
Table size :
customized
Rail gauge :
standard gauge1435mm, can be customized
Cart frame material :
Q235B
Rail type :
P24,P38.P43, or 50, 60 square bar
Power :
battery
Color :
customized
Description

Sand mold handling rail transfer wagon applied in the foundry plant

Brief of rail transfer wagon

Rail transfer wagon is used to transfer sand mold from one bay to another in foundry plant. It needs to increase the heat insulated protection.According to client special demand, we design the rail transfer wagon with activate table. To conveniently replace the battery,we installed the battery on the side of the wagon and add sliding design and ensure the battery fast replace.

Features of rail transfer wagon

Mold transfer car

Custom paint color

Run on rails

Cast steel wheel

Pendant control or remote control

Advantages of rail transfer wagon

Safe and reliable

No runnning distance limitation

Convenient opeation

Friendly environment

Parameters of rail transfer wagon

Technical Parameters for KPX Series Rail Transfer Carts Powered by Battery
Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size(mm) Length( L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width( W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth( H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter(mm) Ф270 Ф300 Ф300 Ф350 Ф350 Ф400 Ф400 Ф500 Ф500 Ф600 Ф600 Ф600 Ф600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(Kw) 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3 8 10 15
Battery Capacity(Ah) 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage(V) 24 36 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Running Distance for One Charge(Km) 6.5 8.1 7.2 5.1 4.8 4.8 4.2 4.3 4 3.6 4.3 3.8 3.2
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight(t) 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
Notes.1.Load capacity, table size and rail gauge can be customized. 2.Options: a.Remote radio control(imported or made in China);b. Automatic stop when detecting obstacle or person, limit switches(to limit travel);c.Battery type( Free of maintenance Battery,lithium battery,explosion-proof battery,and anti- high temperature battery; d motor(DC motor with brush and DC motor brushless ; e.Electrical parts(imported or made in China)

Application of rail transfer wagon

Stamping plant, steel mill, metallurgy factory, foundry industry, cold mill factory.

Our company

Xinxiang New Leader Machinery Manufacturing company has won the great fame by its clients with the excellent design and advanced technology of transfer carts, besides that, it is also believed to be the long cooperate partners by its customers with the perfect after-sale service.

In order to provide the best price for you,please provide the following information:

1.Cart payload, power supply mode,table size and travelling distance

2. The cart runs on rails or cement floor?

3.If you cann't choose the model,please let us know how do you use the cart, we will recommend the suitable cart for you according to your actual condition.
