Specifications
Brand Name :
Topleader
Model Number :
KPJ
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$4000-$10000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Self Propelled Interbay Transfer Car will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling
Power supply :
Cable drum
Keyword :
Self Propelled Interbay Transfer Car
Load capacity :
1-300T
Running speed :
20m/min
Application :
Factory ,warehouse and working line
Warranty :
12 months
Color :
Light yellow
OEM :
Accepted
Description

Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling

Introduction for factory material transfer platform self propelled interbay transfer car

KPJ Series Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling powered by electric cable reel, the cable reel for the hysteresis coupled to ensure the cable easy to pull by force even worse. Cable Reels 380V power supply to the flat car YZ lifting motor to provide power metallurgy. Self propelled interbay transfer car to run automatically when the cable reel cable roll up or release, by the power cord length of tube effect. Normal maximum operating distance of less than 200m.

Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling

Features of self propelled interbay transfer car

This series self propelled interbay transfer car is suitable to be applied in the bed environment, for example, high-temperature and anti-explosion condition.

Compared with KPX (battery power) series transfer car, the using time is unlimited.

​Compared with KPD (conductor rail power) series transfer car, this series interbay transfer car has no strict requirement for the construction of the rails.

Compared with KPT (towed cable power) series transfer car, the cost is low.

Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling

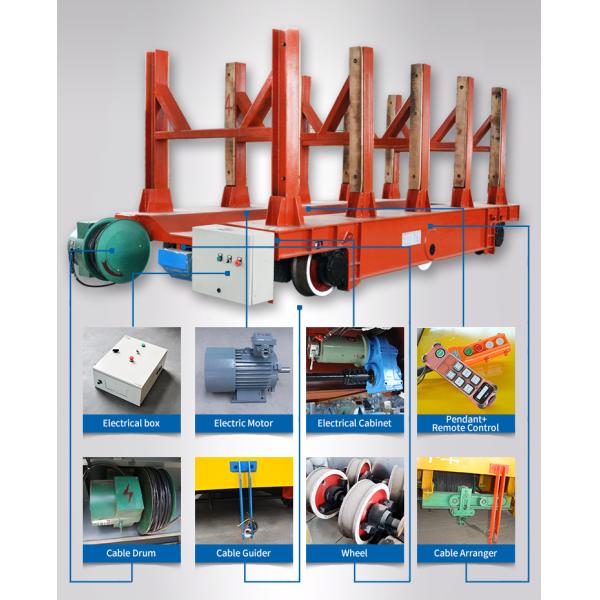

Parts Show of self propelled interbay transfer car

Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling

Technical Parameter of self propelled interbay transfer car

Model

KPJ-2T

KPJ-10T

KPJ-20T

KPJ-30T

KPJ-50T

KPJ-63T

KPJ-150T

Rated load (T)

2

10

20

30

50

63

150

Table size

length(L)

2000

3600

4000

4500

5500

5600

10000

Width(W)

1500

2000

2200

2200

2500

2500

3000

Height(H)

450

500

550

600

650

700

1200

Wheel Base (mm)

1200

2600

2800

3200

4200

4300

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Running speed (min)

0-25

0-25

0-20

0-20

0-20

0-20

0-18

Motor Power (Kw)

1

1.6

2.2

3.5

5

6.3

15

Battery Capacity(Ah)

180

160

180

250

330

400

600

Battery Voltage(V)

24

48

48

48

48

48

72

Running Time When Full Load

4.32

4.8

4

3.5

3.3

3

2.9

Running Distance for one Charge(Km)

6.5

7.2

4.8

4.2

4

3.6

3.2

Max Wheel Load (KN)

14.4

42.6

77.7

110.4

174

221.4

265.2

Reference Weight (t)

2.8

4.2

5.9

6.8

8

10.8

26.8

Recommended Rail Model

P15

P18

P24

P38

P43

P50

QU100

Applications

The factory material transfer platform self propelled interbay transfer car is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure).

Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling

Customer Visit

Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling

Processing Line

Factory Material Transfer Platform Self Propelled Interbay Transfer Car on Rails for Coil Handling
