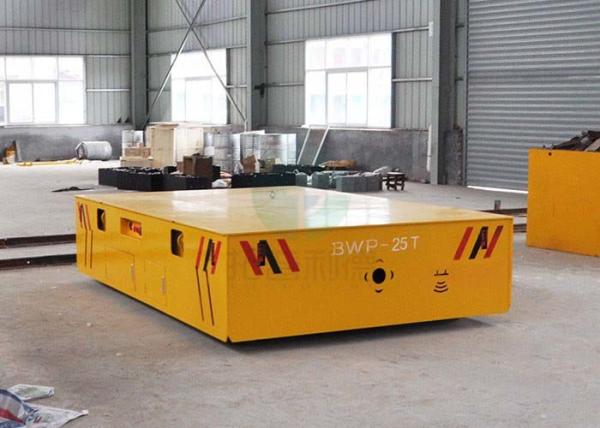

25t trackless flat transfer cart on cement floor with polyurethane wheel
25t trackless flat transfer cart on cement floor with polyurethane wheel
25t trackless flat transfer cart on cement floor with polyurethane wheel
25t trackless flat transfer cart on cement floor with polyurethane wheel
25t trackless flat transfer cart on cement floor with polyurethane wheel
25t trackless flat transfer cart on cement floor with polyurethane wheel
25t trackless flat transfer cart on cement floor with polyurethane wheel
25t trackless flat transfer cart on cement floor with polyurethane wheel
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$15000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after receive your prepayment
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
25t trackless flat transfer cart on cement floor with polyurethane wheel
Power supply :
battery
Material :
Q235 Steel plate and PU wheel
Load capacity :
25t
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
12 month
Color :
yellow
Battery type :
Lead acid battery
Description

25t trackless flat transfer cart on cement floor with polyurethane wheel

Working principle of 25t trackless flat transfer cart


25t trackless flat transfer cart is powered by lead acid battery. The battery is installed in the transfer cart and we also equip intelligent charger for it. The 25t trackless flat transfer cart is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.

Trackless flat transfer car has different movement track, so the price do. The small table size trackless flat transfer car generally use the lithium battery and cos will be higer than ordinary battery.

25t trackless flat transfer cart on cement floor with polyurethane wheel


Description of 25t trackless flat transfer cart

The 25t trackless flat transfer cart is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.

The driving wheel and load wheel of trackless car is high strength PU wheel. It is wear-resistance, and has low maintain cost.

The functions of the 25t trackless flat transfer cart including 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons. It has operating platform and can make the operator stand on the carriage to operate.

25t trackless flat transfer cart on cement floor with polyurethane wheel

25t trackless flat transfer cart on cement floor with polyurethane wheel

Main parts photo of 25t trackless flat transfer cart


25t trackless flat transfer cart on cement floor with polyurethane wheel 25t trackless flat transfer cart on cement floor with polyurethane wheel 25t trackless flat transfer cart on cement floor with polyurethane wheel
25t trackless flat transfer cart on cement floor with polyurethane wheel 25t trackless flat transfer cart on cement floor with polyurethane wheel 25t trackless flat transfer cart on cement floor with polyurethane wheel

Application of 25t trackless flat transfer cart


This kind of 25t trackless flat transfer cart is commonly applied in factory workshop or warehouse to transfer materials, such as injection mold, steel coil, machine parts.aluminium coil etc.


25t trackless flat transfer cart on cement floor with polyurethane wheel

Technical parameters of 25t trackless flat transfer cart

Model BWP-25T
Rated Load(t) 25 t
Impacted rated load(t) 45
structure of frame steel plates welded beam structure
Thickness of the steel plate 14
Cart weight(t) 8.8
Wheel load(t) 7.7
Ground requirement cement ground
Table size(mm) 5000x2200
Height of the whole cart(mm) 650
Space from the ground(mm) 50
Wheels distance 1700
Axles distance 4300
Turning radius(mm) 4300
Turning type turning while driving without stop
Control method for turning control button
Turning structure mechanical
Wheel diameter Ф400/4
Wheel quality polyurethane wheels
Running speed(m/min) 0-12
Brake principle electric magnetic force
Operation method with wire or no wire
Charger motor's installation installed on cart
Function of charger motor automatic charging
Warning equipment sound and light lamp

Manufacturing of 25t trackless flat transfer cart​


25t trackless flat transfer cart on cement floor with polyurethane wheel

Delivery of 25t trackless flat transfer cart


25t trackless flat transfer cart on cement floor with polyurethane wheel

Our sale performance

No. Exported countries Product name Product model Quantity Unit
1 Thailand Rail transfer cart KPDZ-16T 2 sets
2 Germany Battery power transfer car KPX-10T 2 sets
3 Syria Battery power transfer car KPX-120T 1 set
4 Syria Battery power transfer car KPX-30T 1 set
5 Turkey Battery power transfer car KPX-40T 3 sets
6 South Africa Battery power transfer car KPX-6T 2 sets
7 Nepal Battery power transfer car KPX-6T 2 sets
8 Singapore Cable power transfer car KPJ-15T 1 set
9 Singapore Cable power transfer car KPJ-10T 1 set
10 Singapore Towed transfer car KP-15T 1 set
11 Mongolia Cable power transfer car KPJ-30T 2 sets
12 Saudia Arabia Cable power transfer car KPX-60T 2 sets
13 Austrilia Battery power transfer car KPX-60T 1 set
14 Singapore Hoist trolley HB-4T 1 set
15 Singapore Hoist trolley HB-15T 2 sets
16 India Battery power transfer car KPX-20T 1 set
17 Singapore Electric turntable 2 sets
18 Mexico cable power transfer car KPJ-60T 1 set
19 Turkey cable power transfer car KPJ-10T 1 set
20 Saudia Arabia Busbar powered transfer car KPC-10T 1 set
In order to protect clients' information, client's company names keep secret

Customer visit in our factory from worldwide



25t trackless flat transfer cart on cement floor with polyurethane wheel

Our client feedback25t trackless flat transfer cart on cement floor with polyurethane wheel

RFQ FOR 25t trackless flat transfer cart

1.table size, payload?

2.turning radius you allowed?

3.Indoor or outdoor?

4.Min height for the operation platform
