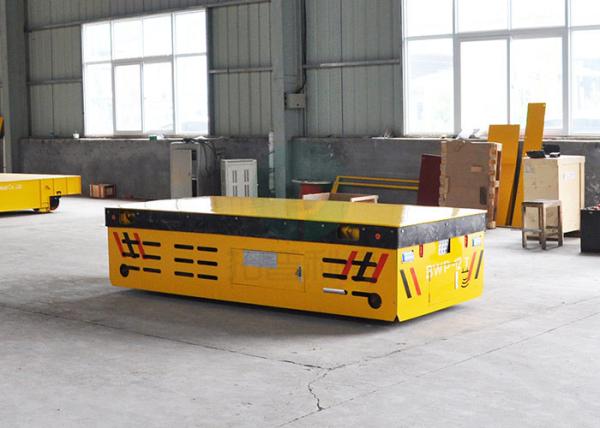

25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$15000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after receive your prepayment
Packaging Details :
The whole battery operated transport cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
Power supply :
battery
Material :
Q235 Steel plate and PU wheel
Load capacity :
25t
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
12 month
Color :
yellow
Battery type :
Lead acid battery
Description

25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another


Working principle of battery operated transport cart

Battery operated transport cart is powered by lead acid battery. The battery is installed in the transfer cart and we also equip intelligent charger for it. The battery operated transport cart is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.

25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another

Description of battery operated transport cart


The battery operated transport cart is composed of motor, reducer, electric appliance box and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.

The driving wheel and load wheel of trackless car is high strength PU wheels. It is wear-resistance, and has low maintain cost.


25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another

Advantage of battery operated transport cart


The functions of the battery operated transport cart including 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons. It has operating platform and can make the operator stand on the carriage to operate.

25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another

Main parts photo of trackless flat transfer cart

Trackless transfer flat cart has different movement track, so the price do.The small table size trackless flat transfer cart generally use the lithium battery and cos will be higer than ordinary battery.

The battery operated transport cart can increase night light, collision strip for safety operation.


25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another 25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another 25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another
25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another 25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another 25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another


Application of battery operated transport cart


This kind of battery operated transport cart is commonly applied in factory workshop or warehouse to transfer materials, such as injection mold, steel coil, machine parts.aluminium coil etc.

The die and mould transfer car is mainly used in steel mills, aluminum plant, lead factory, other high temperature and metallurgy industry.


25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another


Technical parameters of Battery operated transport cart

Model

BWP-25T

Rated Load(t)

25t

Impacted rated load(t)

35

structure of frame

steel plates welded beam structure

Thickness of the steel plate

10

Cart weight(t)

5

Wheel load(t)

5.5

Ground requirement

cement ground

Table size(mm)

5000x2200

Height of the whole cart(mm)

650

Space from the ground(mm)

50

Wheels distance

1700

Axles distance

4300

Turning radius(mm)

4300

Turning type

turning while driving without stop

Control method for turning

control button

Turning structure

mechanical

Wheel diameter

Ф400/4

Wheel quality

polyurethane wheels

Running speed(m/min)

0-12

Brake principle

electric magnetic force

Operation method

with wire or no wire

Charger motor's installation

installed on cart

Function of charger motor

automatic charging

Warning equipment

sound and light lamp

Delivery of battery operated transport cart


25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another

Customer visit in our factory from worldwide


25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another

Our client feedback

25 Ton Battery Operated Transport Cart For Steel Mold Handling From One Bay To Another

RFQ for battery operated transport cart

1.table size, payload?

2.turning radius you allowed?

3.Indoor or outdoor?

4.Min height for the operation platform
