Specifications
Brand Name :
Topleader
Model Number :
KPX-5T
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after your prepayment
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
5 t motorised railway bogie price for steel mill coil movement
Power supply :
Storage battery
Material :
steel
Load capacity :
1-300T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

5 t motorised railway bogie price for steel mill coil movement


Working principle of motorised railway bogie


KPX motorised railway bogie get the power from the battery installed in car. The battery can be lead acid battery or lithium battery.It can transport cargo, workpiece or equipment from one building to another on the fixed routine. It is very popular with customer because no cable, safety and easy operation.


Description of motorised railway bogie

The whole motorised railway bogie is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.

The motorised railway bogie are our company’s patented products which can run on the rails ‘S’, arc-shaped and so on.The turning radius is small and the turning is stable and flexible.

Our superiority is that we don’t use the traditional complex mechanical structure for the turning and controlling. The thing we do is to optimize structure of the driving parts. By this method, the cost can be greatly reduced, so does the maintenance work.



5 t motorised railway bogie price for steel mill coil movement 5 t motorised railway bogie price for steel mill coil movement 5 t motorised railway bogie price for steel mill coil movement

Storage battery Battery charger Electric control box
5 t motorised railway bogie price for steel mill coil movement 5 t motorised railway bogie price for steel mill coil movement 5 t motorised railway bogie price for steel mill coil movement

Sound & light alarm Remote control Casting wheel


Application of electrmotorised railway bogie

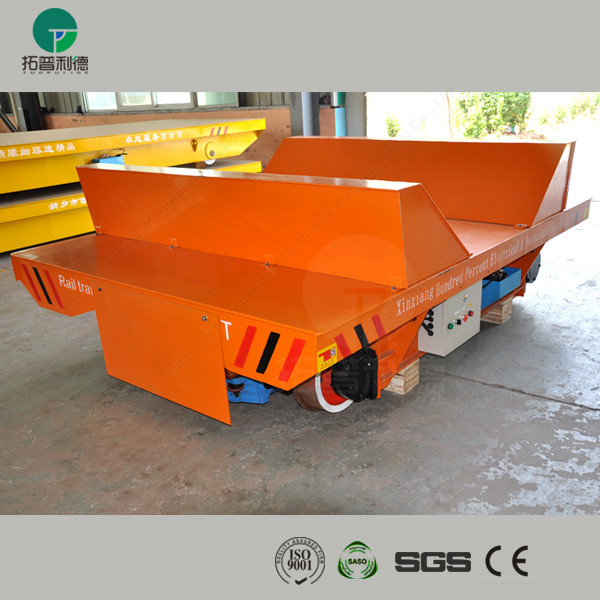

This kind of rail flat car with V-frame for production line is commonly applied in factory or warehouse to transfer heavy materials, such as steel workpiecs, machine parts etc.



5 t motorised railway bogie price for steel mill coil movement

Technical parameters of motorised railway bogie

Model KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100


Application of motorised railway bogie

5 t motorised railway bogie price for steel mill coil movement 5 t motorised railway bogie price for steel mill coil movement

5 t motorised railway bogie price for steel mill coil movement 5 t motorised railway bogie price for steel mill coil movement

Manufacturing of motorised railway bogie
5 t motorised railway bogie price for steel mill coil movement
Delivery of motorised railway bogie

5 t motorised railway bogie price for steel mill coil movement

Customer visit in our factory from world wide


5 t motorised railway bogie price for steel mill coil movement


After-sale service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

Our factory

5 t motorised railway bogie price for steel mill coil movement
