Specifications
Brand Name :
Topleader
Model Number :
KPD-10T
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$11000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
40 days after your prepayment
Packaging Details :
The whole electric rail cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
10T Bangladesh steel plant using electric rail cart powered by 36v low voltage
Power supply :
Low voltage 36v
Material :
steel
Load capacity :
1-300T
Running speed :
20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

10T Bangladesh steel plant using electric rail cart powered by 36v low voltage

working principle

10t electric rail cart powered by the 36V single-phase (three phase) low voltage rail, which through sliding wire to complete. Ground step-down transformer control cabinet will be single phase (three phase) AC 380V step-down to single-phase (3Phase) 36V, sent to the flat car by the rail sliding wire, and then step-up (three phase) single-phase AC 380V by step-up transformers on the car, provide electricity for the single-phase capacitor motors which used in the car.

10T Bangladesh steel plant using electric rail cart powered by 36v low voltage10T Bangladesh steel plant using electric rail cart powered by 36v low voltage

Functions & Advantages of 10t electric rail cart

  • 10t electric rail cart is Anti-high temperature,Anti-high explosion;

  • 10t electric rail cart is powered by low voltage electricity from the railway;

  • With lifting holes, 10t electric rail cart is convenient to shipment;

  • The 10t electric rail cart has a feature of stable start, big starting power, long lifetime;

10T Bangladesh steel plant using electric rail cart powered by 36v low voltage

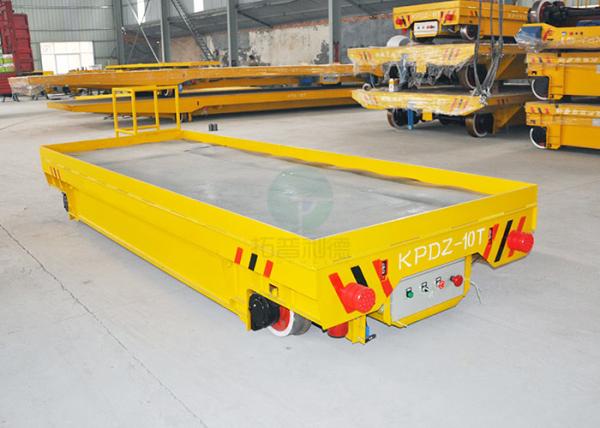

Technical Parameters of 10t electric rail cart

Model KPDZ-10T
Rated Load(t) 10
Table size(mm) 5000*2500*650
Wheel Base(mm) 3800
Rail Gauge(mm) 1435
Wheel Diameter(mm) Ф500
Wheel Quantity(Pcs) 4
Ground Clearance(mm) 50
Running Speed(m/min) 0-20
Motor Power(Kw) 4
Transformer Power(KVA) 10
Transformer Quantity(Set) 1
Running Distance(m) 60
Max Wheel Load(KN) 60
Reference Weight(t) 3
Recommended Rail Model P24

Application of 10t electric rail cart

10t electric rail cart is applied in Bangladesh steel mill to transfer steel coils, metallurgy coils. With hydraulic lifting device, it can lift up or put down the coils freely.
For convenience, hot metal transfer cart in shot blast booth is remore control. In order to ensure operator' safety, the V- frame can be added on the platform of the cart.

This kind of rail cart is applied in paper industry to transfer paper coils from production to warehouse.
We can recommend you a suitable V-frame to you according to the coil dimension, coil weight, etc.


10T Bangladesh steel plant using electric rail cart powered by 36v low voltage
10T Bangladesh steel plant using electric rail cart powered by 36v low voltage

Producing line

10T Bangladesh steel plant using electric rail cart powered by 36v low voltage

Details

10T Bangladesh steel plant using electric rail cart powered by 36v low voltage

Packing & Delivery

Packing Details : The whole painting line use transfer cart carriage is packed by the tarp, the parts will be packed by polywood case
Delivery Details : 50 days or so

10T Bangladesh steel plant using electric rail cart powered by 36v low voltage

Customers

10T Bangladesh steel plant using electric rail cart powered by 36v low voltage10T Bangladesh steel plant using electric rail cart powered by 36v low voltage

Our After Services

tags:rail vehicle for dies,track vehicle for dies

  • Our commitment: The load bearing safety factor of the steel plant using electric rail cart is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our steel plant using electric rail cart can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
