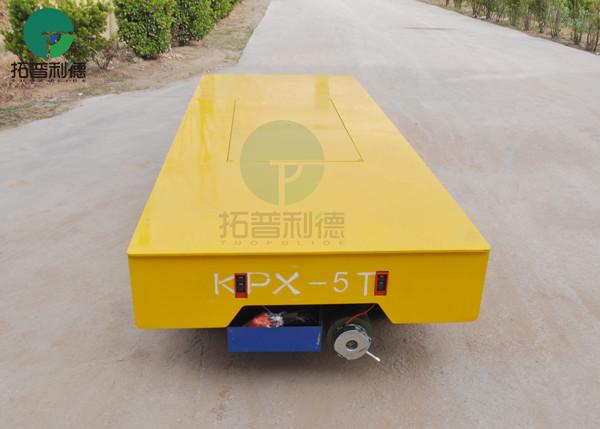

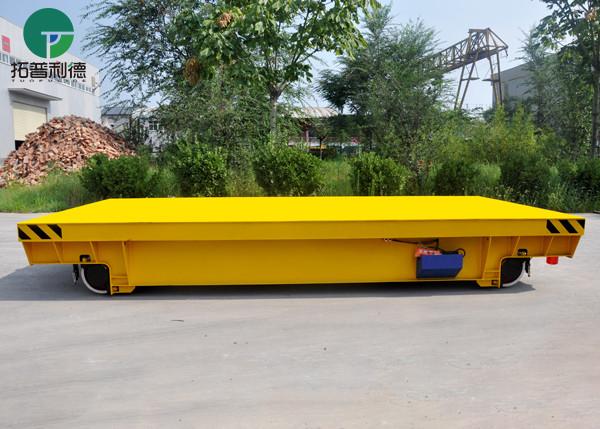

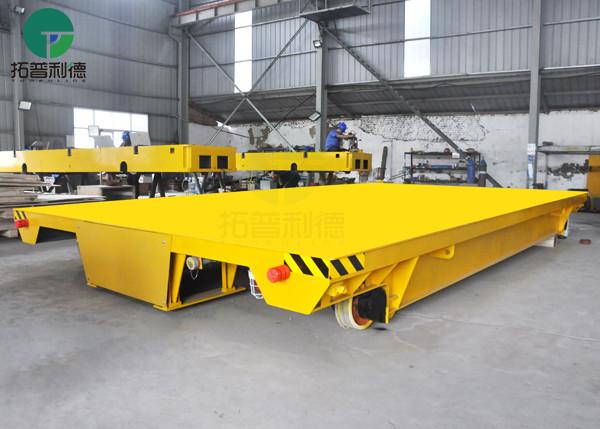

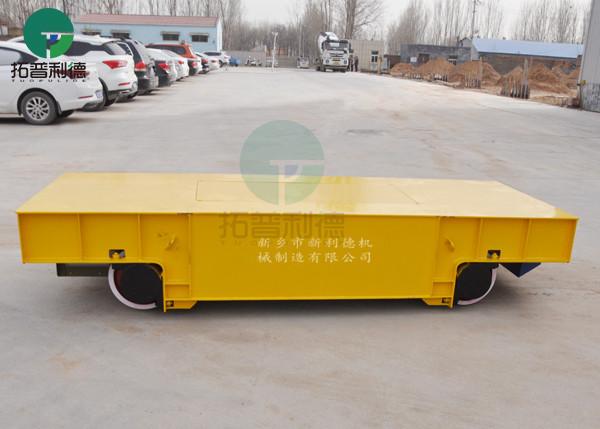

Coal factory motorised 45t handing electric rail transfer cart

Brief Introduction --- Low Voltage Railway Power Electric Transfer Cart

The KPD series electric transfer carts offer superior performance thanks to their strong structure design and quality components like brake systems and steering mechanisms etc., ensuring smooth operation even under harsh conditions like rain or snowfall. As the equipment does not use cables, will not interfere with cross transportation, the cart to achieve remote control operation and automatic driving control, so that the factory workshop and warehouse area of the traffic arrangement is very convenient, the operation of the workers has been a guarantee, the car on the track laying requirements, the track embedded power supply line is copper wire, through the track to send electricity to the flat car, The ground transformer control converts the single-phase or three-phase AC 380V voltage drop to single-phase or three-phase 36V voltage.
We design and plan the product plan for customers one to one. Users can consult the configuration and parts of electric flat car online, and also visit the factory to communicate, to provide you with a more detailed plan.

Advantages --- Low Voltage Railway Power Electric Transfer Cart

1. The rail transfer cart has the advantages of long distance transport and high frequency;
2. With safety and mobility;
3. The rail transfer cart can be used in S-shaped track, curved track and high temperature occasions;
4. Hydraulic lifting system can be installed on the rail transfer cart.

Requirements for track installation

(1) The resistance between the orbitals is not less than 10 ohms. Because the rail should be insulated. The bottom of the rail is supposed to be coated with asphalt, with a 5mm insulating rubber plate, and the two sides of the rail should be filled with asphalt sand.

(2) The actual voltage on the 36V track should not be greater than 42V. It is not anvisable for the line to be less than 30V when the line is not started, otherwise the compensation line must be added.

(3) If it is a seam rail, the rail joint should be 5mm×45 degrees chamfering, so as not to collide with the lower edge of the electric friction block. Our company uses the track used for welding.

(4) The track construction requirements are high, must ensure that the track insulation, can be unobstructed power supply, forbid metal parts to touch two tracks at the same time.

Parameter List --- Low Voltage Railway Power Electric Transfer Cart

Application --- Low Voltage Railway Power Electric Transfer Cart

The product complies with the JB/T6127-2010 machinery industry standard, has a high degree of intelligence, and has the advantages of compact structure, beautiful appearance, automation, accurate positioning, stable operation, strong climbing ability, long driving distance, safety and environmental protection, simple operation, and easy maintenance.It is suitable for transportation in various environments, and is widely used in aerospace, metallurgy, coal, heavy industry, shipbuilding, light industry and other fields.

Shipping --- Low Voltage Railway Power Electric Transfer Cart

About Us--- Low Voltage Railway Power Electric Transfer Cart

tags:rail trailer,transport trailer
