Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Towed Cable Rail Transfer Electric Transport Trolley
Specifications
Brand Name :
Topleader
Model Number :
KPT
Certification :
CE,ISO9000
Place of Origin :
Xinxiang,CHINA
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Steerable Plant Transfer Truck will be packed by the tarp, the parts will be packed by polywood case.
PRODUCT NAME :
Towed Cable Rail Transfer Electric Transport Trolley
Material :
steel
Load capacity :
1-1500TON
Application :
Factory ,warehouse and working line
Power supply :
mobile cable powered
Running speed :
0-20m/min
Key Words :
electric transport trolley
Description

Towed Cable Rail Transfer Electric Transport Trolley

Brief Introduction

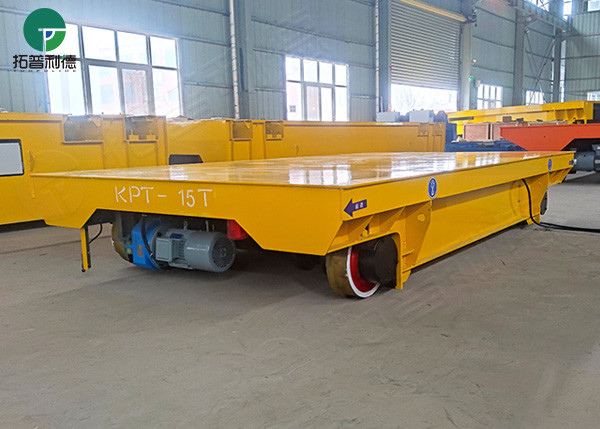

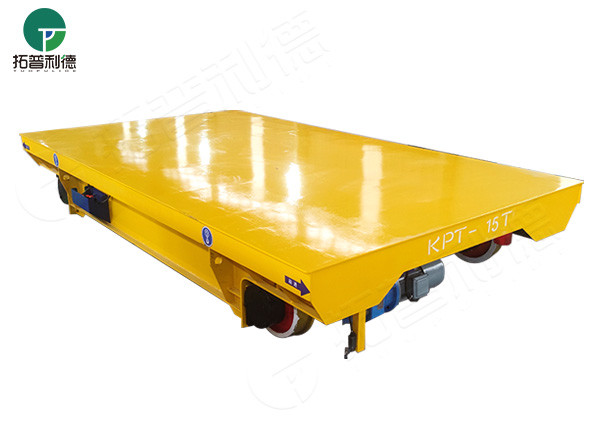

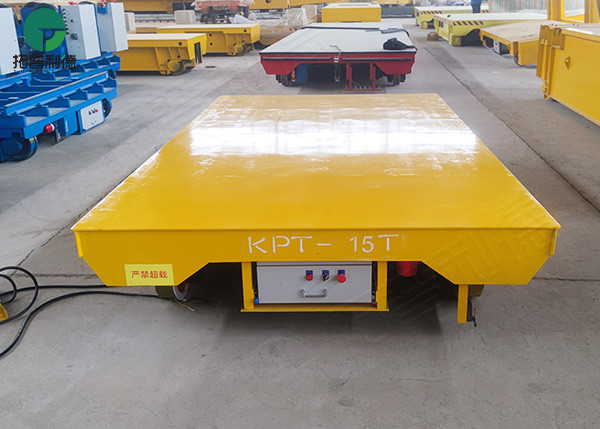

Towed cable rail transfer electric transport trolley has the advantages of simple structure and low cost. The electric flat car is powered by cables, which are placed on the ground and dragged by the flat car to provide power to the transfer trolley. Tow chain is used with cable, can greatly reduce the ground cable wear degree. Tow chains are available in a variety of styles.

Cable powered rail car is a common flat rail cart for short distance over span in workshop. Electric transfer cart suitable for handling a variety of goods, whether in the factory, warehouse or port, is a good choice.

Towed Cable Rail Transfer Electric Transport TrolleyTowed Cable Rail Transfer Electric Transport TrolleyTowed Cable Rail Transfer Electric Transport Trolley

Product Details

Towed Cable Rail Transfer Electric Transport Trolley

Support Customization

Towed Cable Rail Transfer Electric Transport Trolley

Advantages

Towed Cable Rail Transfer Electric Transport Trolley

Parameter List

Model

KPT-2T

KPT-5T

KPT-10T

KPT-20T

KPT-30T

KPT-50T

KPT-100T

KPT-150T

Rated load (T)

2

5

10

20

30

50

100

150

Table size

length(L)

2000

3500

3600

4000

4500

5500

6500

10000

Width(W)

1500

2000

2000

2200

2200

2500

2800

3000

Height(H)

450

450

500

550

600

650

850

1200

Wheel Base (mm)

1200

2500

2600

2800

3200

4200

4900

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

2000

Wheel Diameter(mm)

Φ270

Φ300

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity(Nos)

4

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

50

75

75

Running speed (m/min)

0-30

0-30

0-25

0-25

0-25

0-20

0-20

0-18

Motor Power (Kw)

0.8

1.5

1.5

2.5

4

5.5

11

15

Max Wheel Load (KN)

14.4

25.8

42.6

77.7

110.4

174

343.8

265.2

Reference Weight (t)

2.5

3.5

4

5.6

6.5

7.8

14.1

26.2

Recommended Rail Model

P15

P18

P18

P24

P38

P43

QU100

QU100

Towed Cable Rail Transfer Electric Transport Trolley
