Flatbed Trackless Electric Trailer Mover 35 Tons
Flatbed Trackless Electric Trailer Mover 35 Tons
Flatbed Trackless Electric Trailer Mover 35 Tons
Flatbed Trackless Electric Trailer Mover 35 Tons
Flatbed Trackless Electric Trailer Mover 35 Tons
Flatbed Trackless Electric Trailer Mover 35 Tons
Flatbed Trackless Electric Trailer Mover 35 Tons
Flatbed Trackless Electric Trailer Mover 35 Tons
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after your prepayment
Packaging Details :
The whole transfer cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Flatbed Trackless Electric Trailer Mover 35 Tons
Power supply :
Storage battery
Load capacity :
1-1500T
Running speed :
0-20m/min
Application :
Factory ,warehouse and industry
Warranty :
1 year
Color :
customized
OEM :
Accepted
Keywords :
electric trailer mover35 tons
Description

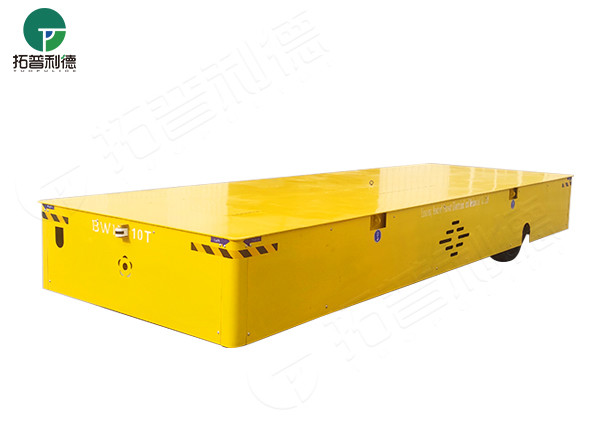

Flatbed Trackless Electric Trailer Mover 35 Tons

Product Introduction

The super long table of the flatbed trackless electric trailer mover 35 tons is customized for transporting the longer steel plate. Electric trackless cart is battery powered (can choose lithium battery), we provide point battery is maintenance-free, fully save the maintenance cost. The wheels of the steerable motor trolley are polyurethane coated wheels, and the motor can drive the wheels to rotate in all directions, so the running path of the flat car is more flexible.

Our trackless cart can be operated by remote control. The operation method is very simple. And we will also provide careful training service and after-sales service, fully ensure that customers can skillfully use electric transfer cart.


Flatbed Trackless Electric Trailer Mover 35 Tons

Parts Details

Flatbed Trackless Electric Trailer Mover 35 Tons

Flatbed Trackless Electric Trailer Mover 35 Tons


Application

Flatbed Trackless Electric Trailer Mover 35 Tons


Technical Parameters

Model BWP-2T BWP-5T BWP-10T BWP-15T BWP-20T BWP-25T BWP-30T BWP-40T BWP-50T BWP-60T BWP-70T BWP-80T BWP-100
Rated load(t) 2 5 10 15 20 25 30 40 50 60 70 80 100
Table Size Length(L) 2000 2200 2300 2400 2400 3500 3500 5000 5500 5600 6000 6500 6600
Width(W) 1500 2000 2000 2100 2200 2200 2200 2500 2600 2500 2600 2800 3000
Heigth(H) 450 500 550 600 600 700 700 800 800 850 900 950 1200
Wheel Base(mm) 1080 1650 1650 1600 1650 1650 1650 2000 2000 1800 1850 1950 2000
Axle Base(mm) 1380 1680 1700 1830 1850 2700 2700 3600 2850 2900 3500 3500 4000
Wheel Dia.(mm) Φ250 Φ300 Φ350 Φ400 Φ400 Φ450 Φ450 Φ500 Φ600 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 6 6 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 2*1.2 2*1.5 2*2.2 2*3.5 2*4.5 2*5.5 2*5.5 2*6.3 2*7.5 2*10 2*12 30 40
Batter Capacity(Ah) 250 180 250 330 400 400 450 440 500 600 600 800 1000
Battery Voltage(V) 24 48 48 48 48 48 48 72 72 72 72 72 72
Running Time When Full Load 2.5 2.88 2.8 2.3 2.2 1.8 2 2.6 2.5 2.2 1.8 2 1.9
Running Distance for One Charge(Km) 3 3.5 3.4 2.8 2.7 2.2 2.4 3.2 3 2.7 2.2 2.4 2.3
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 152 185 190
Reference Wight(t) 2.3 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

Advantages

Flatbed Trackless Electric Trailer Mover 35 Tons


Production Process


Flatbed Trackless Electric Trailer Mover 35 Tons

Packing&Shipping


Flatbed Trackless Electric Trailer Mover 35 Tons

Our Company

Flatbed Trackless Electric Trailer Mover 35 Tons
Flatbed Trackless Electric Trailer Mover 35 Tons

Flatbed Trackless Electric Trailer Mover 35 Tons

Flatbed Trackless Electric Trailer Mover 35 Tons


After-sale Service

  • Flatbed Trackless Electric Trailer Mover 35 Tons
