Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$4000-$10000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole transfer cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
roller table battery powered transfer trolley on rail
Power supply :
battery power
Size :
Customized
Load capacity :
1-1500T
Function :
roller
Application :
Factory,warehouse and working line
Warranty :
1 year
Color :
Customized
Materials :
Steel
Description

Roller Table Battery Powered Transfer Trolley On Rail

Brief Introduction

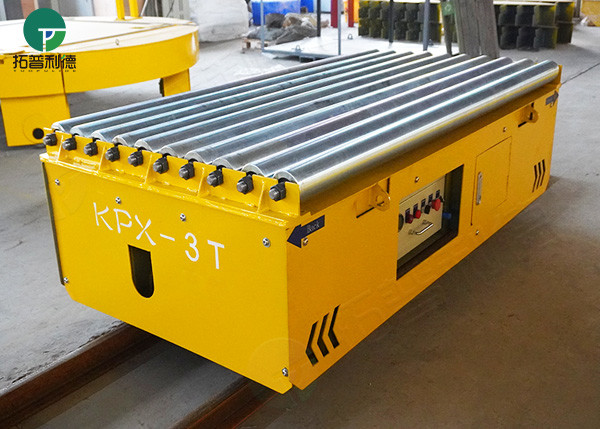

Roller table is installed on the table of the roller table battery powered transfer trolley on rail, which is suitable for use in the production line. The load capacity of this electric cart is 3 tons. The transfer electric trolley runs on the installed track. We are equipped with remote control device, the staff can operate the rail transfer cart on the track to the station point, and then stop, and operate the roller table rotation on the flat car to transport the goods on the line.

There are many types of roller to choose from, depending on the application of the transfer cart and the goods to be transported. Our roller electric car can transport plate, coils, etc.

We have many years of custom experience, you just need to tell us your needs, we will design the most suitable transfer cart for you.

Roller Table Battery Powered Transfer Trolley On Rail

Features and Advantages

Roller Table Battery Powered Transfer Trolley On Rail

Parameter List

Model KPX-2T KPX-5T KPX-10T KPX-16T KPX-20T KPX-25T KPX-30T KPX-40T KPX-50T KPX-63T KPX-80T KPX-100T KPX-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai lnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia. (mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3 8 10 15
Batter Capacity(Ah) 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage(V) 24 36 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Running Distance for One Charge(Km) 6.5 8.1 7.2 5.1 4.8 4.8 4.2 4.3 4 3.6 4.3 3.8 3.2
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
