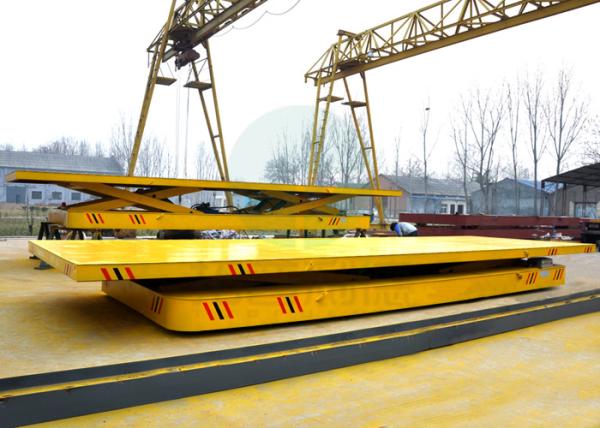

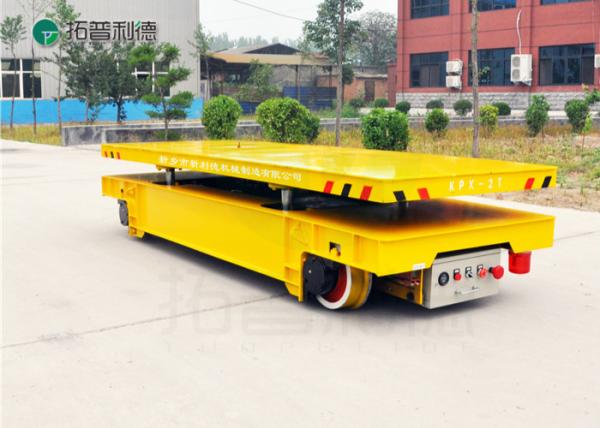

Cable Reels Powerded Motorized Material Handling 20 Ton Transfer Cart with Hydraulic Lifting

Brief Introduction --- 20 Ton Transfer Cart

The Cable Reels Powerded Motorized Material Handling 20 Ton Transfer Cart with Hydraulic Lifting is an electric driven material transfer cart which is running on the rails. It equied with hydraulic lifiting system.

It is designed for material handling from one bay to another in the working site. As the transfer carts are equipped with steel wheels and move on steel rails, and the very low friction between steel and steel, the electric transfer carts are suited to very high loading capacities.

Working Principle --- 20 Ton Transfer Cart

The 20 ton transfer cart is the cable reels powered, the transfer vehicle gets power AC 380v through the device of cable reel, and the motor is controlled by the power through AC control system that make the transfer cart to start, stop, go forward, backward, adjust the speed and so on.

To avoid damage to the cable, add a cable reel as a retracting/discharging device. Due to the limitation of the cable, it is suitable for a short-distance rail transportation system, but its structure is simple and the price is low. Therefore, it is also a common rail transportation equipment in the workshop.

The power supply can be customized according as your true demands, such as battery powered, low voltage rail powered, busbar powered, etc.

Performance Characteristics --- 20 Ton Transfer Cart

Bay to bay commonly used carts - This series of carts are mainly used in high temperature, harsh, explosion-proof occasions, is the frequent use of the track across the common rail cart.

Metallurgical Motor - Y series metallurgical motor is suitable for frequent starting.

Cable Reel - With a large adjustment range for take-up torque, constant tension after adjustment and stability, good synchronization performance.

Self-Locking Ability, No Cable Slipping - Reasonable structure arrangement, easy installation, use, maintenance, stable and reliable performance.

Parameter List --- 20 Ton Transfer Cart

The parameter is just for reference. All of the transfer cart can be customized as per demands.

Application --- 20 Ton Transfer Cart

The transfer cart is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), work piece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (poly crystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
