Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$15000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after receive your prepayment
Packaging Details :
The whole Die Electric Transfer Vehicle will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Power supply :
Storage battery
Material :
Q235 Steel plate and PU wheel
Load capacity :
1-100T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling

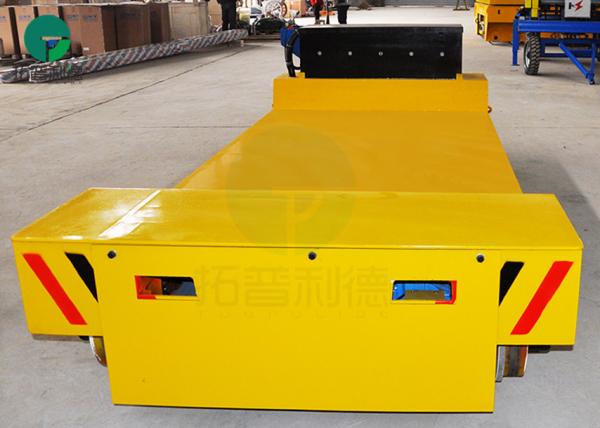

Product Description for Die Electric Transfer Vehicle

The die electric transfer vehicle is an electric material handling rail car that is powered by a battery and driven by a motor. The electric power is an important energy source that is environmentally friendly, clean, and has a high conversion rate. The electric power is used to drive the vehicle. Renewal, promote low-carbon development of the transportation industry, reduce transportation costs, save energy, and protect the environment.

Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling


Working Principle of Die Electric Transfer Vehicle


The die electric transfer vehicle is powered by storage battery. The battery is installed in the mold transport flat rail car and we also equip intelligent charger for it. The transfer vehicle is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.

Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling


Advantages of Die Electric Transfer Vehicle

1. Can Running on The Curved Rail: The turning mode of the electric transfer vehicle adopts a mechanical type, and the turning of the flat rail car is controlled by the gap of speed.

2. Remote Operation, Safe and Reliable: The transfer vehicle adopts wireless remote control with a control distance of 400m to meet remote operation and high safety factor.
3. Higher Safety Load Factor: The electric transfer vehicle adopts the box girder structure and the safety factor of the vehicle can be reach to 1.5.
4. Long Service Lifetime: The battery adopts maintenance free powered, the table of vehicle is not easy deformation in 20 years.

Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling

Application of Die Electric Transfer Vehicle


This kind of 20 t coil handling car is commonly applied in steel, stainless steel factory or warehouse to transfer steel coil, steel plate, steel workpiecs, machine parts, etc.
Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling

Technical Parameter of Die Electric Transfer Vehicle

Model

KPX-20T

Rated Load(t)

20t

Impacted rated load(t)

15

structure of frame

steel plates welded beam structure

Thickness of the steel plate

12

Cart weight(t)

6

Wheel load(t)

5.4

Ground requirement

cement ground

Table size(mm)

3600x2000

Height of the whole cart(mm)

530

Space from the ground(mm)

50

Wheels distance

1500

Axles distance

3100

Control method for turning

control button

Turning structure

mechanical

Wheel diameter

Ф300/4

Wheel quality

cast wheels

Running speed(m/min)

0-15

Brake principle

electric magnetic force

Operation method

with wire or no wire

Charger motor's installation

installed on cart

Function of charger motor

automatic charging

Warning equipment

sound and light


Manufacturing of Die Electric Transfer Vehicle


Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling

Delivery of Die Electric Transfer Vehicle


Die Electric Transfer Vehicle Mold Transport Flat Rail Car for Workshop Material Handling
Our sale performance

No.

Exported countries

Product name

Product model

Quantity

Unit

1

Thailand

Rail transfer cart

KPDZ-16T

2

sets

2

Germany

Battery power transfer car

KPX-10T

2

sets

3

Syria

Battery power transfer car

KPX-120T

1

set

4

Syria

Battery power transfer car

KPX-30T

1

set

5

Turkey

Battery power transfer car

KPX-40T

3

sets

6

South Africa

Battery power transfer car

KPX-6T

2

sets

7

Nepal

Battery power transfer car

KPX-6T

2

sets

8

Singapore

Cable power transfer car

KPJ-15T

1

set

9

Singapore

Cable power transfer car

KPJ-10T

1

set

10

Singapore

Towed transfer car

KP-15T

1

set

11

Mongolia

Cable power transfer car

KPJ-30T

2

sets

12

Saudia Arabia

Cable power transfer car

KPX-60T

2

sets

13

Austrilia

Battery power transfer car

KPX-60T

1

set

14

Singapore

Hoist trolley

HB-4T

1

set

15

Singapore

Hoist trolley

HB-15T

2

sets

16

India

Battery power transfer car

KPX-20T

1

set

17

Singapore

Electric turntable

2

sets

18

Mexico

cable power transfer car

KPJ-60T

1

set

19

Turkey

cable power transfer car

KPJ-10T

1

set

20

Saudia Arabia

Busbar powered transfer car

KPC-10T

1

set

In order to protect clients' information, client's company names keep secret
