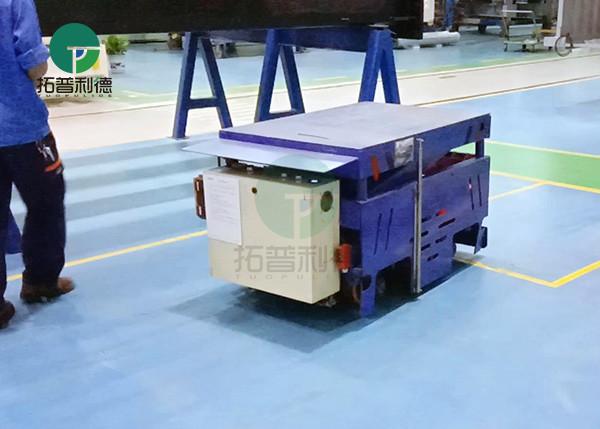

Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Specifications
Brand Name :
topleader
Model Number :
BWP-Trackless Transfer Cart
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
US$20000/set
Supply Ability :
300 SET/MONTH
Delivery Time :
45 DAYS OR SO
Packaging Details :
The whole Die Electric Transfer Cart is packed by tarp, the parts are packed by the wooden case.
Item :
Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
Key Words :
Die Electric Transfer Cart
Load Capacity :
1-500 Ton
Table size :
Customized
Speed :
0-30m/min
Size :
Customized
Application :
machinery parts plant
Delivery time :
45 days
Cargo transported :
Die, mold, steel pipe, molten ladle
Description

Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated

Brief Introduction --- Die Electric Transfer Cart

The Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated is powered by battery, driven by motor and gear reducer, the rubber wheel can run the common ground directly, which has no limited running distance, rubber wheel can reduce the damage of ground. 360° in-place turn for more narrow space operation, 360° no corner protection, dead man stop and so on to protect the safety. Touch screen, rocker...which make the design more humanization.

Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated

Working Principle --- Die Electric Transfer Cart

The battery is installed in the electric transfer cart. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the electric transfer cart to start, stop, go forward, backward, adjust the speed and so on.

Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated

Product Features --- Die Electric Transfer Cart

1. 360 Degree Cornerless Turn

The turning mode of the die electric transfer cart adopts a mechanical type, and the turning of the truck is controlled by the gap of speed.

2. Remote Operation

The electric transfer cart adopts wireless remote control with a control distance of 400m to meet remote operation and high safety factor.

3. Higher Safety Load Factor

The die electric transfer cart adopts the box girder structure. The wheel adopts the car processing, heat treatment, and the safety factor of the transfer truck can be reach to 1.5.

4. Long Lifetime

The battery adopts maintenance free powered, the table of transfer cart is not easy deformation in 20 years.

Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated

Parameter List --- Die Electric Transfer Cart

Model
 BWP-2T BWP-10T BWP-20T BWP-30T BWP-50T BWP-80T BWP-100T
Rated load (T) 2 10 20 30 50 80 100
Table size length(L) 2000 2300 2400 3500 5500 6500 6600
Width(W) 1500 2000 2200 2200 2600 2800 3000
Height(H) 450 500 600 700 800 950 1200
Wheel Base (mm) 1080 1650 2800 1650 2000 1950 2000
Axle Base (mm) 1380 1850 1435 2700 2850 3500 4000
Wheel Diameter(mm) Φ250 Φ400 Φ350 Φ450 Φ600 Φ600 Φ600
Wheel Quantity(Nos) 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (m/min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 2*1.2 2*2.2 2*4.5 2*5.5 2*7.5 30 40
Battery Capacity(Ah) 250 250 400 450 500 800 1000
Battery Voltage(V) 24 48 48 48 72 72 72
Running Time When Full Load 2.5 2.8 2.2 2 2.5 2 1.9
Running Distance for one Charge(Km) 3 3.4 2.7 2.4 3 32.4 2.3
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 185 190
Reference Weight (t) 2.3 4.2 5.9 6.8 8 14.6 26.8

Application --- Die Electric Transfer Cart

This series die electric transfer cart can be widely applied in many fields, such as automobile, steel factory, heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical industry, engineering, aerospace, coal, nuclear energy, shipyard, water conservancy, etc.

Rail or Steerable Die Electric Transfer Cart Motorized Platform Trolley Battery Operated
