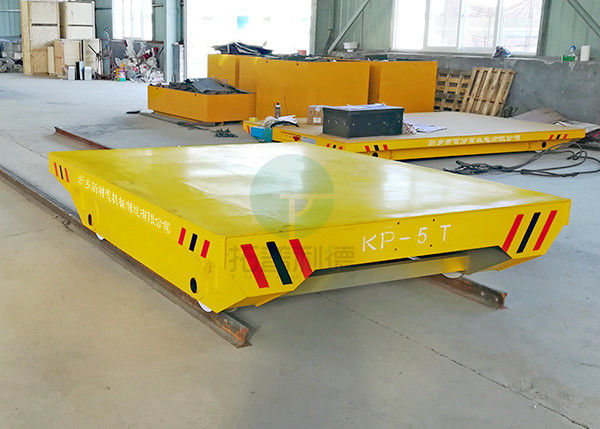

Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Specifications
Brand Name :
topleader
Model Number :
KP
Certification :
CE,SGS,SASO
Place of Origin :
Xinxiang, China
MOQ :
1 set
Price :
US$4000/ SET
Supply Ability :
500 SET/YEAR
Delivery Time :
45 Working days
Packaging Details :
The Heavy Duty Rail Flatbed Carts are packed by tarp and the accessories are packed by wooden case.
Key Words :
Heavy Duty Rail Flatbed Carts
Type :
On Cement/On Rail
Model :
BWT
Power :
No Power
Table size :
Custom
Load :
1-500 Ton
Color :
Customized
Product Name :
Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Description

Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle

Product Description --- Heavy Duty Rail Flatbed Carts

The the Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle have no power system. It is towed behind forklift or other powered equipmentss. We designed different wheels in order to let this kind of rail flatbed carts can running on rails or ground directly, it with the advantages of low cost, free turning radius, large capacity, and so on.

Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle

Parts Show --- Heavy Duty Rail Flatbed Carts

Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle
Cast Wheel Towing Bar or Towing Hook

The wheel adopts the crane special wheel, the wheel uses ZG55, the whole quenching, the wheel tread and the wheel rim inner hardness hb320-380, the depth 20mm, after the wheel is assembled, the rotation is flexible.It has the features of high strength and long wearing life. It applied in the flatbed carts on rail.
It can be connected by other engine, such as tractor, forklift, winch, rail trailer.

Parameter List --- Heavy Duty Rail Flatbed Carts

Rated Load(Ton) 2 5 10 15 20 25 30 40 50
Table Size(mm) Length 2000 2200 2300 2400 2400 3500 3500 5500 6600
Width 1500 2000 2000 2100 2200 2200 2200 2500 2600
Height 450 500 550 600 600 700 700 800 1200
Wheel Base(mm) 1080 1650 1650 1600 1650 1650 1650 2000 2000
Axle Base(mm) 1380 1680 1700 1830 1850 2700 2700 3600 2850
Wheel Quantity(Pcs) 4 4 4 4 4 4 4 4 4
Wheel Diameter(mm) Φ250 Φ300 Φ350 Φ400 Φ400 Φ450 Φ450 Φ500 Φ600
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174
Reference Wight(Ton) 2.3 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8
The size can be customized as per demands.

Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle

Custom Options --- Heavy Duty Rail Flatbed Carts

Flat decks or fixtures customized for specific loads.

Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.

Track or trackless, non-guided steering. Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.

Fixed or variable speeds with forward/reverse function.

Drives with acceleration/deceleration capabilities.

Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.

Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.

Towed Pallet Transfer Heavy Duty Rail Flatbed Carts Interbay Transfer Vehicle

Company Information

Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and handling equipment. Our products cover rail transfer car, steerable transfer car, trackless flat cart, towed transfer cart, bay to bay rail transfer cart, rail wheel, industrial winch, etc.

Our products have a wide application field including metallurgy industry, machinery manufacturing industry, steel mill, mine industry, power industry, mold industry, automobile assembly industry, shipyard industry etc. Our products have been exported to more than 50 Countries and regions, such as USA, Canada, Mexico, Germany, Netherlands, Vietnam, Thailand, Philippines, Saudi Arabia, South Africa etc.
