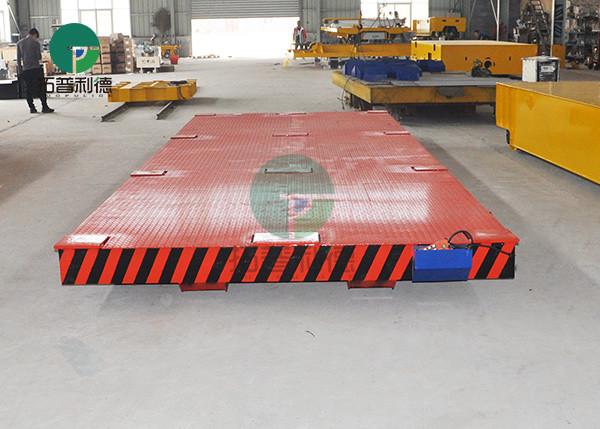

Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$15000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after receive your prepayment
Packaging Details :
The whole Mold Transport Flat Rail Vehicle will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track
Power supply :
Storage battery
Key Words :
Mold Transport Flat Rail Vehicle
Load capacity :
1-100T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track

Product Description for Mold Transport Flat Rail Vehicle

The Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track that is powered by a battery and driven by a motor. The electric power is an important energy source that is environmentally friendly, clean, and has a high conversion rate. The electric power is used to drive the vehicle. Renewal, promote low-carbon development of the transportation industry, reduce transportation costs, save energy, and protect the environment.

Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track


Working Principle of Mold Transport Flat Rail Vehicle


The mold transport flat rail vehicle steel pipe transfer trolley is powered by storage battery. The battery is installed in the transfer trolley and we also equip intelligent charger for it. The transfer trolley is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.

Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track


Advantages of Mold Transport Flat Rail Vehicle

The kind of flat rail vehicle is with high level automation

Excellent gear reducer and motor with high quality, assemblied together perfectly

Safe devices are installed in the mold transport flat rail vehicle

Remote control can be equipped together to operate the flat rail vheicle well

Customization can be supported for the mold transport flat rail vehicle

The rail vehicle is equipped with collision safety protection device and sound and light alarm system, fast response, and short braking distance with an electromagnetic brake. Tubeless polyurethane or rubber wheel can be choosed according to the bearing tonnage, no damage to floor coating.

Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track

Application of Mold Transport Flat Rail Vehicle


This kind of mold transport flat rail vehicle is commonly applied in steel, stainless steel factory or warehouse to transfer steel coil, steel plate, steel workpiecs, machine parts, etc.


Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track

Technical Parameter of Mold Transport Flat Rail Vehicle

Model

KPX-2T

KPX-5T

KPX-10T

KPX-20T

KPX-30T

KPX-50T

KPX-100T

KPX-150T

Rated load (T)

2

5

10

20

30

50

100

150

Table size(mm)

length

2000

3500

3600

4000

4500

5500

6500

10000

Width

1500

2000

2000

2200

2200

2500

2800

3000

Height

450

500

500

550

600

650

900

1200

Wheel Base (mm)

1200

2500

2600

2800

3200

4200

4900

7000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

2000

2000

Wheel Diameter(mm)

Φ280

Φ300

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity(Nos)

4

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

50

75

75

Motor Power (Kw)

1

1.2

1.6

2.2

3.5

5

10

15

Battery Capacity (Ah)

180

180

160

180

250

330

440

600

Battery Voltage (V)

24

36

48

48

48

48

72

72

Running speed (m/min)

0-30

0-30

0-25

0-25

0-25

0-20

0-20

0-18

Running Time When Full Load(Hours)

4.32

5.4

4.8

4

3.5

3.3

3.2

3.2

Running Distance for One Charge(Km)

6.5

8.1

7.2

4.8

4.2

4

3.8

3.2

Max Wheel Load (KN)

14.4

25.8

42.6

77.7

110.4

174

343.8

265.2

Reference Weight (t)

2.8

3.6

4.2

5.9

6.8

8

14.5

26.8

Recommended Rail Model

P15

P18

P18

P24

P38

P43

QU100

QU100

Manufacturing of Mold Transport Flat Rail Vehicle


Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track

Delivery of Mold Transport Flat Rail Vehicle


Custom Mold Transport Flat Rail Vehicle Steel Pipe Transfer Trolley on Track

Our sale performance

No.

Exported countries

Product name

Product model

Quantity

Unit

1

Thailand

Rail transfer cart

KPDZ-16T

2

sets

2

Germany

Battery power transfer car

KPX-10T

2

sets

3

Syria

Battery power transfer car

KPX-120T

1

set

4

Syria

Battery power transfer car

KPX-30T

1

set

5

Turkey

Battery power transfer car

KPX-40T

3

sets

6

South Africa

Battery power transfer car

KPX-6T

2

sets

7

Nepal

Battery power transfer car

KPX-6T

2

sets

8

Singapore

Cable power transfer car

KPJ-15T

1

set

9

Singapore

Cable power transfer car

KPJ-10T

1

set

10

Singapore

Towed transfer car

KP-15T

1

set

11

Mongolia

Cable power transfer car

KPJ-30T

2

sets

12

Saudia Arabia

Cable power transfer car

KPX-60T

2

sets

13

Austrilia

Battery power transfer car

KPX-60T

1

set

14

Singapore

Hoist trolley

HB-4T

1

set

15

Singapore

Hoist trolley

HB-15T

2

sets

16

India

Battery power transfer car

KPX-20T

1

set

17

Singapore

Electric turntable

2

sets

18

Mexico

cable power transfer car

KPJ-60T

1

set

19

Turkey

cable power transfer car

KPJ-10T

1

set

20

Saudia Arabia

Busbar powered transfer car

KPC-10T

1

set

In order to protect clients' information, client's company names keep secret
