25 Ton Factory Electric Driven Material Transfer Rail Guided Coil Handling Vehicle

Brief Introduction --- Coil Handling Vehicle

About the rail guided coil handling vehicle, it is powered by battery. It also can be powered by ohter power supply mode, such as low voltage tracks, cable reels, towed cable, busbar, etc.It can be customized according as per demands.

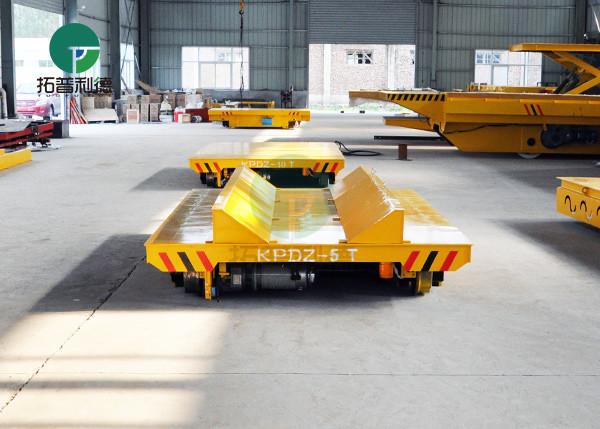

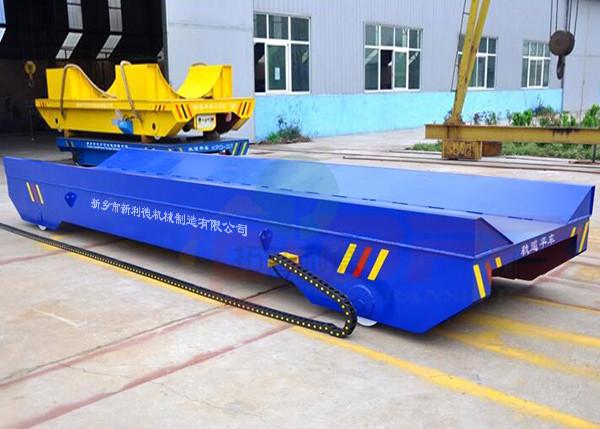

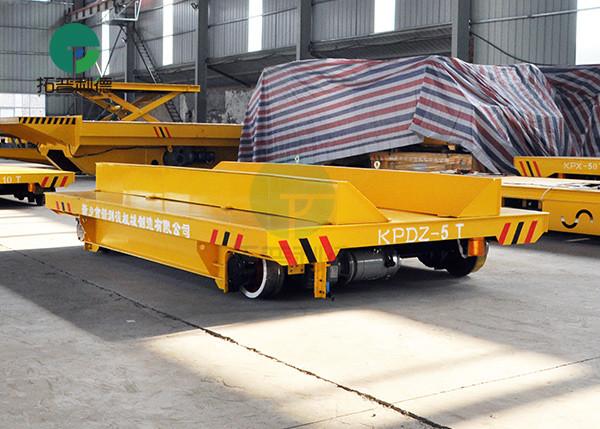

This kinds coil handling vehicle is designed for coils material handling, it equiped V or E frame on the transfer platform to avoid the materials roll down from the trailer.

It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

Product Details--- --- Coil Handling Vehicle

Maintenance Free Storage Battery	Battery Charger	Rail Cast Wheel
Compared the common one, this kinds battery needn’t be maintained once a regular time. And the life time is longer than the common.Besides, safe, effective, stable, environmental, are its feature.	For battery powered transfer vehicle, when the battery power is insufficient, to charge the battery. The charger adopts constant current and constant voltage charging + floating charging + balanced charging mode, which does not damage the battery and prolongs the battery life.	The wheel adopts the crane special wheel, the wheel uses ZG55, the whole quenching, the wheel tread and the wheel rim inner hardness hb320-380, the depth 20mm, after the wheel is assembled, the rotation is flexible.It has the features of high strength and long wearing life.

Product Funcation --- --- Coil Handling Vehicle

1. Load-Bearing Transport

Load-bearing transport is the most basic and important function of coil handling vehicle.

2. Turning

This series of coil handling vehicle have the function of running on S-shaped, C-shaped, curved rails, etc.

3. Lift

The hydraulic lift system can be installed on the coil handling vehicle to achieve lifting and other functions

4. Side Flip

The coil handling vehicle can realize self-discharging by the hydraulic device

5. Safety Devices

Safety devices can be installed on the transfer vehicle, for example, proximity switches, dead man stop, alarm systems, buffers to achieve the corresponding safety functions.

6. Others

Our company can research and develop the corresponding non-standard transfer vehicles to achieve the required functions according to the customers’ requirements.

Advantages --- --- Coil Handling Vehicle

The coil handling vehicle can run on the vertical rails, ”L”rails, “S”rails, arc-shaped rails...

The vehicle can be applied in many occasions, such as easy explosion, high temperature, ferry...

DC motor, stable start, starting torque, small impact to gear reducer, low voltage, long lifetime...

This kinds of coil handling vehicle is battery powered, so only charged fully, can it run freely without limited distance.

Professional team from Xinxiang New Leader Machinery Manufacturing Co., Ltd, the proper solution can be provided once getting for your inquiry.

The coil handling vehicles are customized as per your true demand.

Parameter List --- --- Coil Handling Vehicle

Application --- --- Coil Handling Vehicle

The coil handling vehicle is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
