Specifications
Brand Name :
topleader
Model Number :
BWP
Certification :
CE,ISO,SASO
Place of Origin :
China
MOQ :
1 set
Price :
US$4000-8000/set
Supply Ability :
300 SET/MONTH
Delivery Time :
30 DAYS
Packaging Details :
The whole Motorized Transfer Car Truck is packed by tarp, the parts are packed by the wooden case.
Item :
Workshop Bay To Bay Material Transport Mold Moving Electric Motorized Transfer Car Truck
Material :
Q235B steel
Load capacity :
1-300 Ton
Table size :
Customized
Speed :
0-20m/min
Motor :
2*2.2lw
Application :
industry
Delivery time :
45 days
Cargo transported :
heavy cargoes
Key Words :
Motorized Transfer Car Truck
Description

Workshop Bay To Bay Material Transport Mold Moving Electric Motorized Transfer Car Truck

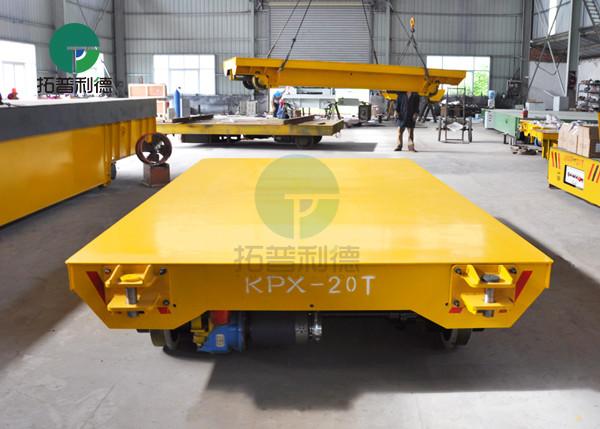

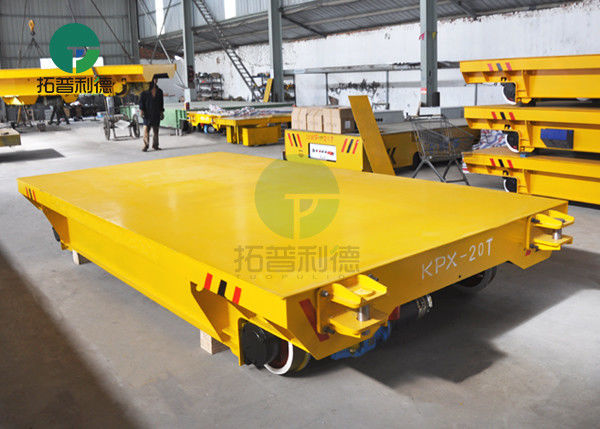

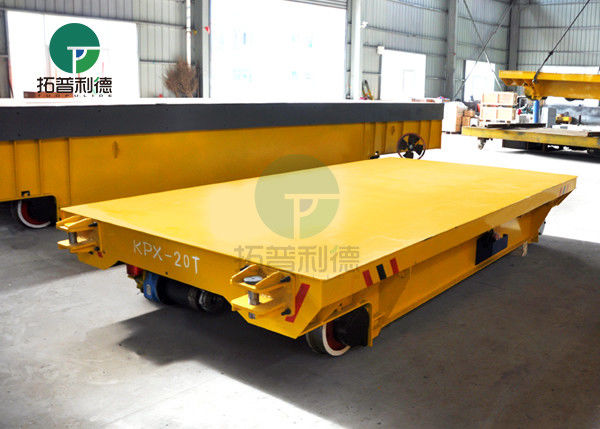

Brief Introduction of Electric Motorized Transfer Car

The Workshop Bay To Bay Material Transport Mold Moving Electric Motorized Transfer Car Truck consist of steel structure bearing frame, driving device, DC motor, storage battery, intelligent charger, fixed wheels, gear train, steering gear, running gear, electric control box and so on. The electirc motorized transfer car truck is a kind of trackless motorized transfer car.

The electric motorized transfer car is powered by storage battery. The battery is installed in the transfer car and we also equip intelligent charger for it. The transfer car is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller. It can turn around on the cement and concrete floor.

Workshop Bay To Bay Material Transport Mold Moving Electric Motorized Transfer Car Truck

Custom Options of Electric Motorized Transfer Car

Flat decks or fixtures customized for specific loads.

Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.

Track or trackless, non-guided steering. Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.

Fixed or variable speeds with forward/reverse function.

Drives with acceleration/deceleration capabilities.

Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.

Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.

Workshop Bay To Bay Material Transport Mold Moving Electric Motorized Transfer Car Truck

Application of Electric Motorized Transfer Car

Our reliable motorized transfer car truck not only can transport all kinds of molds in dies shop, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.

Workshop Bay To Bay Material Transport Mold Moving Electric Motorized Transfer Car Truck

Parameter of Electric Motorized Transfer Car

Model
 BWP-2T BWP-10T BWP-20T BWP-30T BWP-50T BWP-80T BWP-100T
Rated load (T) 2 10 20 30 50 80 100
Table size length(L) 2000 2300 2400 3500 5500 6500 6600
Width(W) 1500 2000 2200 2200 2600 2800 3000
Height(H) 450 500 600 700 800 950 1200
Wheel Base (mm) 1080 1650 2800 1650 2000 1950 2000
Axle Base (mm) 1380 1850 1435 2700 2850 3500 4000
Wheel Diameter(mm) Φ250 Φ400 Φ350 Φ450 Φ600 Φ600 Φ600
Wheel Quantity(Nos) 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (m/min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 2*1.2 2*2.2 2*4.5 2*5.5 2*7.5 30 40
Battery Capacity(Ah) 250 250 400 450 500 800 1000
Battery Voltage(V) 24 48 48 48 72 72 72
Running Time When Full Load 2.5 2.8 2.2 2 2.5 2 1.9
Running Distance for one Charge(Km) 3 3.4 2.7 2.4 3 32.4 2.3
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 185 190
Reference Weight (t) 2.3 4.2 5.9 6.8 8 14.6 26.8

Workshop Bay To Bay Material Transport Mold Moving Electric Motorized Transfer Car Truck

About Us

Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and handling equipment. We can produce 1-500 ton range of various tonnage of KPD rail low voltage series, KPJ cable reel series, KPC safety sliding line series, KPX battery powered series, BWP rubber wheel transfer cart series, KPT towed cable series, KP non-power type seven series which including turning electric flat car, trackless electric flat car, ladle car, ferry electric flat car, hydraulic lifting electric transfer car, electric winch, rail wheel and so on more than 90 products.
