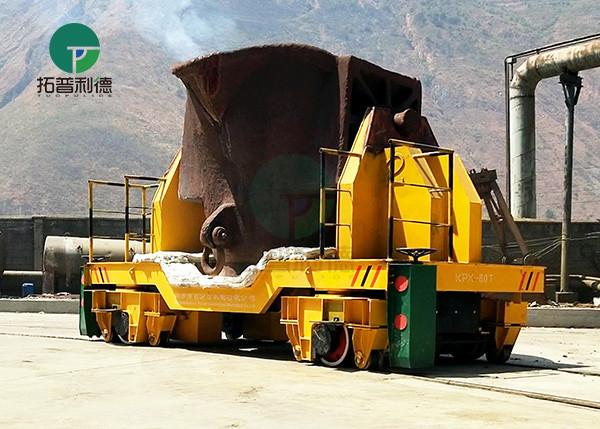

5-25 Ton Large Capacity Anti-Heat Hot Metal Ladle Car for Steel Making Plant

Brief Introduction --- Hot Metal Ladle Transfer Cart

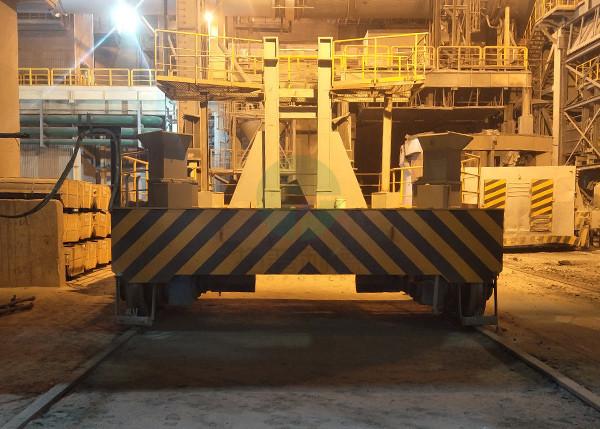

About the 5-25 Ton Large Capacity Anti-Heat Hot Metal Ladle Cart for Steel Making Plant, its special is designed for high temperature ladle transport in the steel manufacturing factory.

The batteries are installed in the hot metal ladle transfer cart. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the hot metal ladle transfer cart, for example, start, stop, go forward and backward, adjust the speed and so on.

It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

Product Details--- Hot Metal Ladle Transfer Cart

Cart Frame

The frame is a frame structure welded by two longitudinal beams, several cross beams and bench panels. Under the bench plate, all the steel plates are welded into meshes, so that the force on the frame is uniform. It can also be customized according as per demands.

Rail Wheel

The wheel adopts the crane special wheel, the wheel uses ZG55, the whole quenching, the wheel tread and the wheel rim inner hardness hb320-380, the depth 20mm, after the wheel is assembled, the rotation is flexible.It has the features of high strength and long wearing life.

Product Funcation --- Hot Metal Ladle Transfer Cart

1. Load-Bearing Transport

Load-bearing transport is the most basic and important function of hot metal ladle transfer cart.

2. Turning

This series of hot metal ladle transfer carthave the function of running on S-shaped, C-shaped, curved rails, etc.

3. Lift

The hydraulic lift system can be installed on the hot metal ladle transfer cart to achieve lifting and other functions

4. Side Flip

The hot metal ladle transfer cart can realize self-discharging by the hydraulic device

5. Safety Devices

Safety devices can be installed on the hot metal ladle transfer cart, for example, proximity switches, dead man stop, alarm systems, buffers to achieve the corresponding safety functions.

6. Others

Our company can research and develop the corresponding non-standard transfer carts to achieve the required functions according to the customers’ requirements.

Customized Options --- Hot Metal Ladle Transfer Cart

1. Load capacity, table size and rail gauge can be customized.

2. Remote radio control (imported or made in China)

3. Automatic stop when detecting obstacle or person, limit switches (to limit travel)

4. Battery type(free of maintenance battery, lithium battery, explosion-proof battery and anti-high temperature battery)

5. Motor(DC motor with brush and DC motor brushless)

6. Electrical parts can be optional (made in China or imported)

Parameter List --- Hot Metal Ladle Transfer Cart

Application --- Hot Metal Ladle Transfer Cart

The hot metal ladle transfer carts are mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
